Square D
Price
Save $822.52
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D BGA36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact 125A/BG frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 4.12 lb. The breaker is constructed with thermal-magnetic protection for long-time and instantaneous (LI) tripping functions and complies with UL 489, IEC 60947-2, CSA C22.2 No 5, and other international standards. Its I-Line style plug-in connection and aluminum mechanical lugs facilitate installation in industrial control panels and electrical distribution equipment, supporting wire sizes from 14 AWG to 2/0 AWG for copper or aluminum conductors within an operating temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: BGA Standard Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 15A

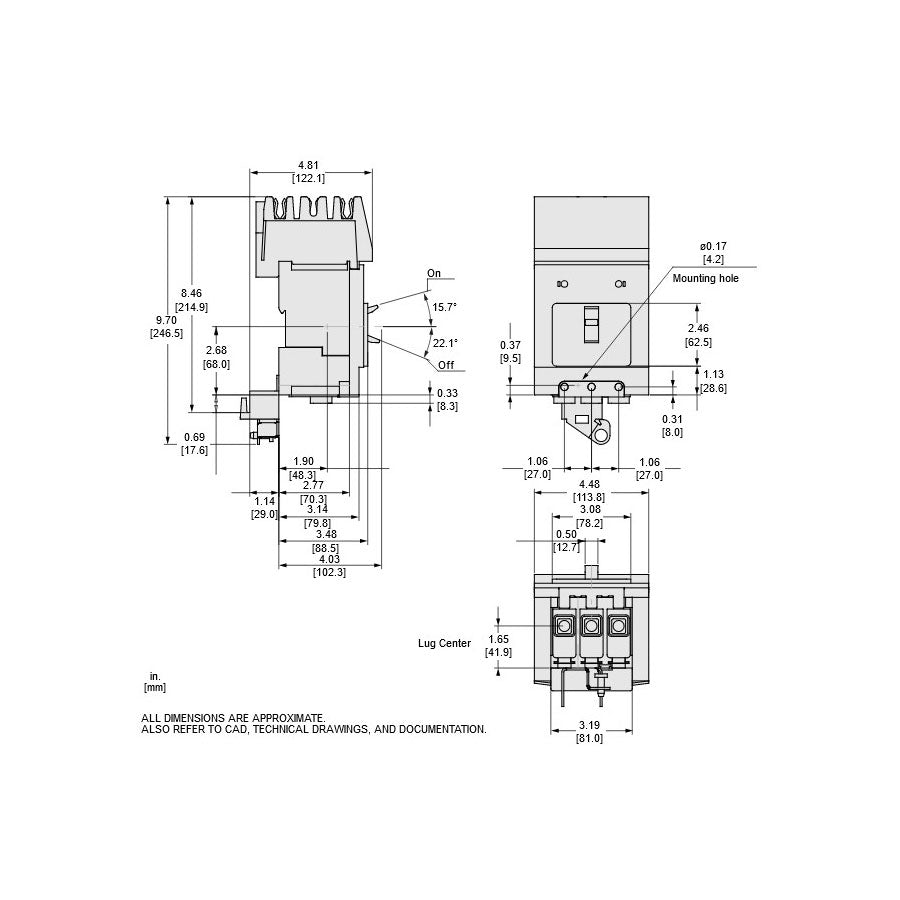

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.12 lb
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No 5, NMX J-266, NEMA AB1, GB 14048.2
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA at 480V
  • Connection: I-Line Style Plug-In, Al Mechanical Lug OFF End
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BG
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: 14 AWG to 2 AWG
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Phase Connection: ABC


Product Identification
  • UPC: 785901012276
  • GTIN: 03606481153654
