Siemens BG220 - Molded Case Circuit Breaker 20A 2-Pole (10kA AIC)
Siemens BG220 - Molded Case Circuit Breaker 20A 2-Pole (10kA AIC)

Siemens BG220 - Molded Case Circuit Breaker 20A 2-Pole (10kA AIC)

Siemens
Price
Save $223.13
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

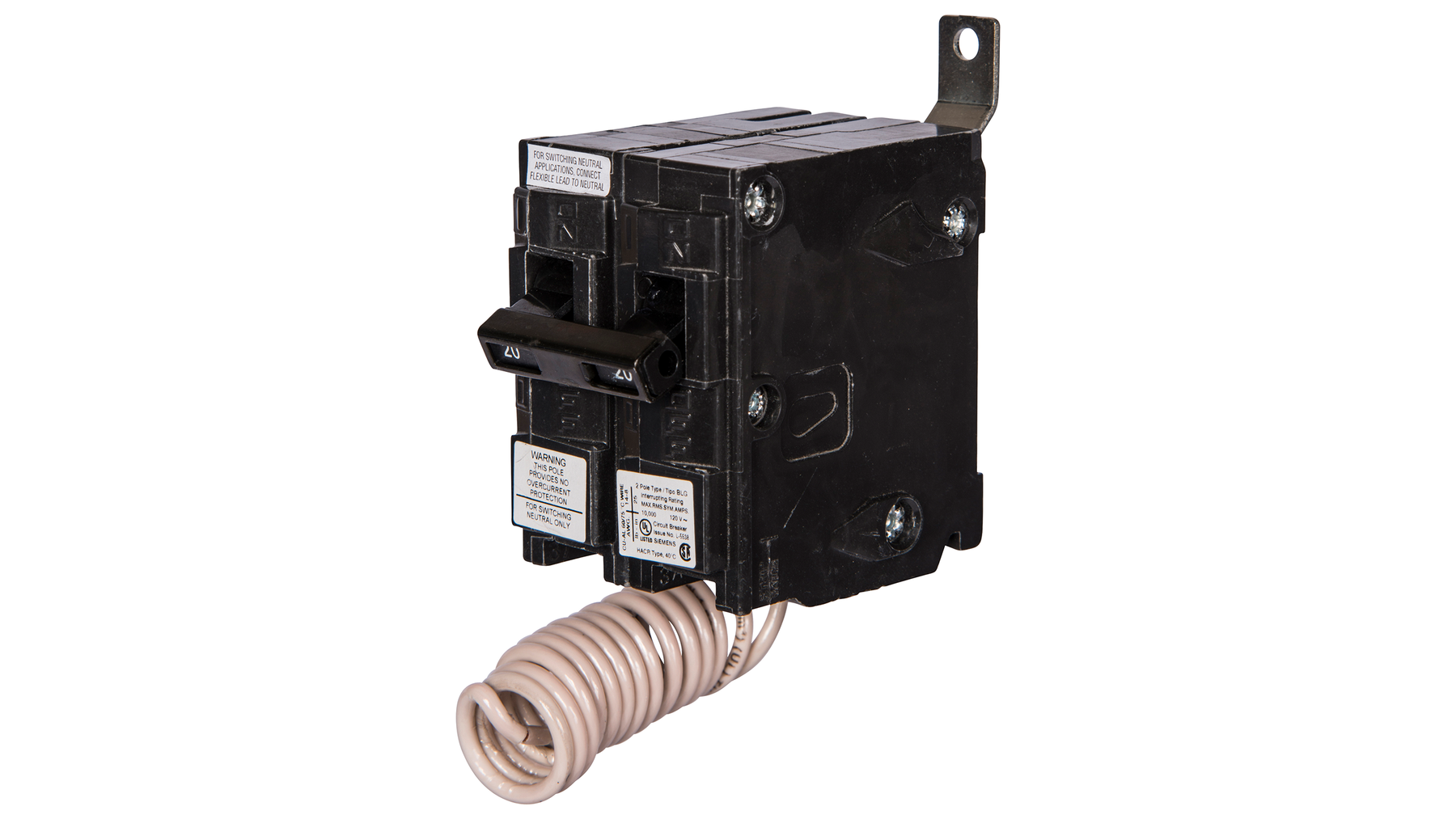

Siemens BG220 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in residential and light commercial electrical systems. It features a 20A current rating and a 120V AC voltage rating for single-phase applications, housed within a compact, bolt-on unit measuring 130 x 100 x 90 mm (5.118" x 3.937" x 3.543") and weighing 0.397 lb. The breaker utilizes a thermal-magnetic trip mechanism with Long-time and Instantaneous (LI) functions and offers an interrupting capacity of 10kA at 120V, ensuring compliance with UL standards for safety. Its operational temperature range of -25 to 70 °C (-13 to 158 °F) makes it suitable for protecting branch circuits in panelboards and load centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 130 x 100 x 90 mm (5.118" x 3.937" x 3.543")
  • Standards: UL Listed
  • Applications: Branch Circuit Protection in Residential/Light Commercial Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Amperage: 20A
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: BG Series
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Family: BL Series
  • Country of Origin: Mexico
  • Weight: 0.397 lb


Product Identification
  • UPC: 783643271197
  • GTIN: 00783643271197
