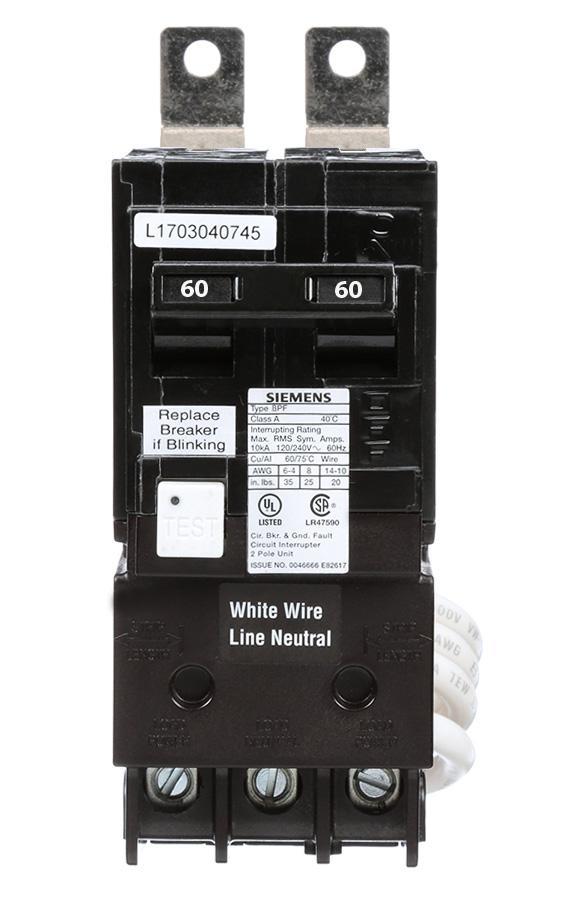

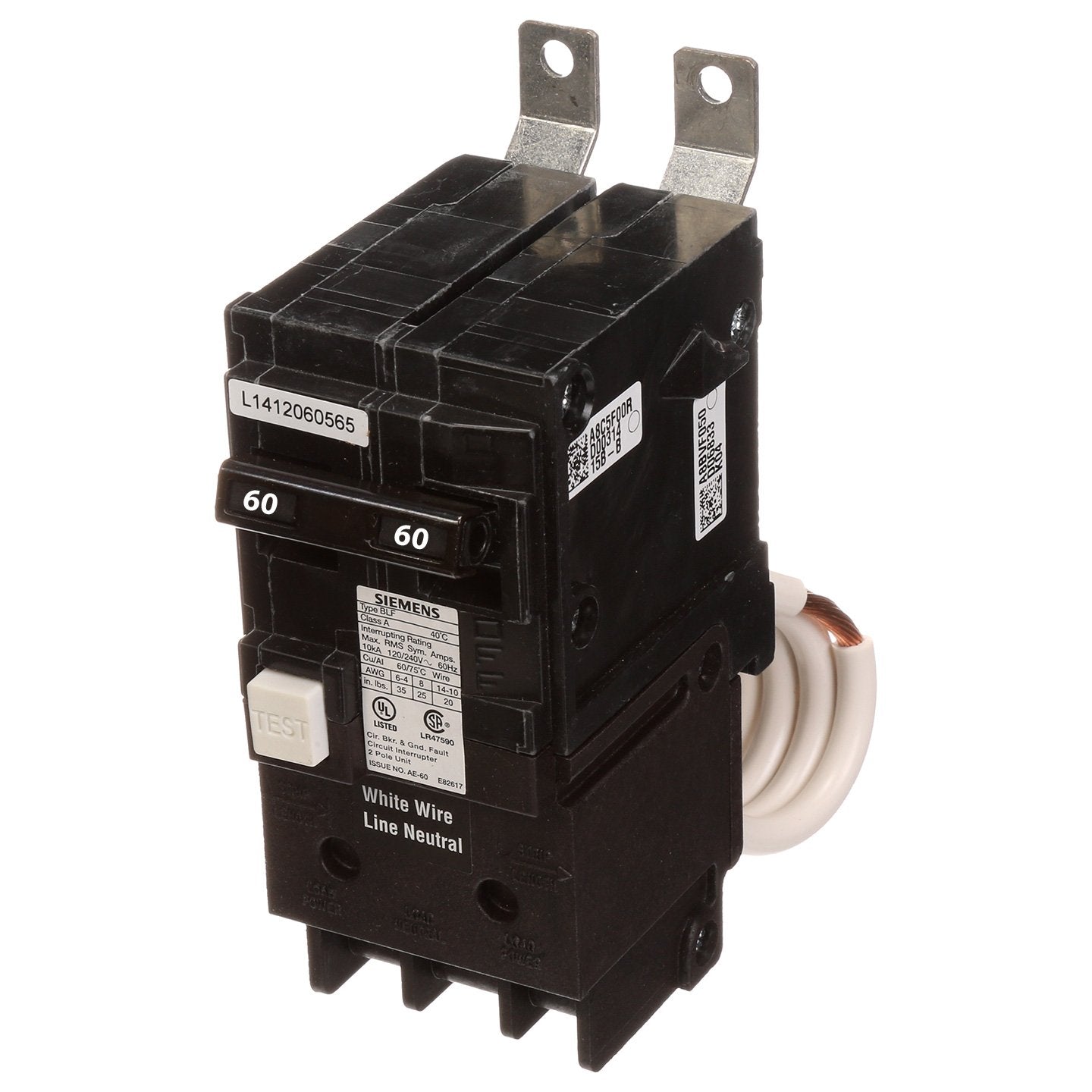

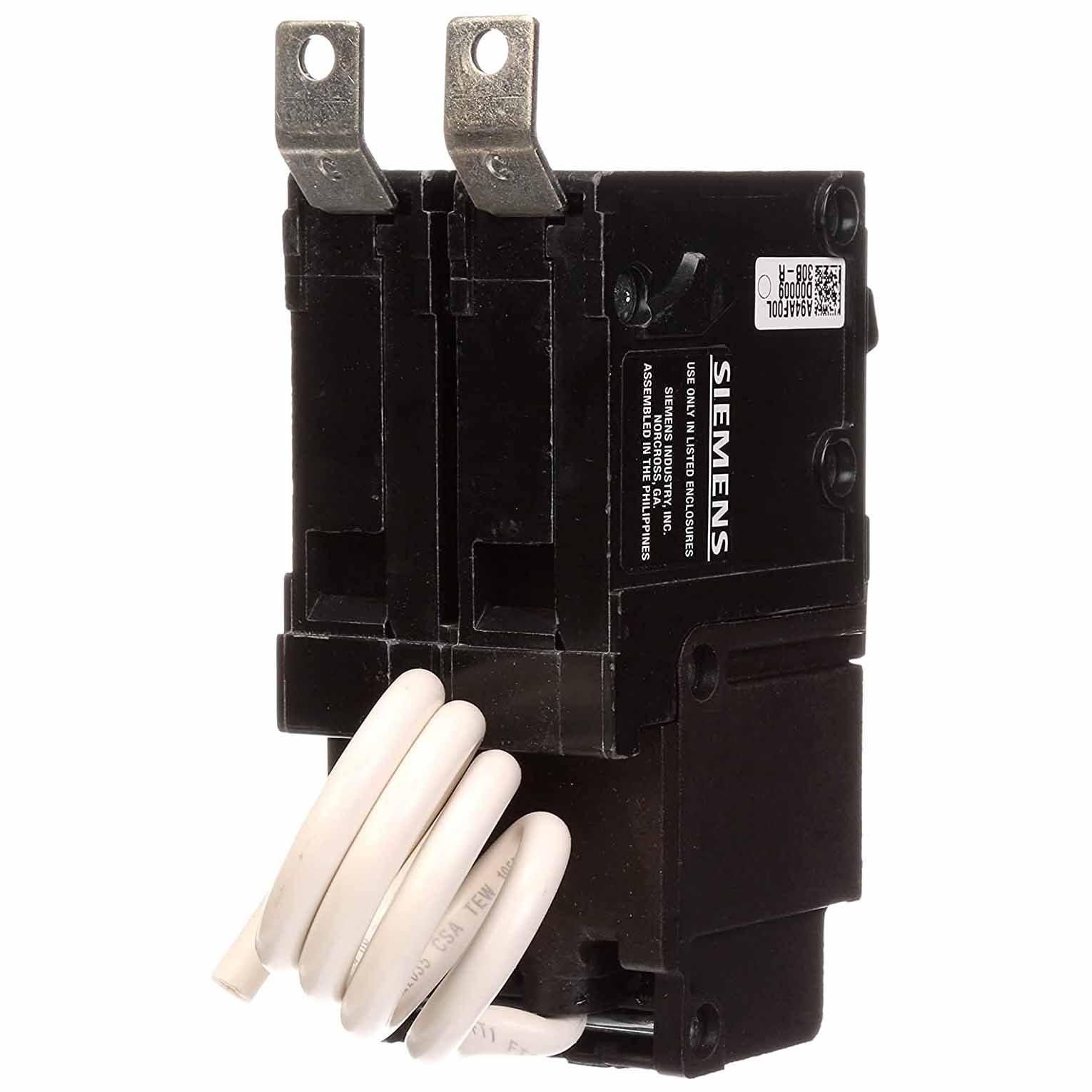

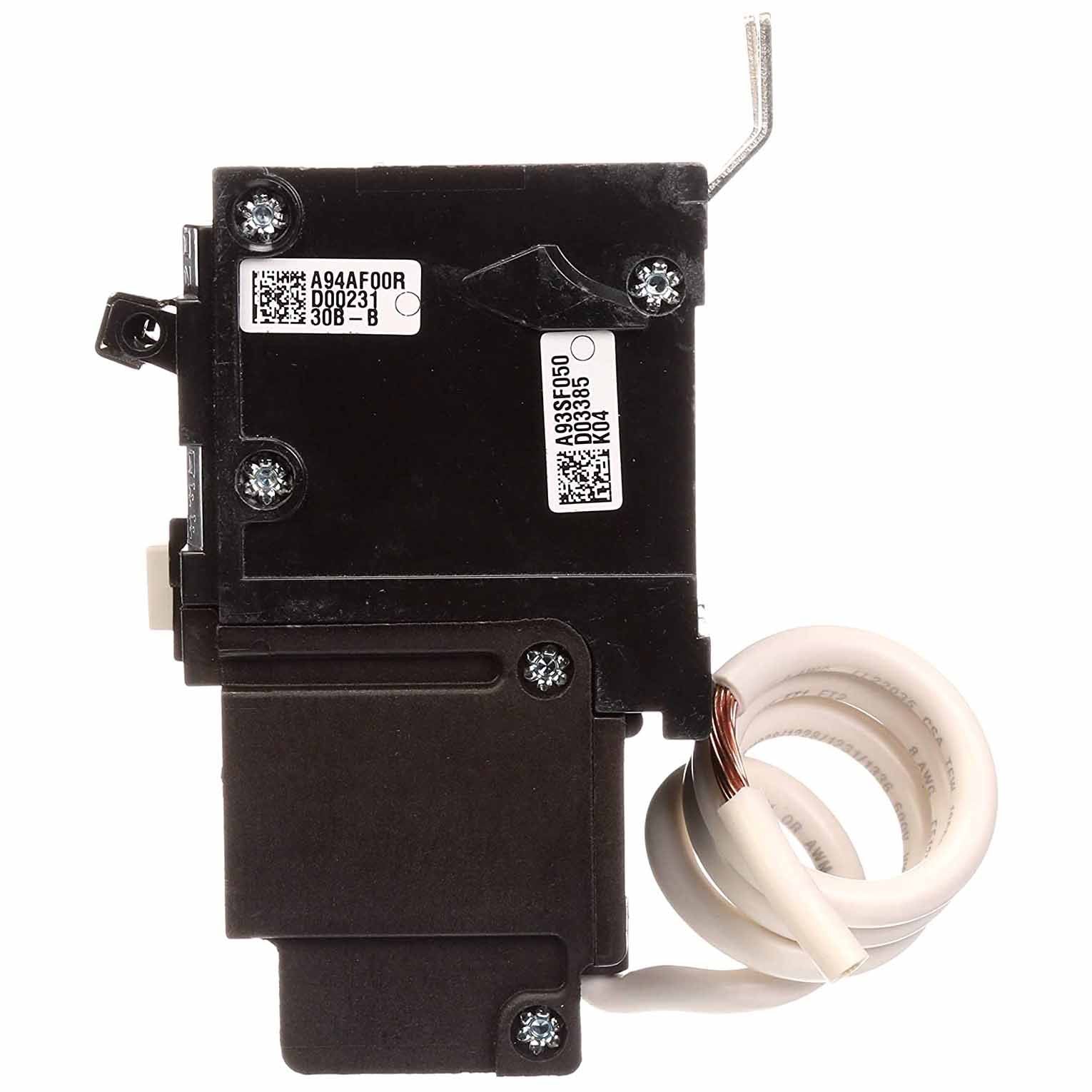

Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)
Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)
Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)
Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)
Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)
Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)
Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)
Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)

Siemens BF260A - GFCI Circuit Breaker 60A 2-Pole (10kA AIC)

Siemens
Price
Save $714.21
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BF260A is a molded case circuit breaker designed for providing reliable overcurrent and ground fault protection in single-phase electrical systems. It features a 60A current rating and a 120/240V voltage rating, housed within a compact, bolt-on frame measuring 7.874 x 1.969 x 2.756 inches and weighing 0.992 lb. This thermal magnetic breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens panelboards. Its Class A Ground Fault Circuit Interrupter (GFCI) functionality with 5mA sensitivity makes it suitable for applications requiring enhanced personnel protection against electrical shock.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLF Type, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) trip functions
  • Voltage Rating: 120/240V AC
  • Current Rating: 60A
  • Dimensions: 7.874 x 1.969 x 2.756 inches (200 x 50 x 70 mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Protection for Siemens Panelboards in single-phase systems
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • Amperage: 60A
  • AIC rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic, Ground Fault (Class A, 5mA)
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: 60A/BLHF
  • Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
  • Panel Type: Siemens Panelboards
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Weight: 0.992 lb
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed


Product Identification
  • UPC: 887621215477
  • GTIN: 00887621215477
