Siemens
Price
Save $541.04
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

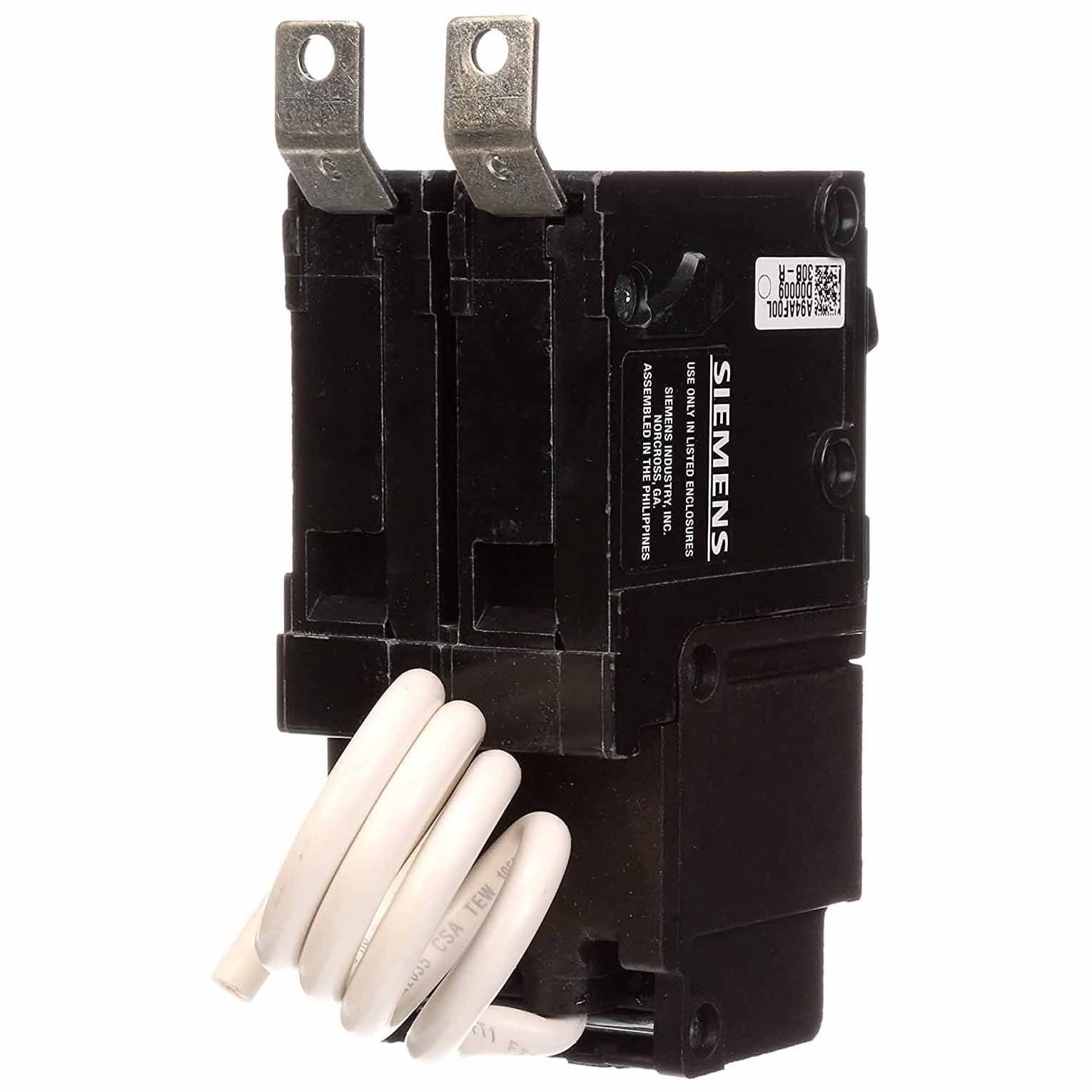

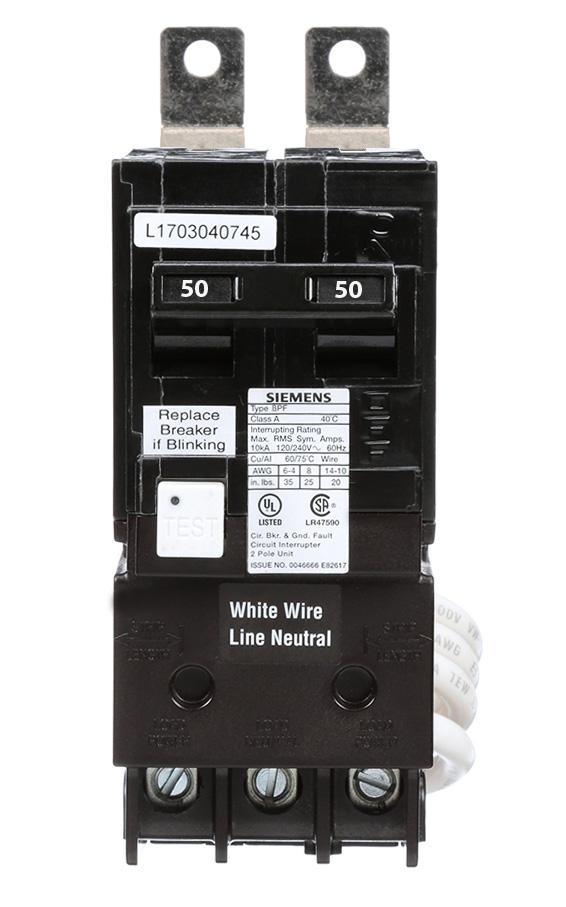

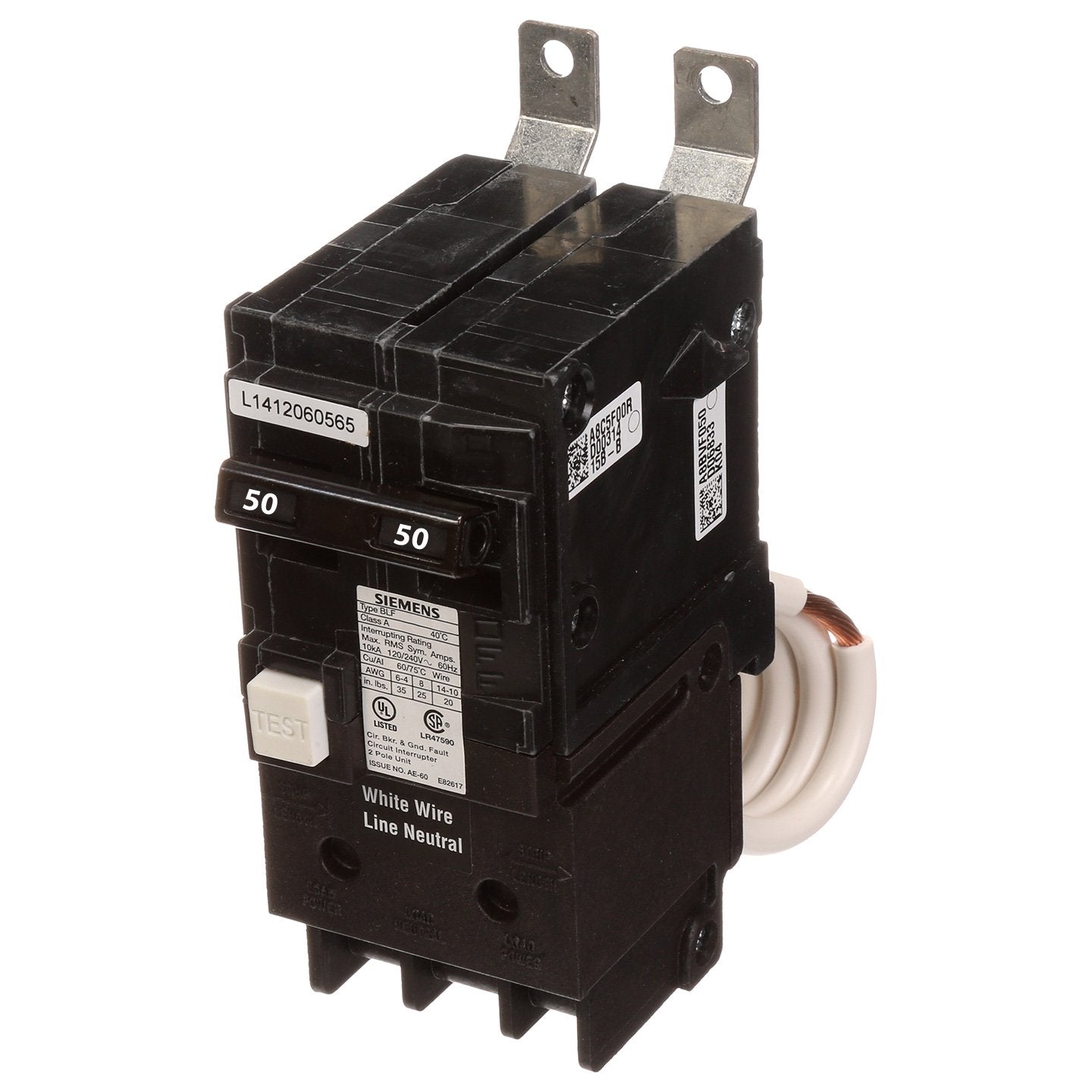

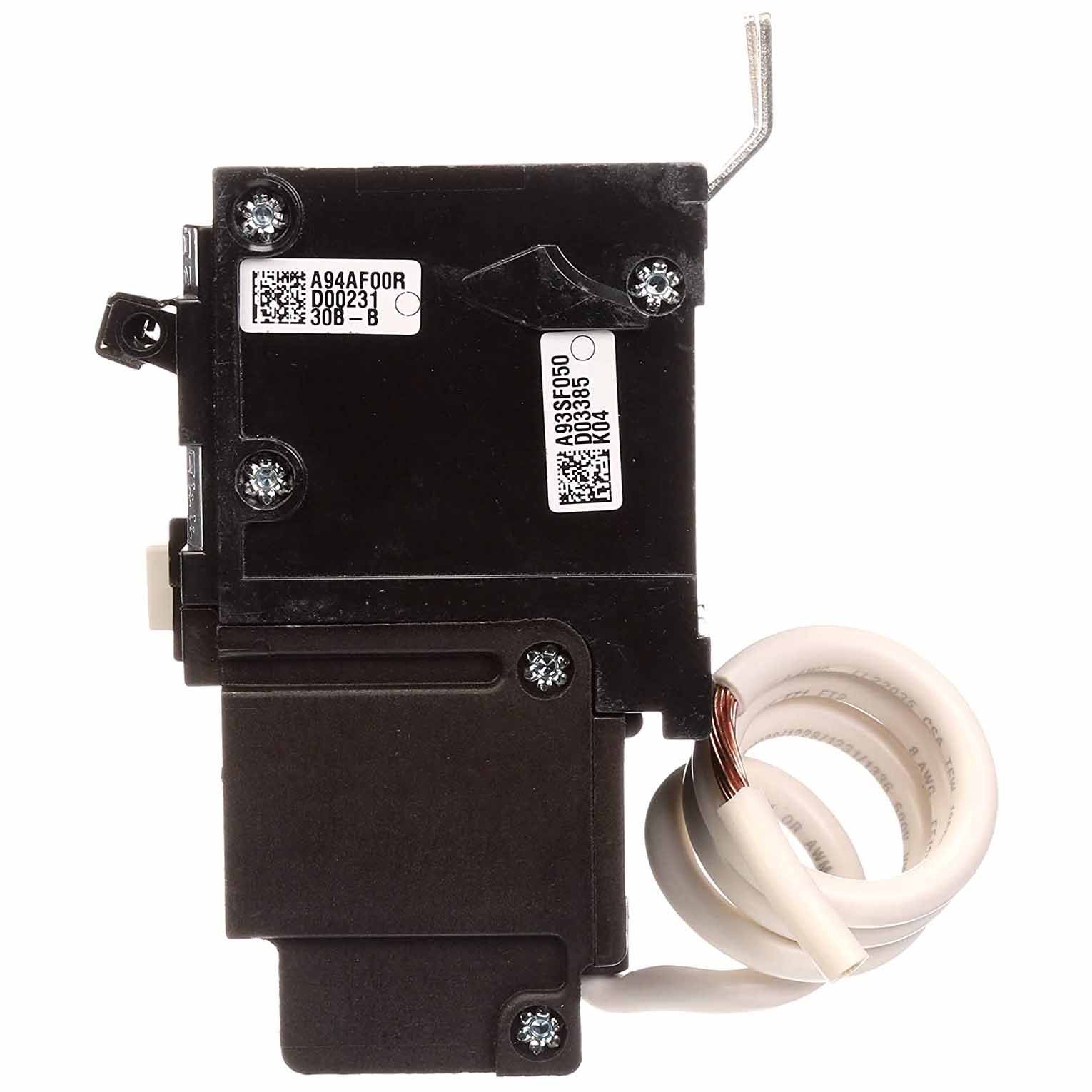

Siemens BF250A is a molded case circuit breaker designed for providing reliable ground fault and overload protection in single-phase electrical systems. It features a 50A current rating and a 120/240V voltage rating, housed within a compact, bolt-on design measuring 7.874 x 1.969 x 2.756 inches and weighing 0.992 lb. This thermal magnetic breaker with long-time and instantaneous trip functions is CSA, HACR, NOM, and UL listed, ensuring compliance with rigorous industry standards for safety and performance. It is engineered for integration into Siemens panelboards, offering 10kA interrupting capacity and Class A (5mA) ground fault protection for commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Ground Fault Circuit Interrupter (Class A - 5mA), Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 50A
  • Dimensions: 7.874 x 1.969 x 2.756 inch
  • Weight: 0.992 lb
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Commercial and Industrial Electrical Protection
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 60A/BLHF
  • Panel Type: Siemens Panelboards
  • Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
  • Terminal Connection: Lug
  • Wire Size: 8 AWG Min, 4 AWG (Al), 6 AWG (Cu) Max
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Family: BL Series
  • Country of Origin: Philippines


Product Identification
  • UPC: 887621215453
  • GTIN: 00887621215453
