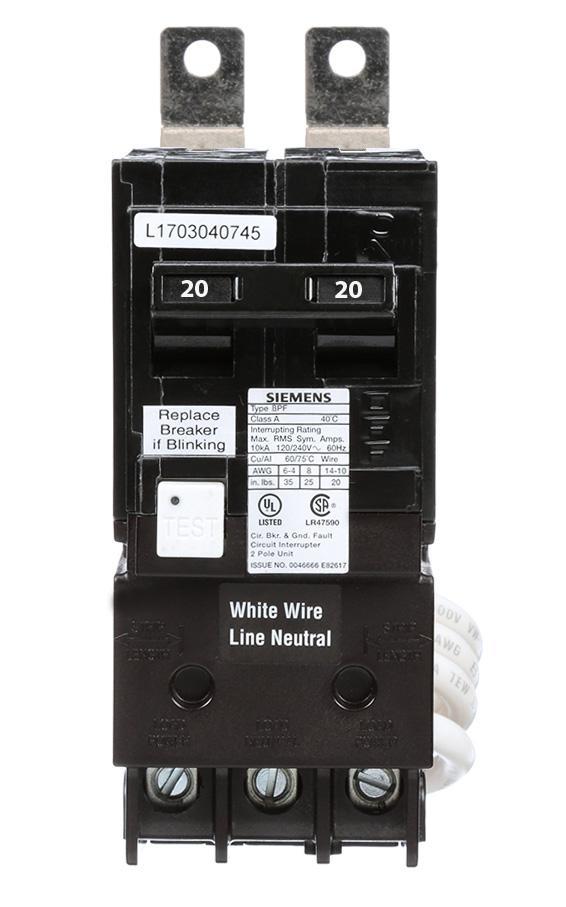

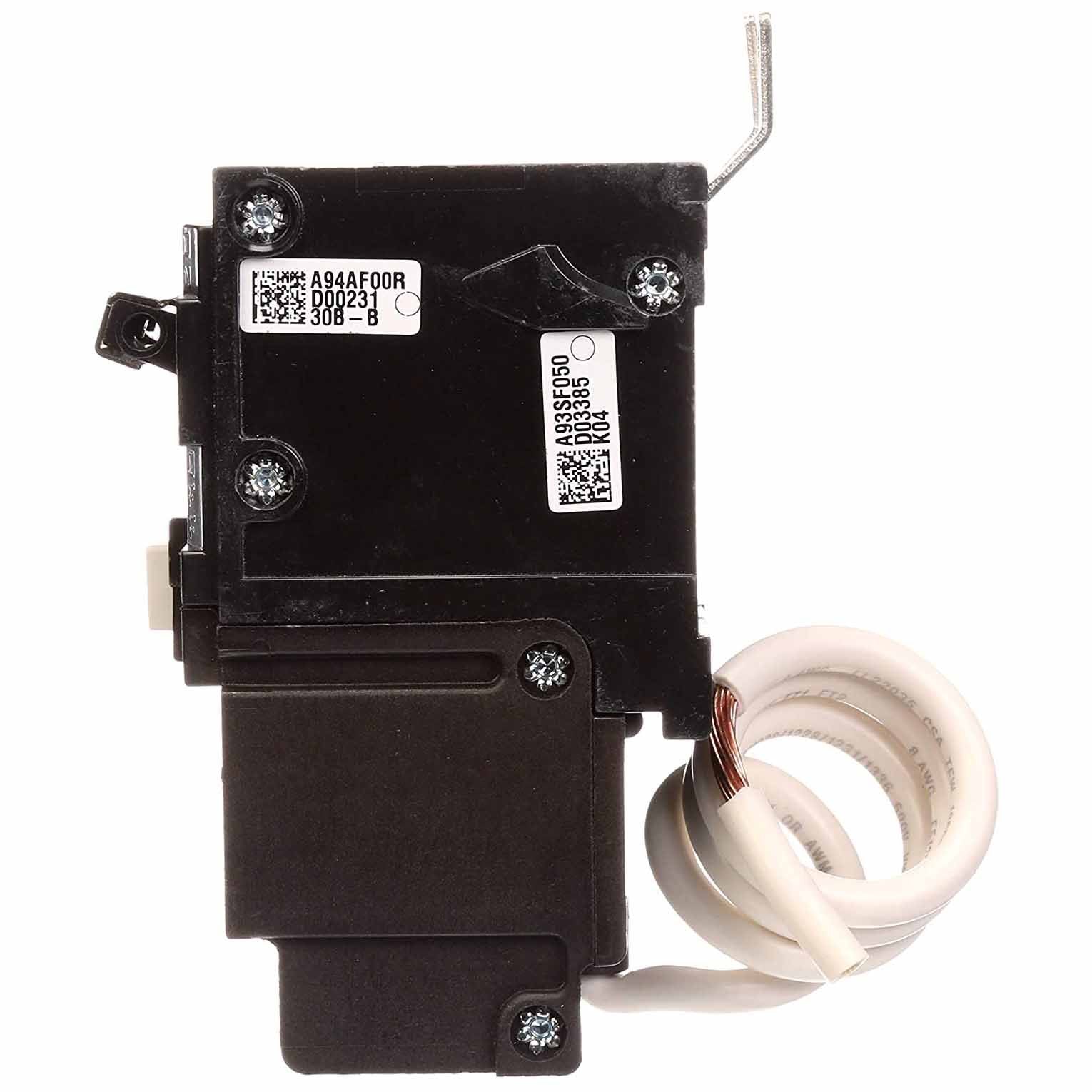

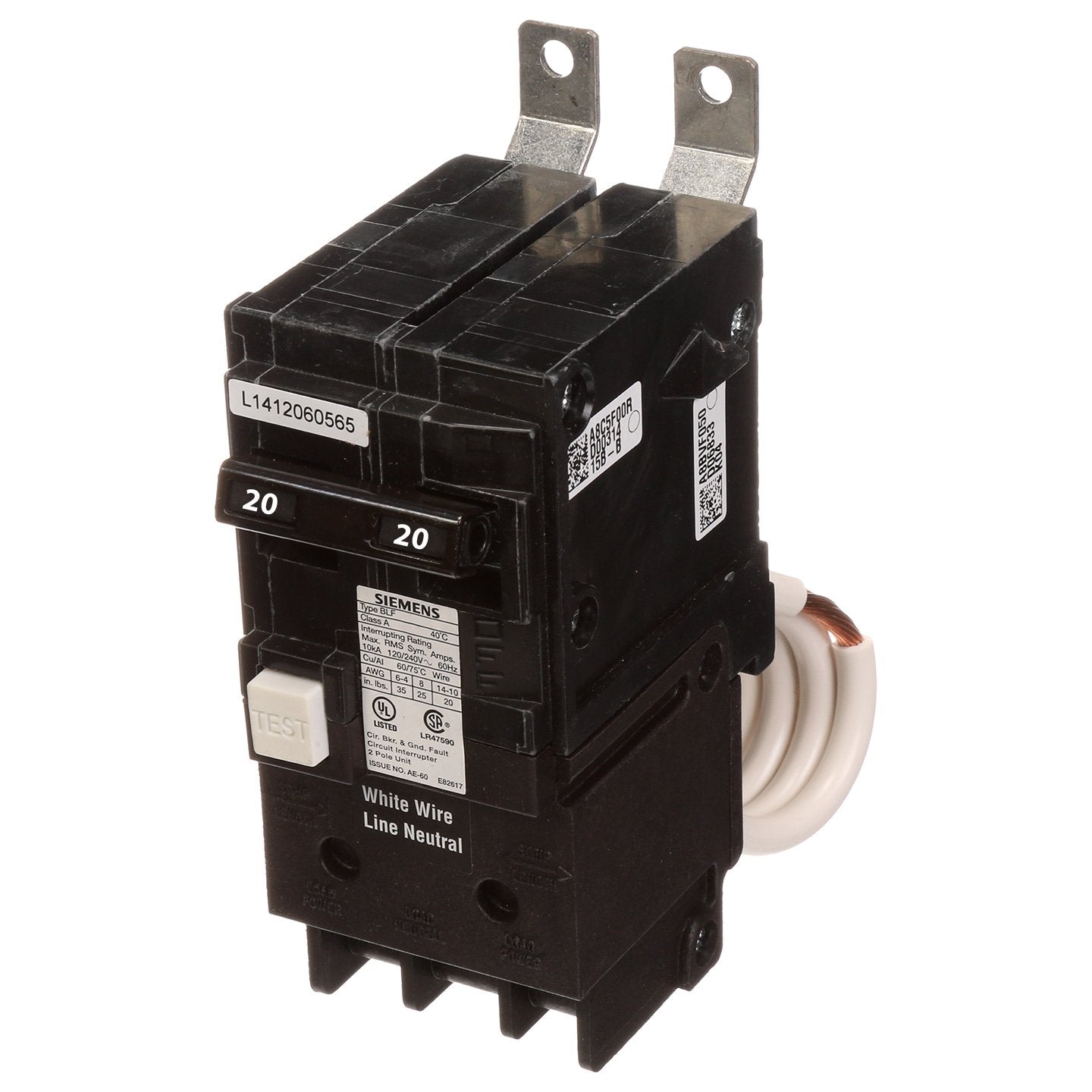

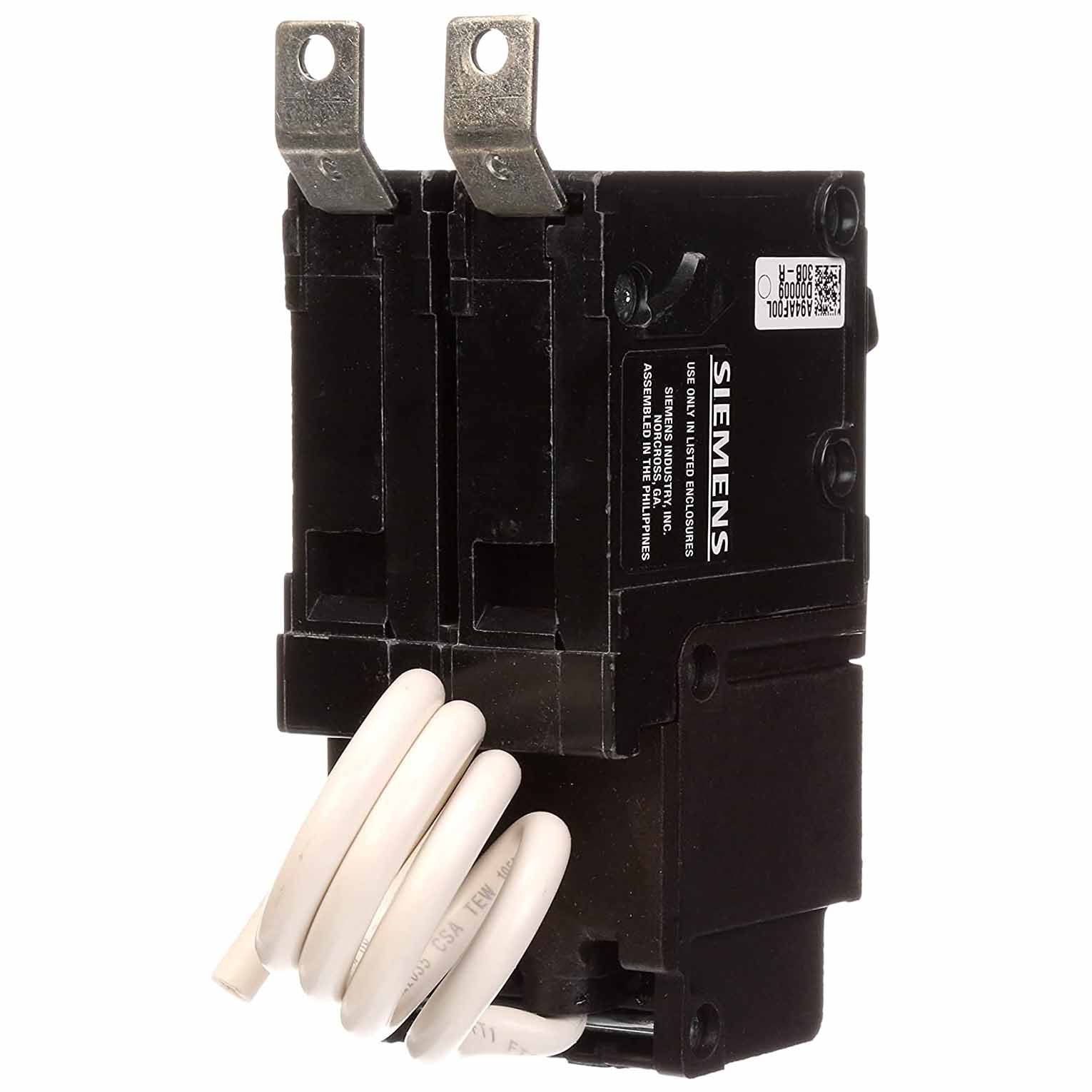

Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole
Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole
Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole
Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole
Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole
Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole
Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole
Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole

Siemens BF220A - GFCI Circuit Breaker 20A 2-Pole

Siemens
Price
Save $607.96
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Siemens BF220A is a molded case circuit breaker designed for providing ground fault and overload protection in residential and light commercial electrical systems. It operates at a voltage rating of 120/240V AC with a 20A current rating and features a compact, bolt-on design measuring 7.874 x 1.969 x 2.756 inches (200 x 50 x 70 mm) and weighing 0.992 lb. The breaker is constructed with a thermal-magnetic trip mechanism for reliable long-time and instantaneous protection and complies with key industry standards including UL, CSA, and NOM. Its Class A 5mA Ground Fault Circuit Interrupter (GFCI) functionality makes it suitable for installation in Siemens panelboards to protect branch circuits in environments requiring enhanced personnel safety.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLF Type, Thermal Magnetic Protection, Ground Fault Circuit Interrupter (Class A - 5mA)
  • Voltage Rating: 120/240V AC
  • Current Rating: 20A
  • Frame Size: 60A/BLHF
  • AIC Rating: 10kA @ 240V
  • Phase: 1
  • Poles: 2
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size / Wire Range: Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 10 AWG
  • Dimensions: 7.874 x 1.969 x 2.756 inch (200 x 50 x 70 mm)
  • Weight: 0.992 lb
  • Operating Temperature: -25 to 70 °C (-13 to 158 °F)
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens Panelboards
  • Family: BL Series
  • Country of Origin: Philippines


Product Identification
  • UPC: 887621215392
  • GTIN: 03606481153715
