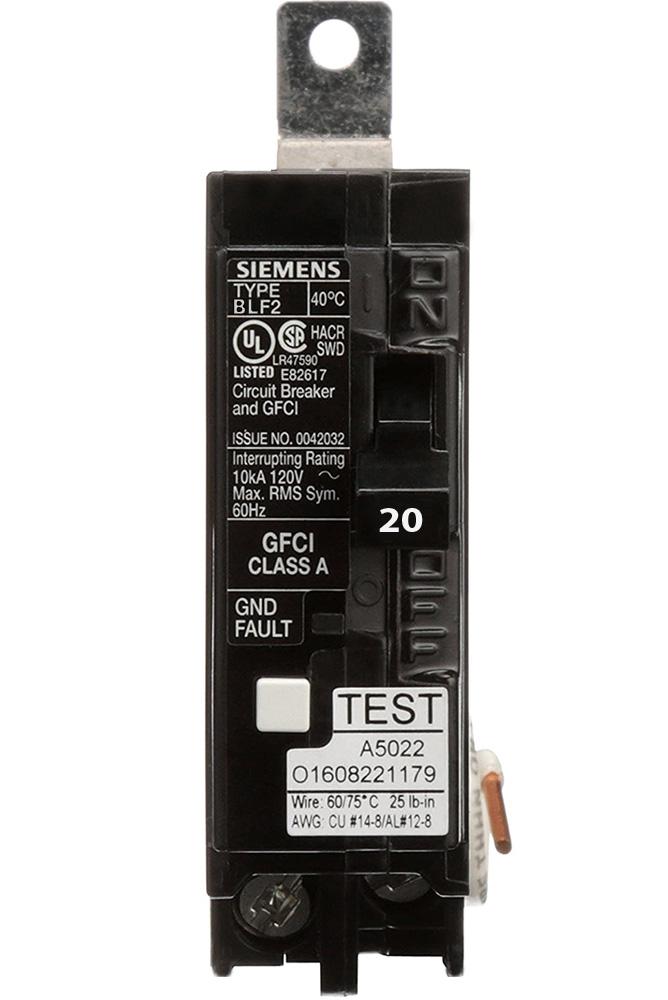

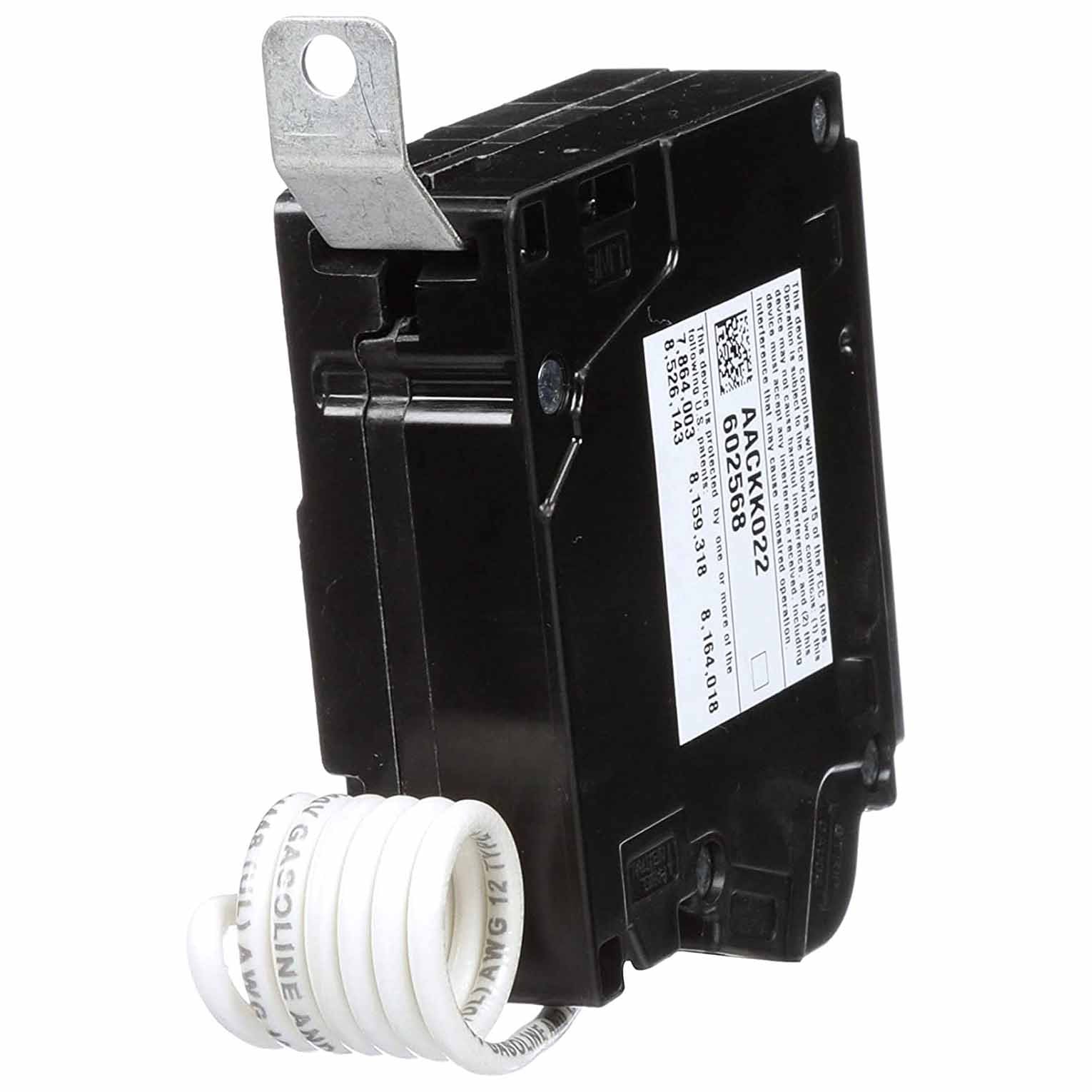

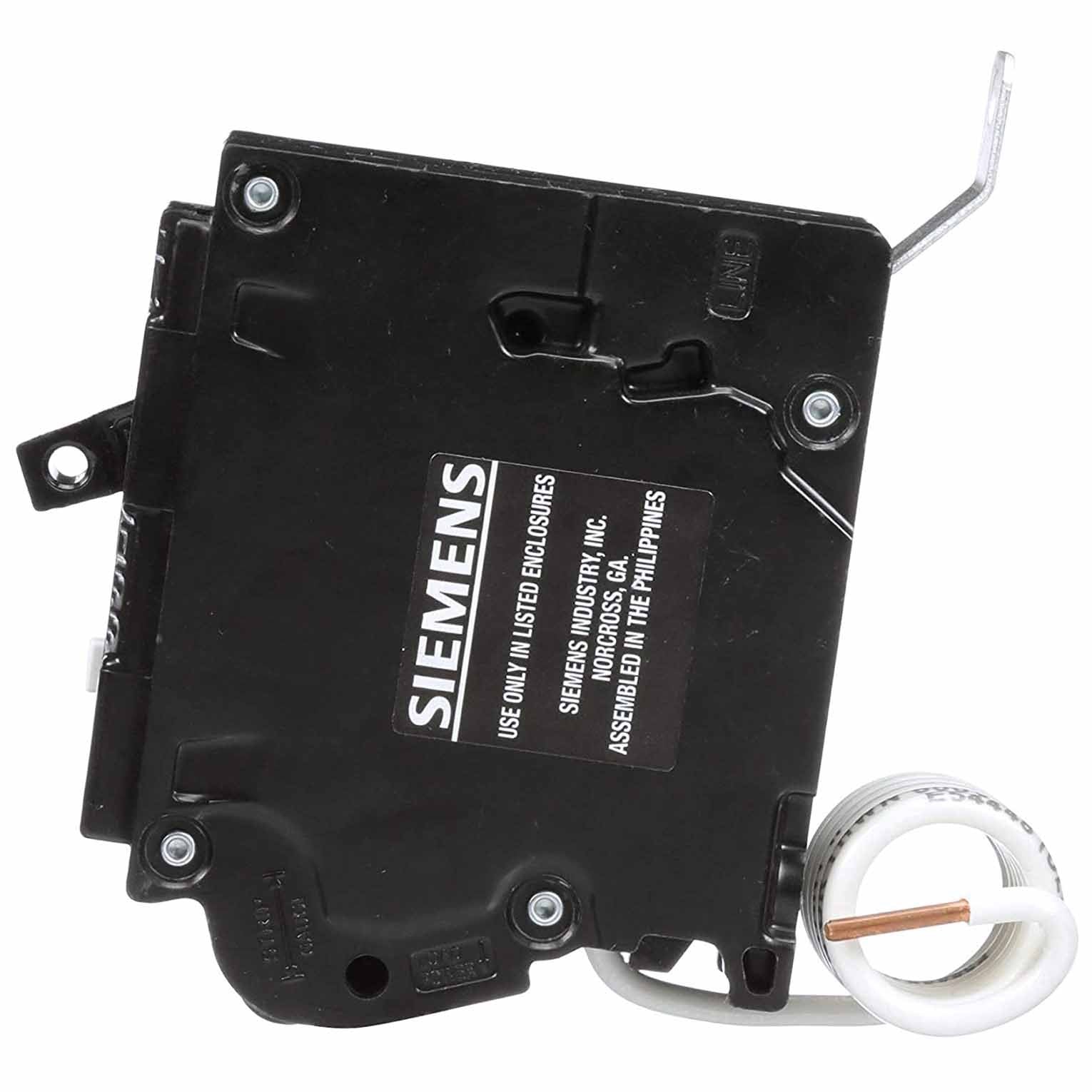

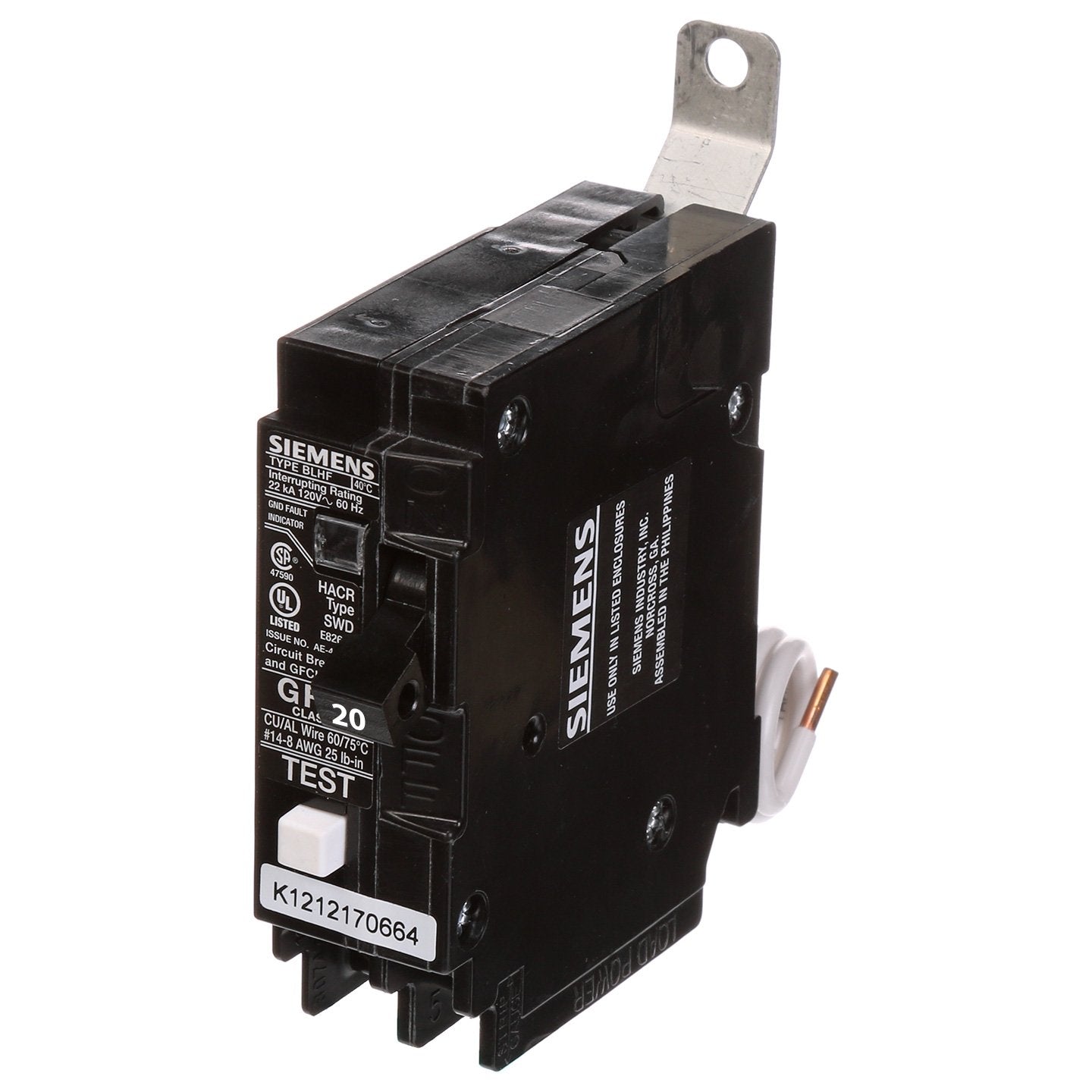

Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V
Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V
Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V
Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V
Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V
Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V
Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V
Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V

Siemens BF120A - GFCI Circuit Breaker 20A 1-Pole 120V

Siemens
Price
Save $679.77
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BF120A is a molded case circuit breaker designed for providing ground fault and overload protection in 120V AC single-phase systems. It features a 20A current rating and a 10kA interrupting capacity, housed within a compact 60A/BLHF frame with dimensions of 0.787 x 2.756 x 2.756 inches and a weight of 0.243 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is a Class A Ground Fault Circuit Interrupter (GFCI) with 5mA sensitivity. It is certified to UL, CSA, HACR, and NOM standards for use in Siemens panelboards, with bolt-on lug connections suitable for 14-10 AWG copper or 12-8 AWG aluminum wiring.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Type BLF2, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 0.787" H x 2.756" W x 2.756" D (20mm x 70mm x 70mm)
  • Weight: 0.243 lb (0.11 kg)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Ground fault protection in Siemens single-phase panelboards
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-on, Lug Terminal
  • Poles: 1
  • Protection: Ground Fault Circuit Interrupter (Class A, 5mA), Thermal-Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: 60A/BLHF
  • Breaker Type: Ground Fault Circuit Interrupter (GFCI)
  • Wire Size: 14 - 10 AWG (Copper), 12 - 8 AWG (Aluminum)
  • Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Panel Type: Siemens Panelboards


Product Identification
  • UPC: 887621215279
  • GTIN: 00887621215279
