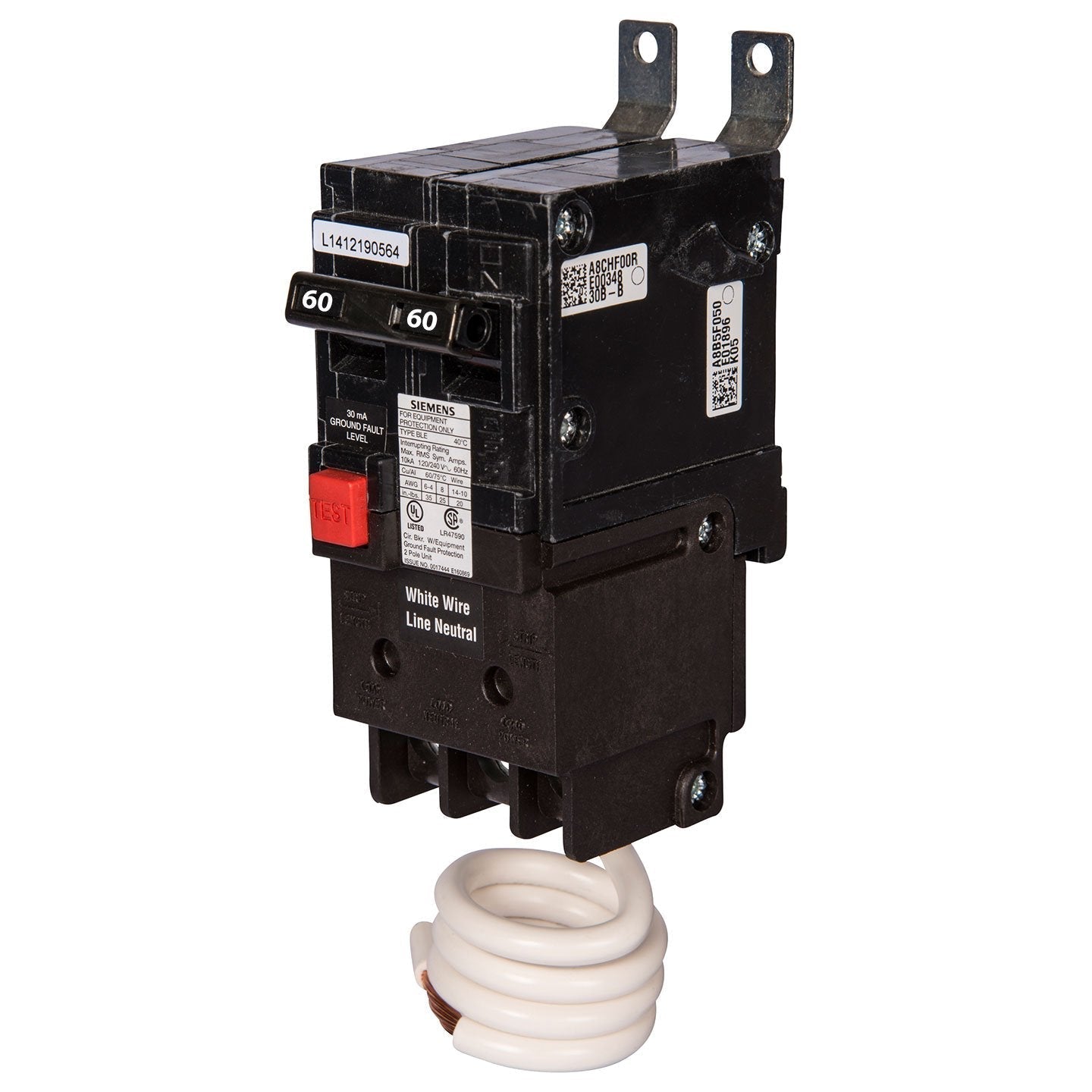

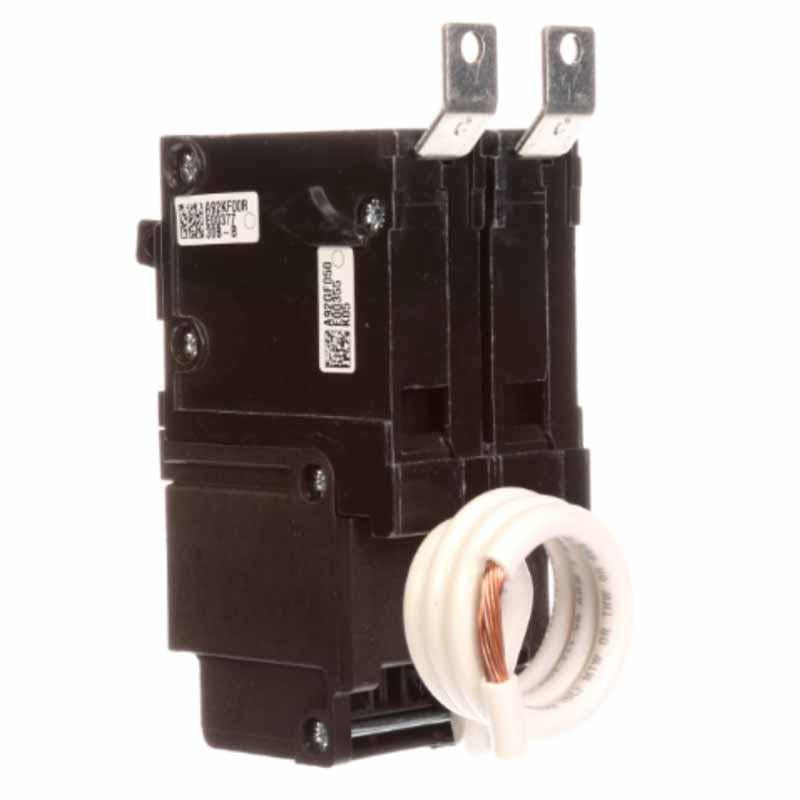

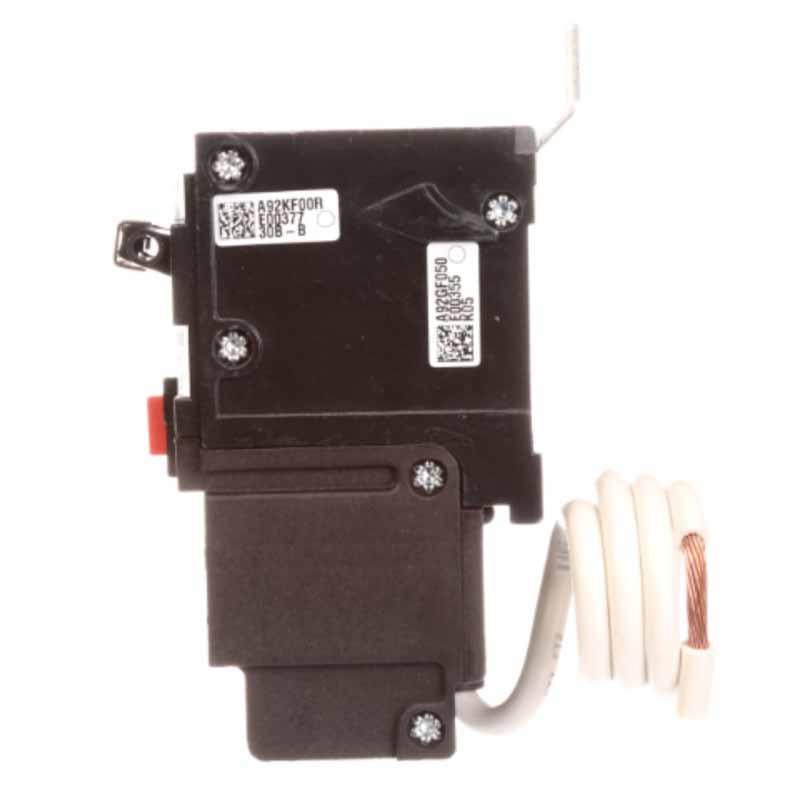

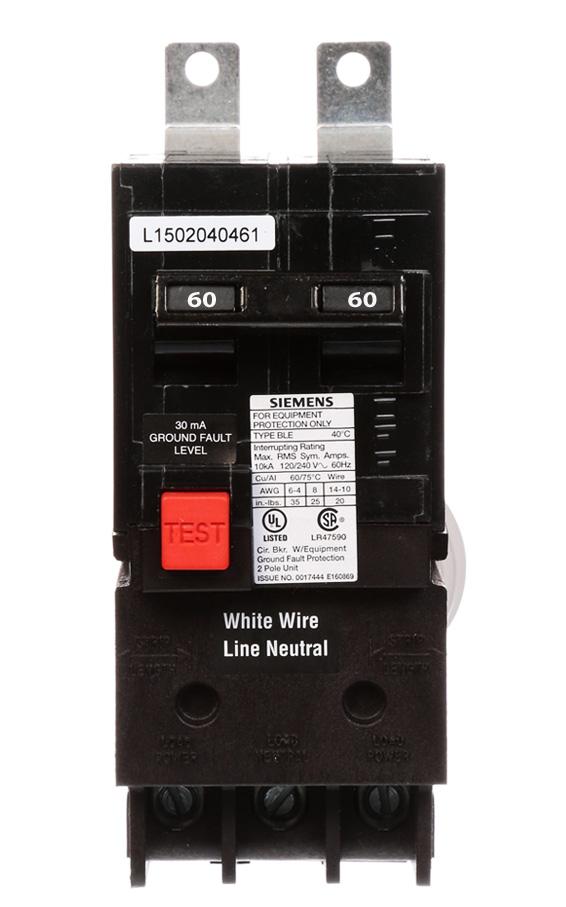

Siemens BE260 is a molded case circuit breaker designed for ground fault equipment protection in single-phase systems. It features a 60A current rating and a 120/240V voltage rating, housed within a compact 60A/BLE frame measuring 3.937 x 5.906 x 2.756 inches and weighing 1.036 lb. The breaker utilizes a thermal magnetic protection mechanism with long-time and instantaneous (LI) functions, is constructed with bolt-on connections and lug terminals, and complies with CSA, HACR, NOM, and UL standards. It is typically applied in Siemens P1 panelboards for industrial and commercial electrical distribution, offering a 10kA interrupting capacity at 240V and accepting wire sizes from 6 AWG to 12 AWG (Al) or 14 AWG (Cu).

Key Features & Specifications
  • Type: BLE Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 60A
  • Dimensions: 3.937" H x 5.906" W x 2.756" D (100mm x 150mm x 70mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Industrial & Commercial Distribution in Siemens P1 Panelboards
  • Breaker Type: Ground Fault Equipment Protection
  • Phase: 1
  • Poles: 2
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Frame Size: 60A/BLE
  • Functions: LI (Long-Time and Instantaneous)
  • AIC Rating: 10kA @ 240V
  • Protection: Thermal Magnetic
  • MCM Size: Wire Range 6 AWG (Max) to 12 AWG (Al) / 14 AWG (Cu) (Min)
  • Weight: 1.036 lb (0.47 kg)
  • Panel Type: Siemens P1 Panelboards
  • Family: BL Series
  • Country of Origin: Philippines


Product Identification
  • UPC: 783643274150
  • GTIN: 00783643274150
