Siemens
Price
Save $953.11
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

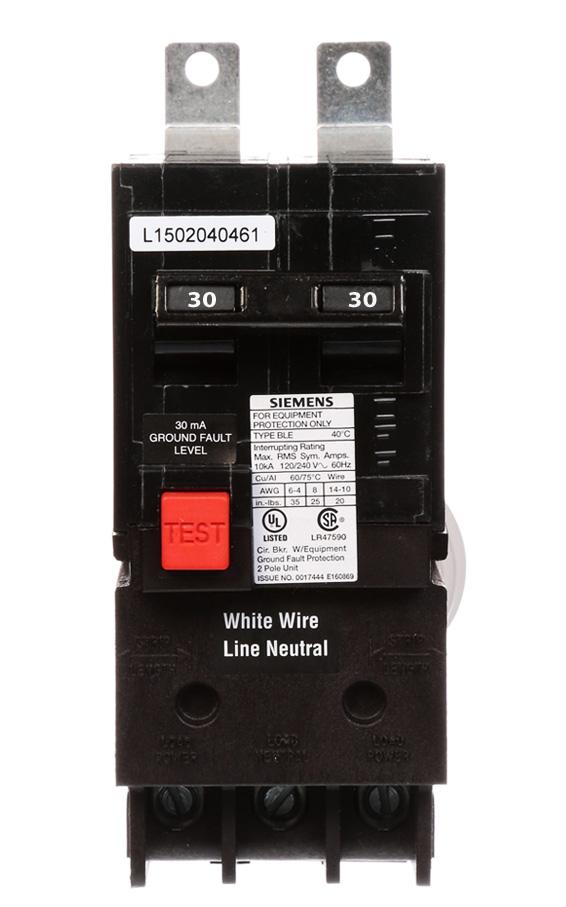

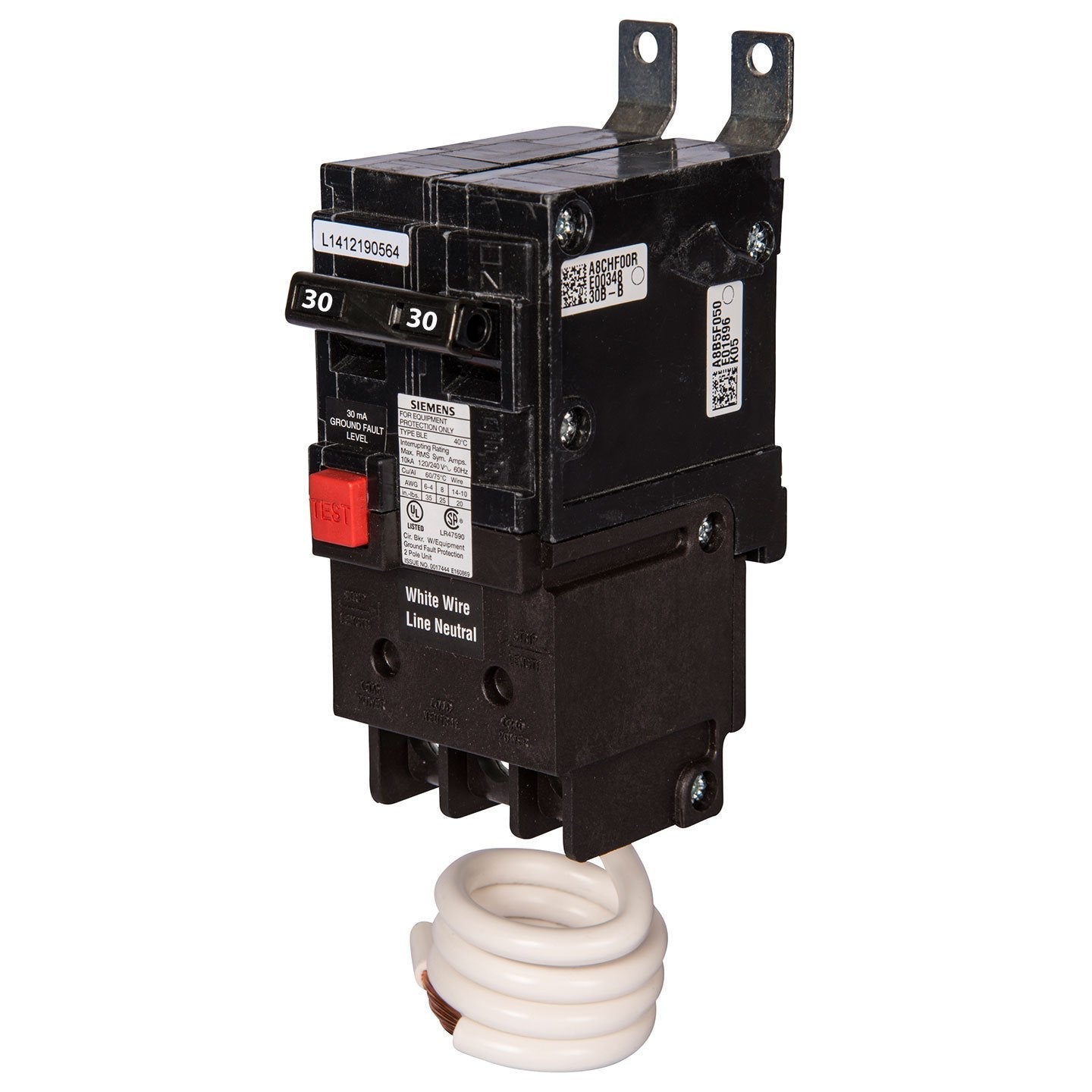

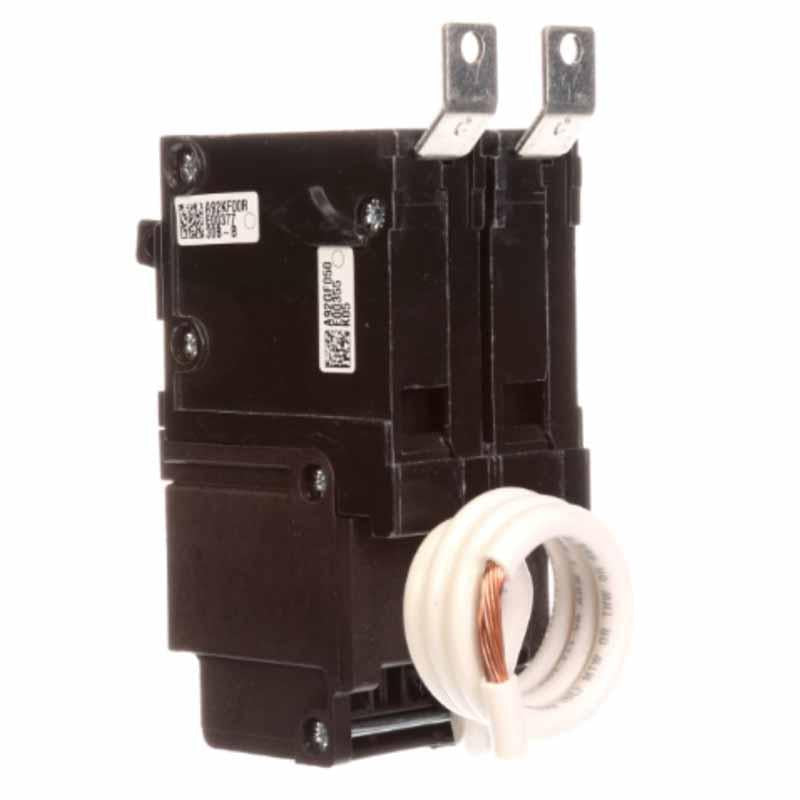

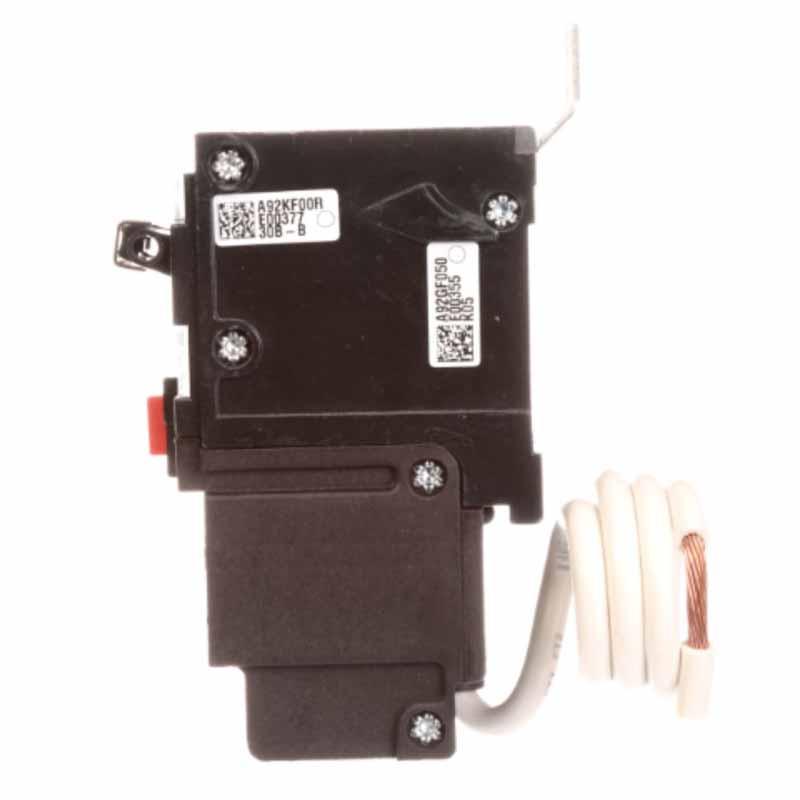

Siemens BE230 is a molded case circuit breaker designed for ground fault equipment protection in single-phase electrical systems. It provides a 30A current rating and a 120/240V voltage rating, housed within a compact 5.906" x 3.543" x 2.362" (150mm x 90mm x 60mm) bolt-on frame with lug terminals. This thermal magnetic breaker, featuring LI (Long-time and Instantaneous) trip functions and a 10kA interrupting rating at 240V, is CSA, HACR, NOM, and UL listed for compliance. It is engineered for use in Siemens P1 panelboards and operates reliably across a temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: BLE Series, Molded Case, Thermal Magnetic Protection, Ground Fault Equipment Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 30A
  • Dimensions: 5.906 x 3.543 x 2.362 inch (150 x 90 x 60 mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Siemens P1 Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • Poles: 2
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 60A/BLE
  • Breaker Type: Ground Fault Equipment Protection
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • AIC rating: 10kA@240V
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 6 AWG
  • Weight: 1.058 lb
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Family: BL Series
  • Country of Origin: Philippines


Product Identification
  • UPC: 783643274129
  • GTIN: 00783643274129
