Siemens
Price
Save $994.63
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

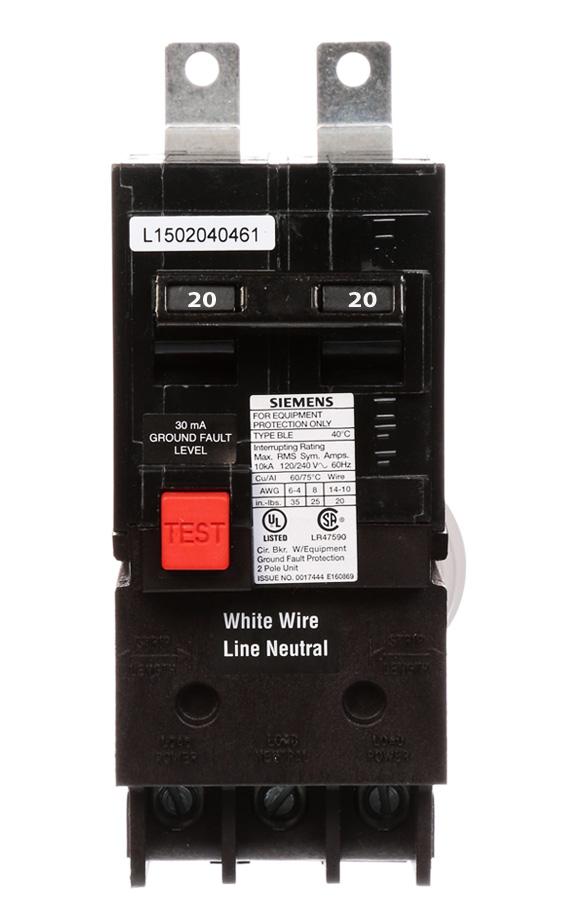

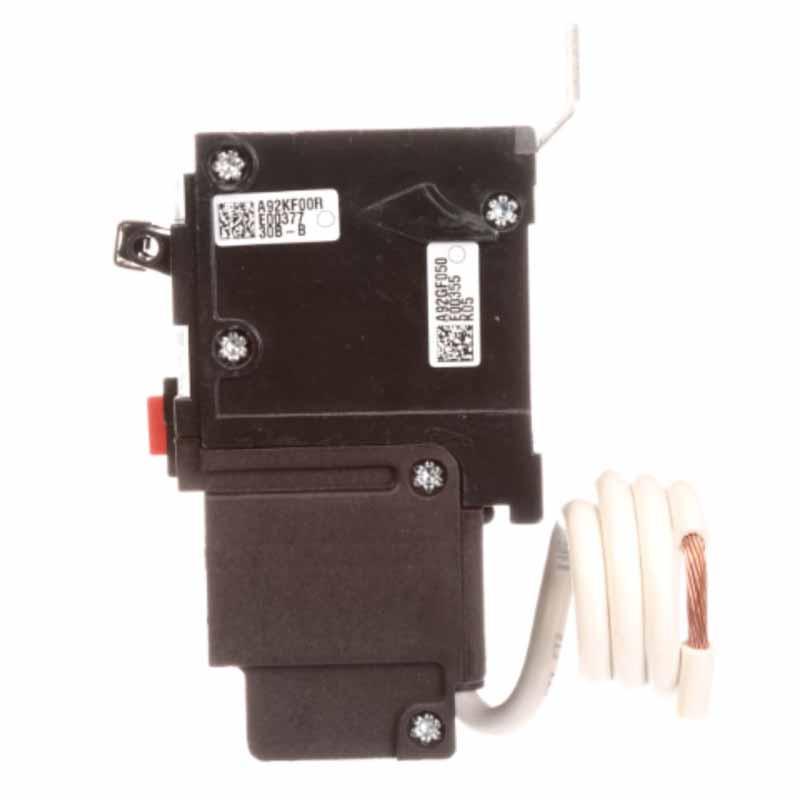

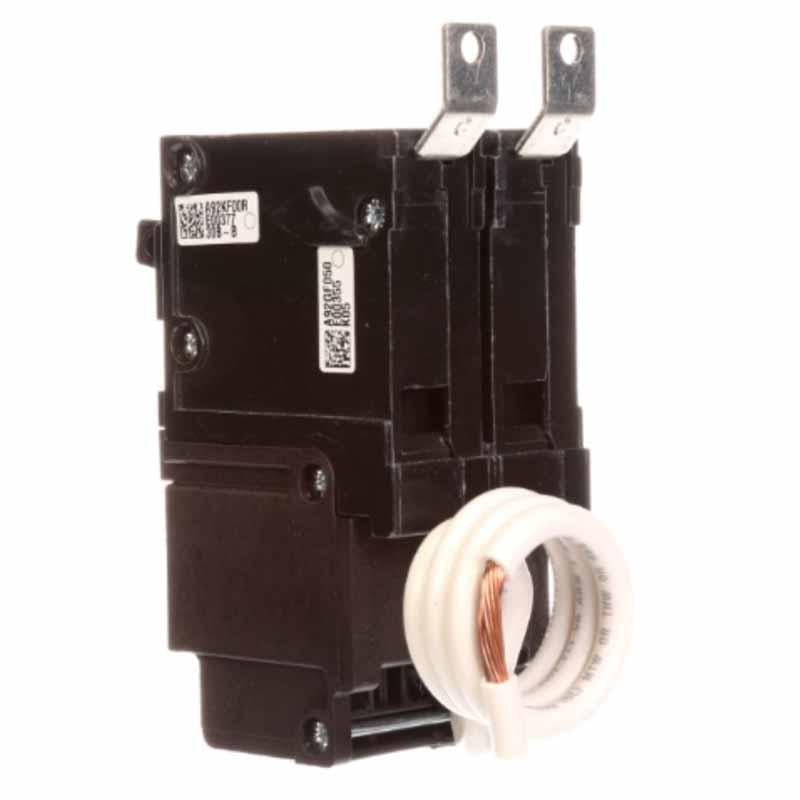

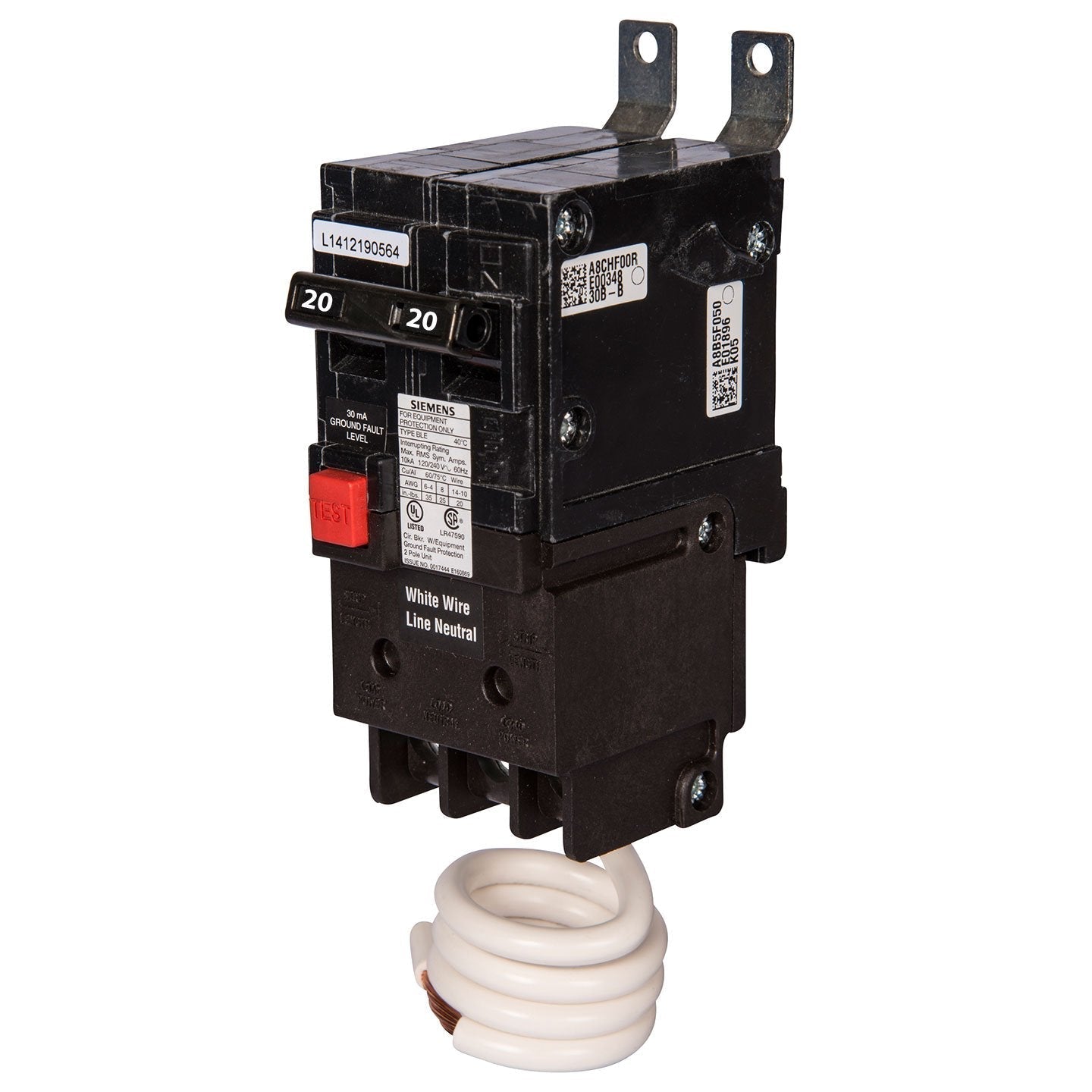

Siemens BE220 is a molded case circuit breaker designed for ground fault equipment protection in single-phase electrical systems. It provides a 20A current rating and a 120/240V voltage rating, featuring a thermal magnetic protection mechanism with long-time and instantaneous (LI) trip functions for reliable overcurrent and short-circuit interruption. The breaker is constructed with a compact 60A/BLE frame, measures 12.598 x 7.087 x 7.874 inches, weighs 1.058 lb, and utilizes a bolt-on connection with lug terminals compatible with wire sizes from 6 to 12 AWG (Al) or 14 AWG (Cu). It complies with major industry standards, including UL Listing, CSA Certification, HACR Rating, and NOM Certification, ensuring suitability for demanding environments with an operational temperature range of -25 to 70 °C. This breaker is typically applied in Siemens P1 panelboards for commercial and industrial power distribution, offering a 10kA interrupting capacity at 240V for enhanced system safety.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLE Type, Thermal Magnetic Protection, Ground Fault Equipment Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 20A
  • Dimensions: 12.598 x 7.087 x 7.874 inch
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Commercial and Industrial Power Distribution in Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • AIC rating: 10kA@240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 60A/BLE
  • Breaker Type: Ground Fault Equipment Protection
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 6 AWG
  • Weight: 1.058 lb


Product Identification
  • UPC: 783643274112
  • GTIN: 00783643274112
