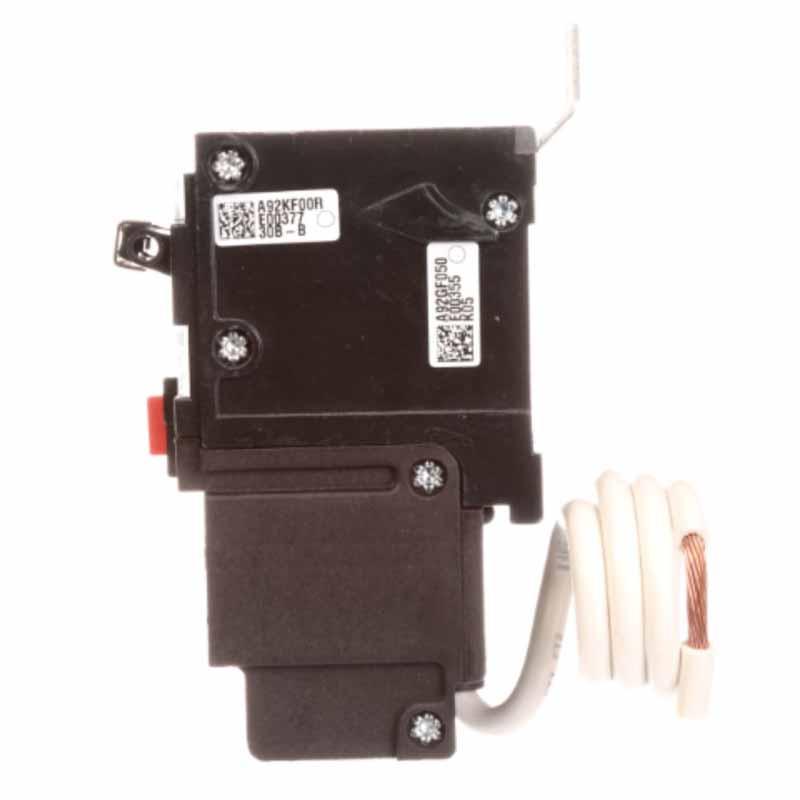

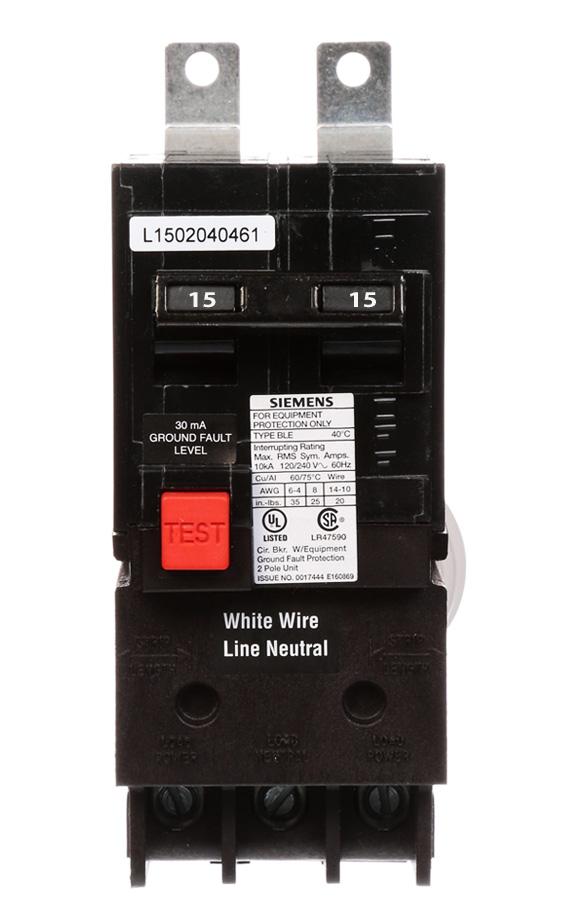

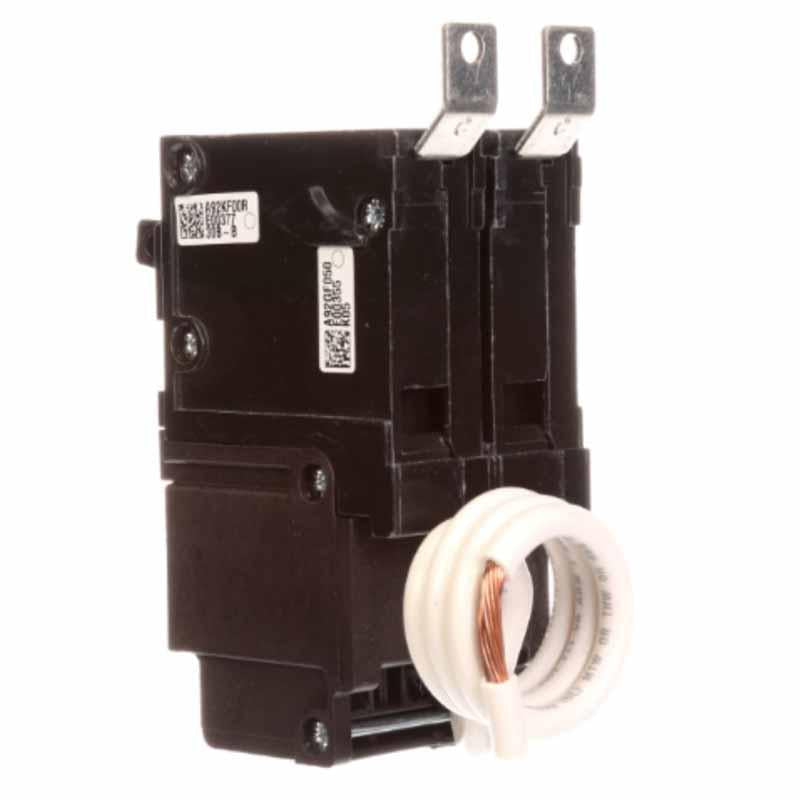

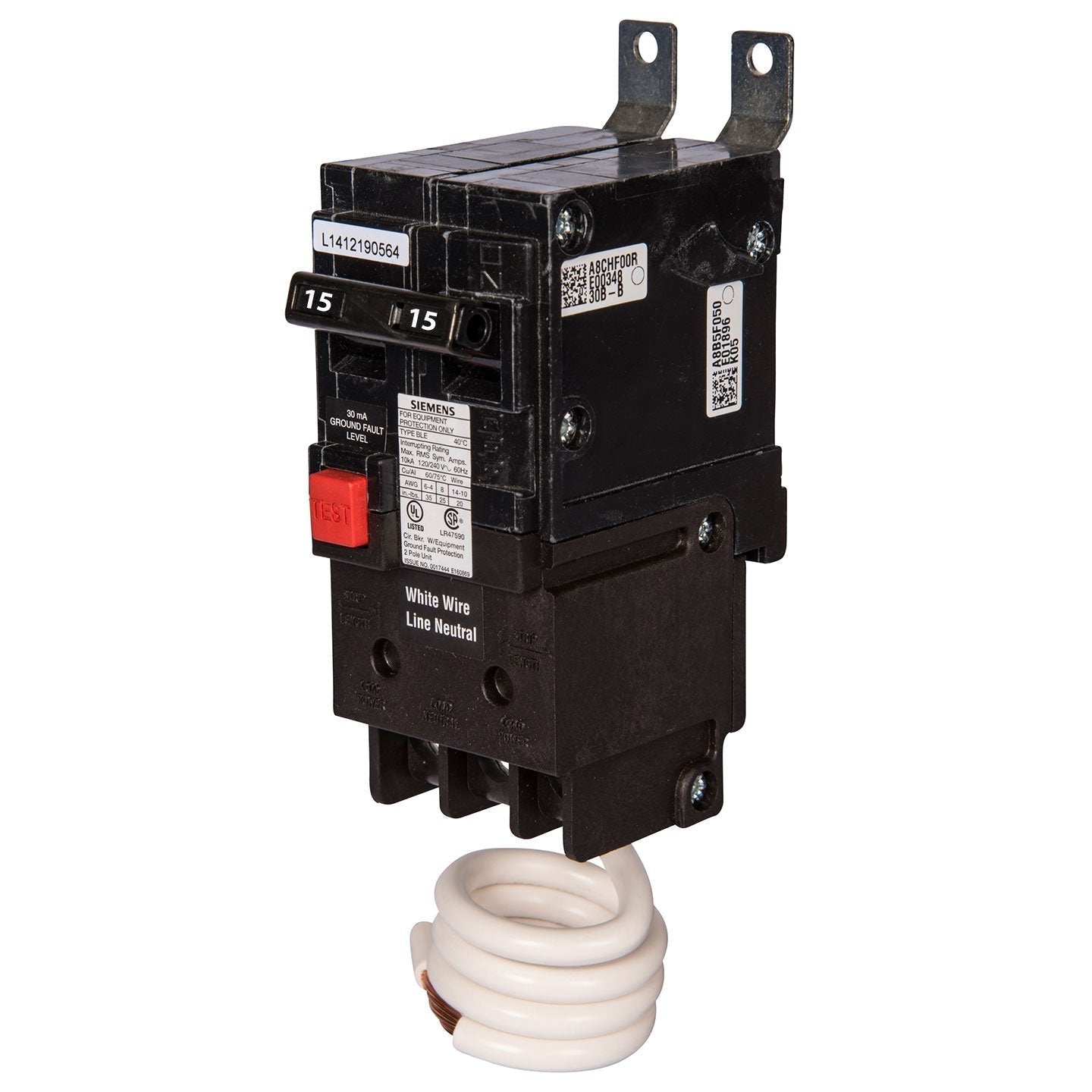

Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole
Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole

Siemens BE215 - Molded Case Circuit Breaker 15A 2-Pole

Siemens
Price
Save $870.38
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens BE215 is a molded case circuit breaker designed for ground fault equipment protection in single-phase systems. It provides a 15A current rating and 120/240V voltage rating with a 10kA interrupting capacity at 240V AC, utilizing a thermal magnetic trip mechanism for long-time and instantaneous overcurrent protection. The breaker features a compact bolt-on design within a 60A/BLE frame, measuring 150 x 100 x 50 mm (5.906 x 3.937 x 1.969 in) and weighing 0.992 lb, with lug terminals accepting wire sizes from 6 to 12 AWG (Al) or 14 AWG (Cu). It is certified to UL, CSA, HACR, and NOM standards for safety and operates reliably within a temperature range of -25 to 70 °C. This breaker is typically applied in Siemens P1 panelboards for commercial and light industrial electrical distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLE Type, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 15A
  • Dimensions: 150 x 100 x 50 mm (5.906 x 3.937 x 1.969 in)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Commercial and Light Industrial Distribution in Siemens P1 Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • Poles: 2
  • AIC Rating: 10kA @ 240V AC
  • Connection: Bolt-on
  • Protection: Ground Fault Equipment Protection
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 60A/BLE
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Ground Fault Equipment Protection
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 6 AWG
  • Terminal Connection: Lug
  • Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Weight: 0.992 lb


Product Identification
  • UPC: 783643274105
  • GTIN: 00783643274105
