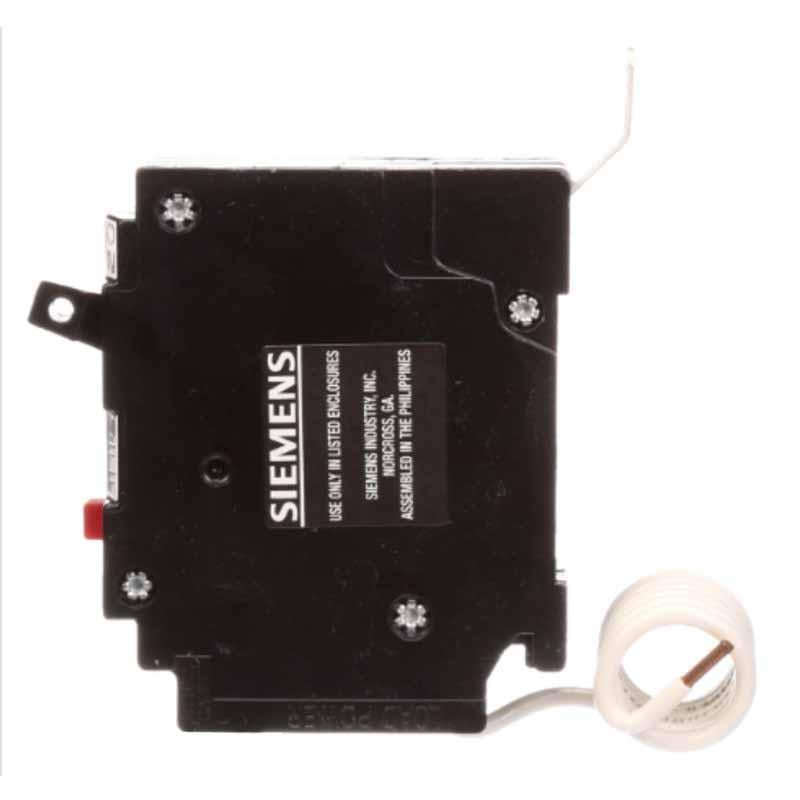

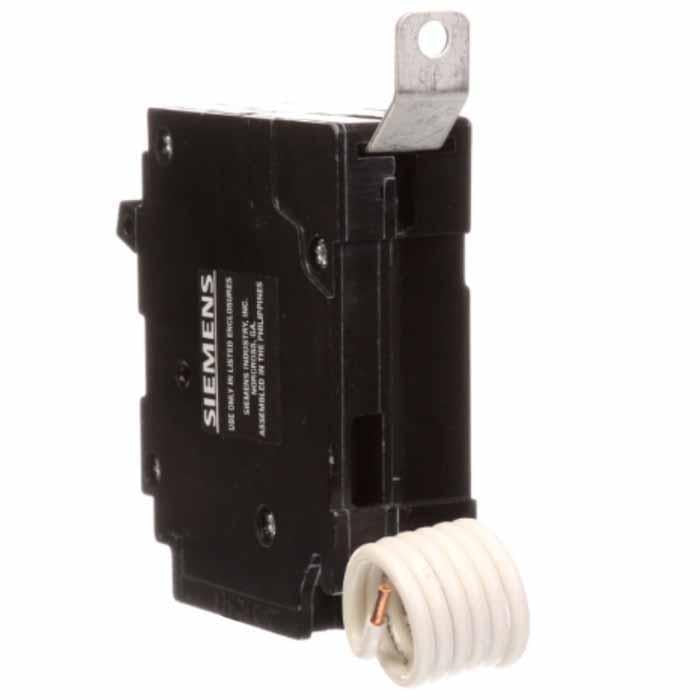

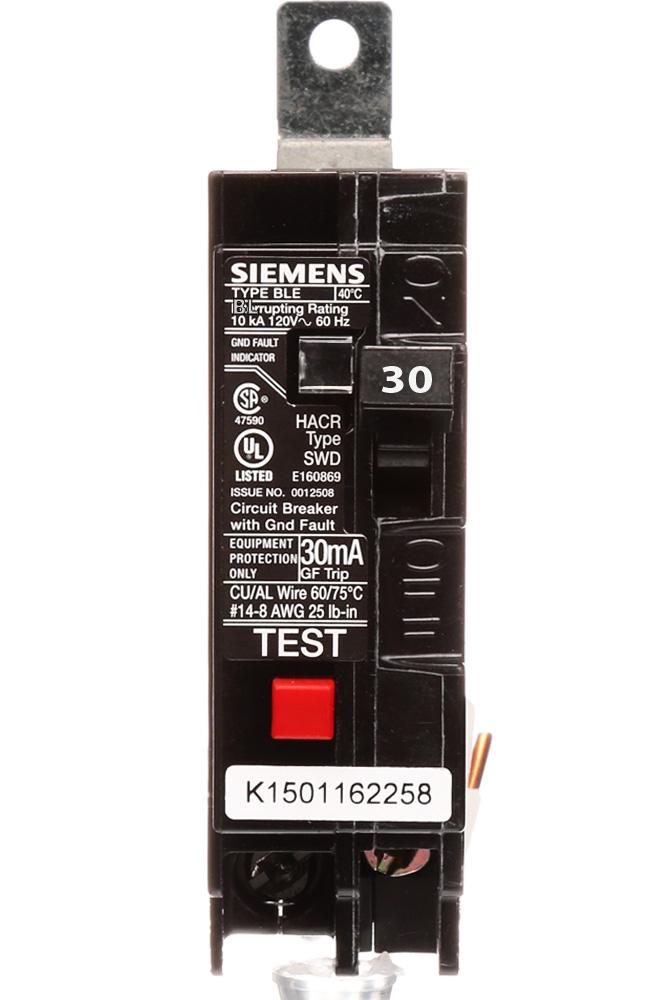

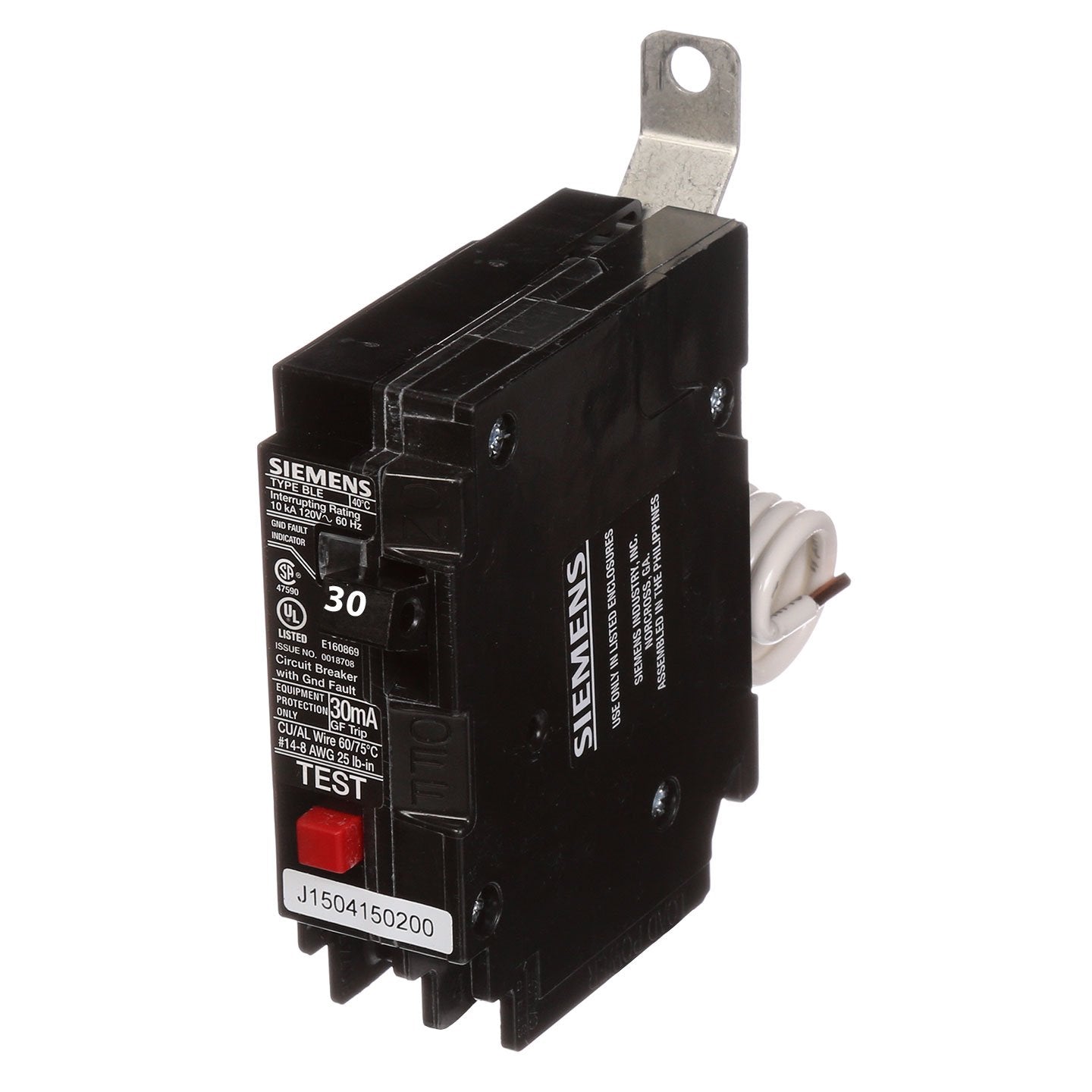

Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)
Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)
Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)
Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)
Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)
Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)
Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)
Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)

Siemens BE130 - 30A 1-Pole GFEP Circuit Breaker (10kA AIC)

Siemens
Price
Save $721.70
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BE130 is a molded case circuit breaker designed for ground fault equipment protection in single-phase 120V AC systems. It features a 30A current rating and a 10kA interrupting capacity at 120V, utilizing a thermal-magnetic trip mechanism for both long-time and instantaneous overcurrent protection. The compact bolt-on unit measures 140 x 90 x 30 mm (5.512 x 3.543 x 1.181 inches), weighs 0.331 lb, and is constructed for operation in temperatures from -25 to 70 °C. It complies with UL, CSA, HACR, and NOM standards and is specifically configured for installation in Siemens P1 panelboards with lug terminals accepting wire sizes from 10 to 12 AWG for aluminum or 14 AWG for copper.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker (BLE), Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Frame Size: 60A/BLE
  • AIC Rating: 10kA @ 120V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-on, Lug Terminal
  • Functions: Long Time and Instantaneous Trip
  • Breaker Type: Ground Fault Equipment Protection
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Operating Temperature: -25 to 70 °C (-13 to 158 °F)
  • Dimensions: 140 x 90 x 30 mm (5.512 x 3.543 x 1.181 in)
  • Weight: 0.331 lb
  • Wire Size (MCM): Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Family: BL Series
  • Country of Origin: Philippines


Product Identification
  • UPC: 783643266117
  • GTIN: 00783643266117
