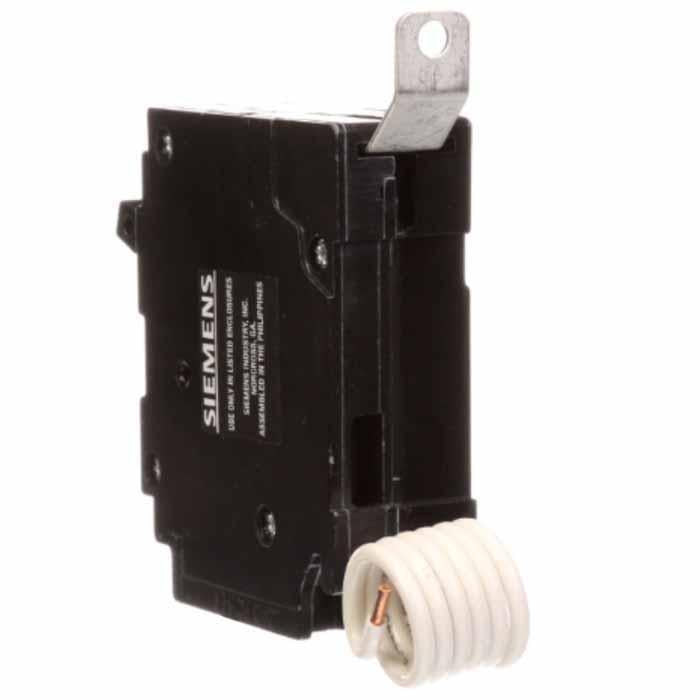

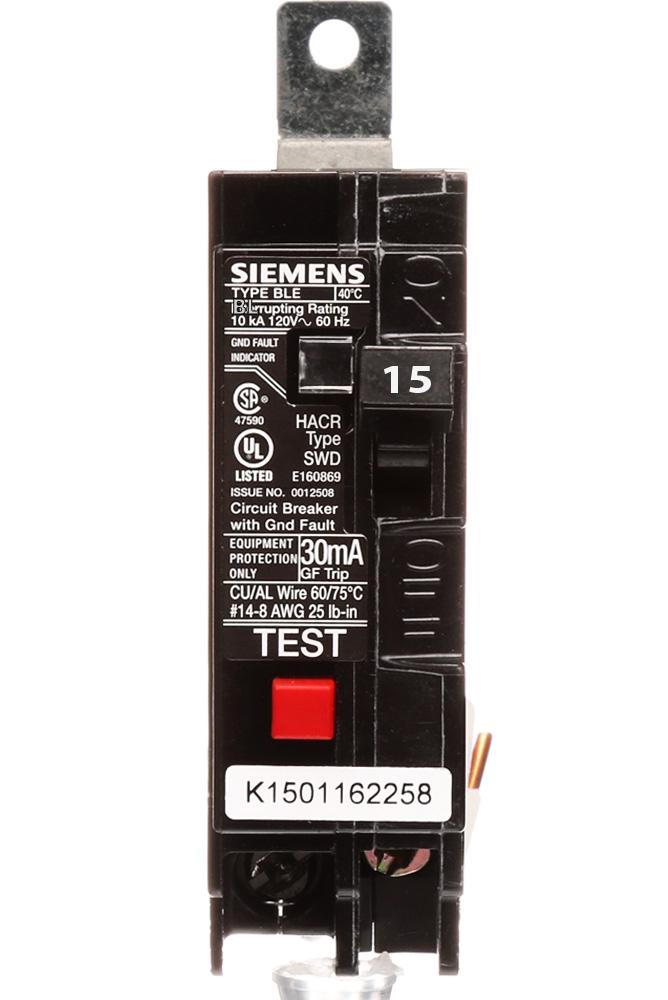

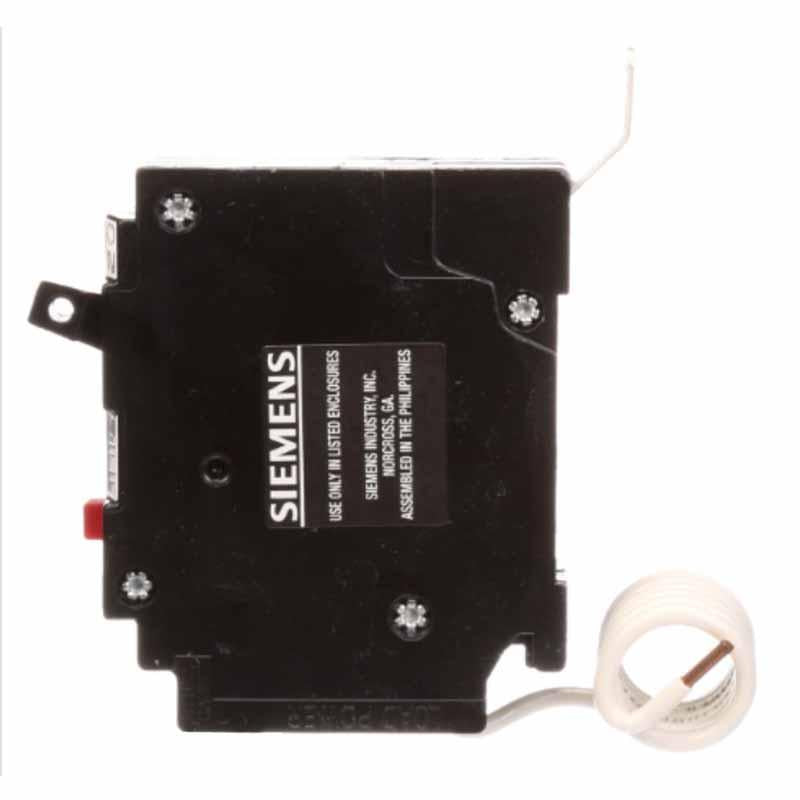

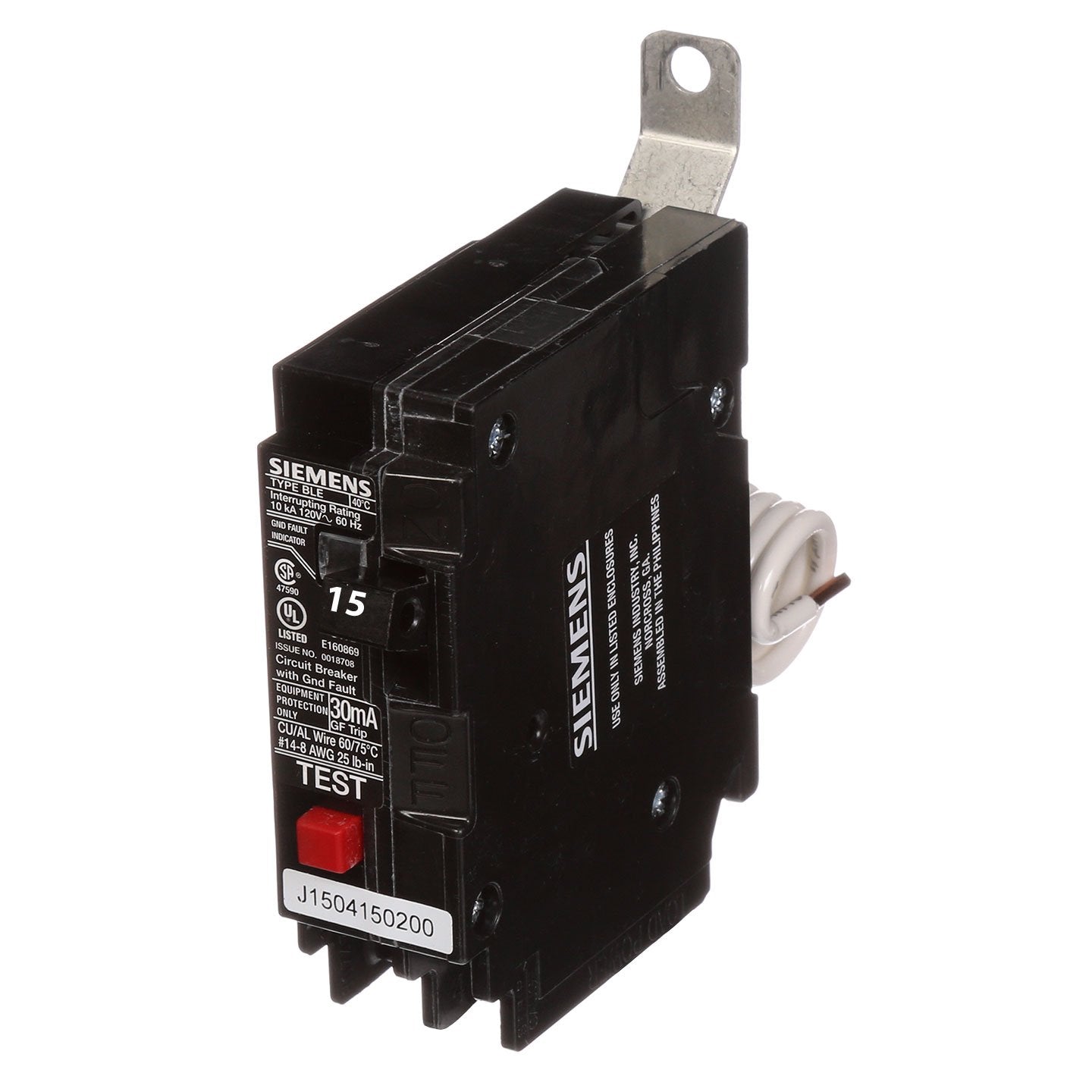

Siemens BE115 - Molded Case Circuit Breaker 15A 1-Pole (120V, 10kA)

Price
Regular price $105.40
Regular price $912.00 Sale price $105.40
Save $806.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens BE115 is a molded case circuit breaker designed for ground fault equipment protection in single-phase 120V AC systems. It features a 15A current rating and a 10kA interrupting capacity, housed within a compact 60A/BLE frame with dimensions of 0.787" x 3.937" x 4.724" and a weight of 0.507 lb. The breaker utilizes a thermal magnetic trip mechanism for long-time and instantaneous (LI) protection and is certified to UL, CSA, HACR, and NOM standards. It is engineered for bolt-on connection to Siemens P1 panelboards, providing reliable circuit protection in commercial and light industrial electrical distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLE Type, Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Frame Size: 60A/BLE
  • Poles: 1
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous)
  • Breaker Type: Ground Fault Equipment Protection
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Dimensions: 0.787" W x 3.937" H x 4.724" D (20mm x 100mm x 120mm)
  • Weight: 0.507 lb (0.23 kg)
  • Family: BL Series
  • Country of Origin: Philippines


Product Identification
  • UPC: 783643266094
  • GTIN: 00783643266094
