Square D BDA36125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 125A current rating and a 600V AC voltage rating, housed within a compact 125A/BD frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 4.21 lb. The breaker is constructed with thermal-magnetic protection for long-time and instantaneous (LI) tripping functions and complies with key industry standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5. Its I-Line connection and aluminum mechanical lug terminals support wire sizes from 14 AWG to 2/0 AWG, making it suitable for installation in electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: BDA Standard Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 125A

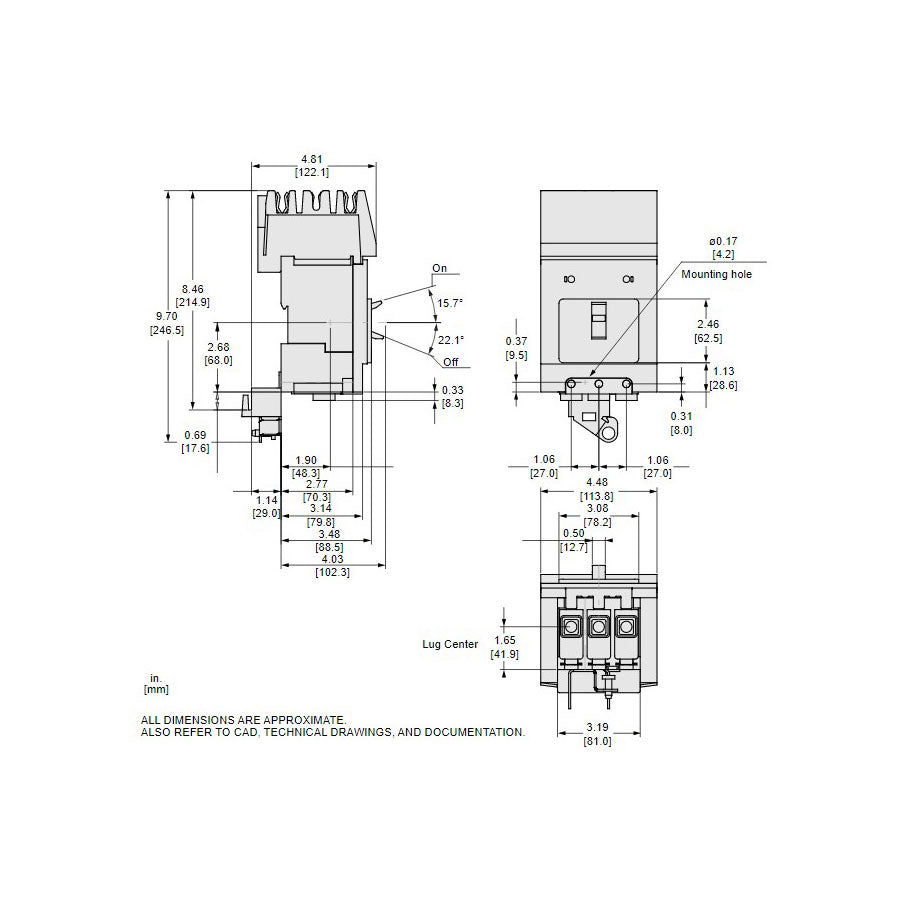

  • Dimensions: 5.4 in (137 mm) H x 3.2 in (81 mm) W x 3.5 in (89 mm) D
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No. 5, GB 14048.2, NEMA AB1, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 18kA at 480V
  • Connection: I-Line
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BD
  • Breaker Type: Standard
  • MCM Size: 14 AWG to 2 AWG
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Phase Connection: ABC
  • Weight: 4.21 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901014119
  • GTIN: 03606481152763
