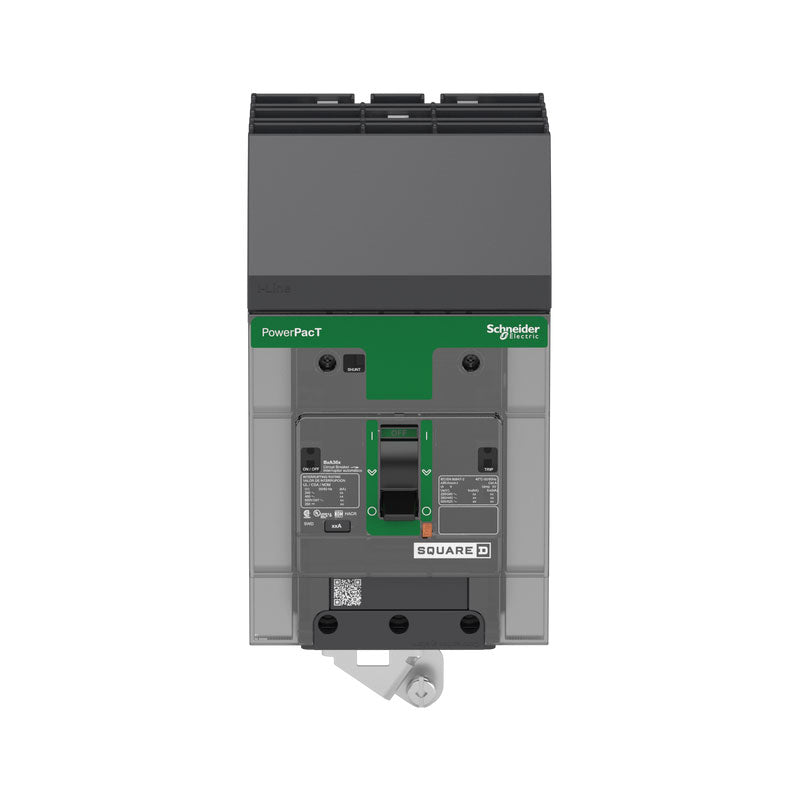

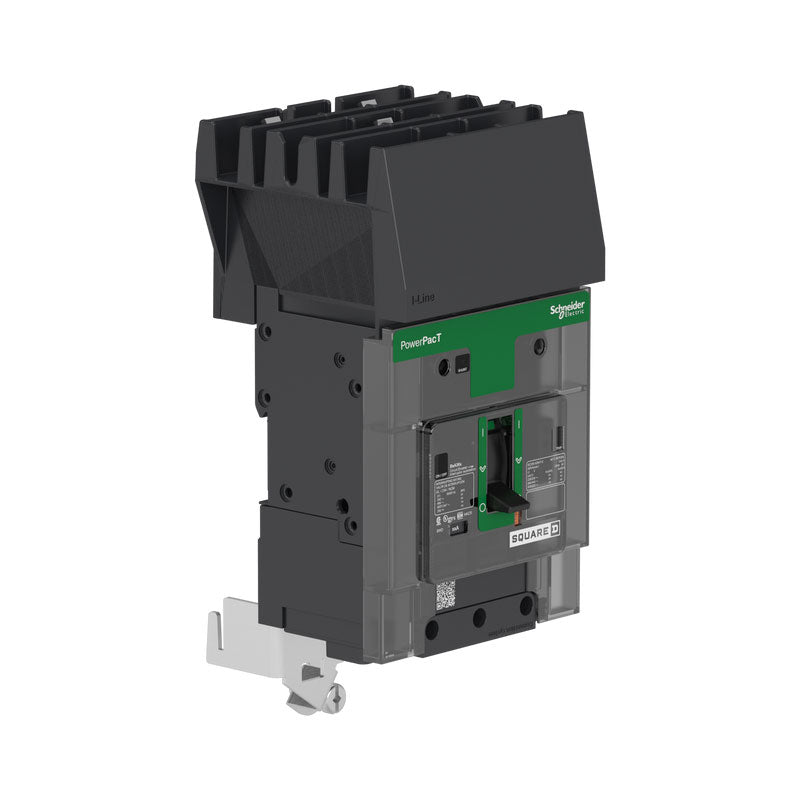

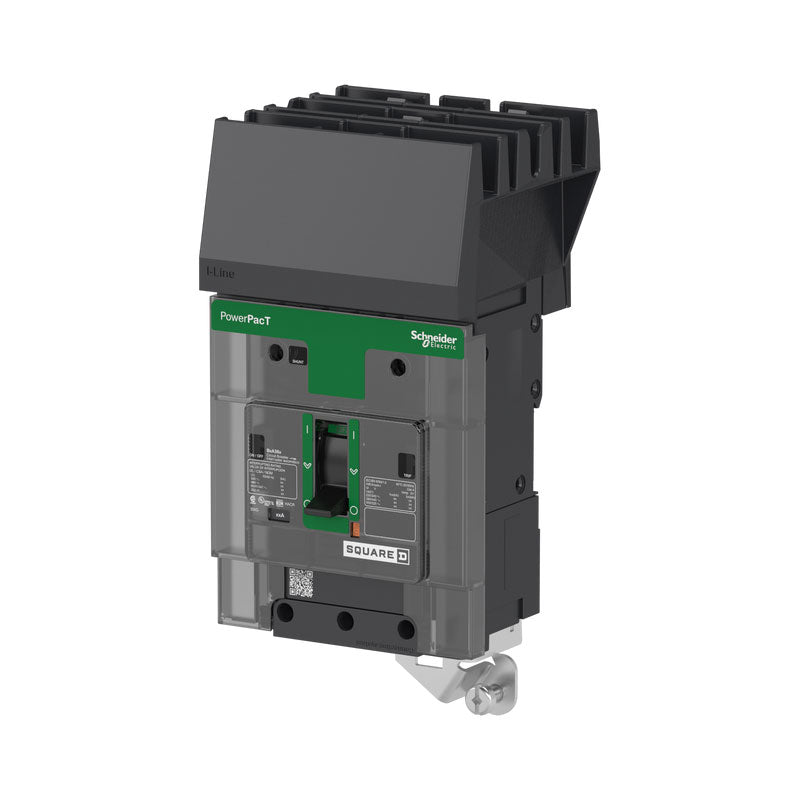

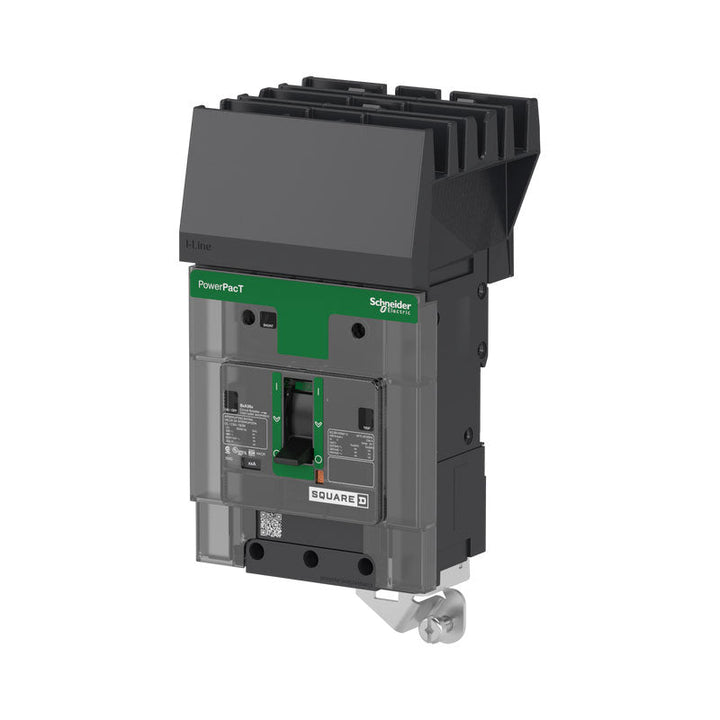

Schneider Electric BDA36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 100A current rating and a 600V voltage rating, housed within a compact 137 mm x 81 mm x 89 mm (HxWxD) frame that weighs 4.12 lb. This thermal-magnetic breaker complies with UL 489, IEC 60947-2, and other major international standards, ensuring robust performance. It is engineered for integration into electrical distribution equipment and industrial control panels, offering an interrupting capacity of 18kA at 480V AC.

Key Features & Specifications
  • Type: BDA Standard Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A

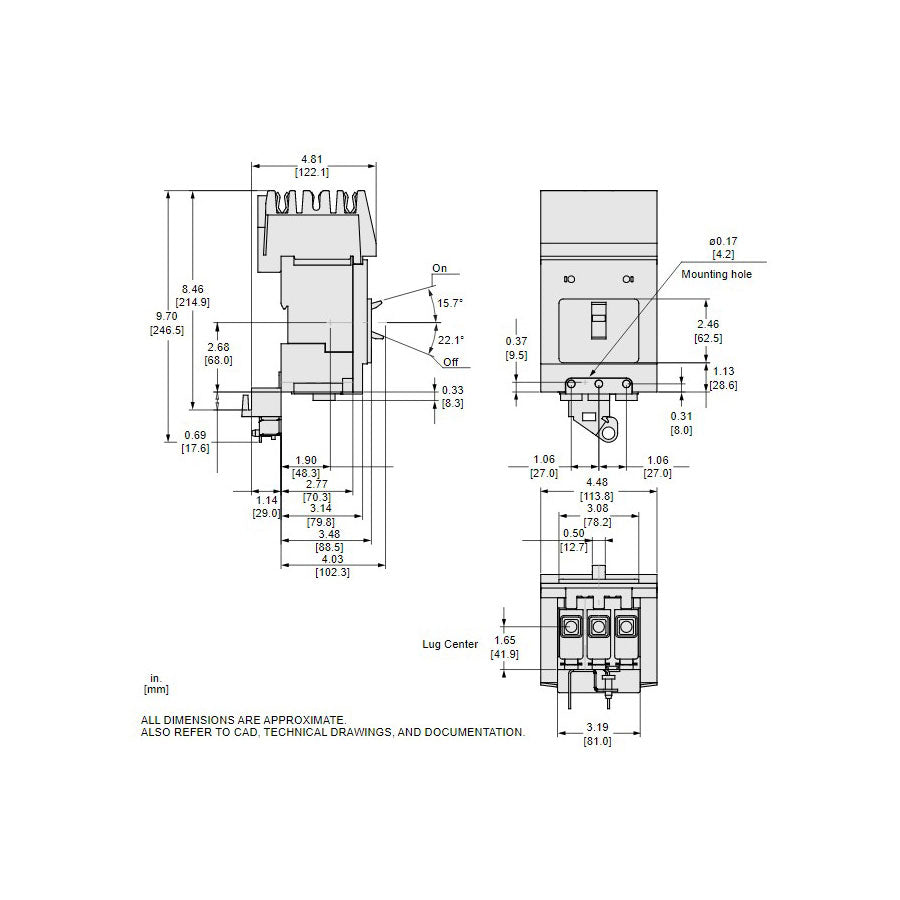

  • Dimensions: 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Standards: NEMA AB1, CSA C22.2 No 5, GB 14048.2, UL 489, EN/IEC 60947-2, EN/IEC 60947-5-1, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Phase: 3
  • AIC rating: 18kA@480V
  • Connection: I-Line
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/BD
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Wire Size: AWG 14...AWG 2/0 aluminium/copper
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Circuit Breaker Mounting Style: Fixed

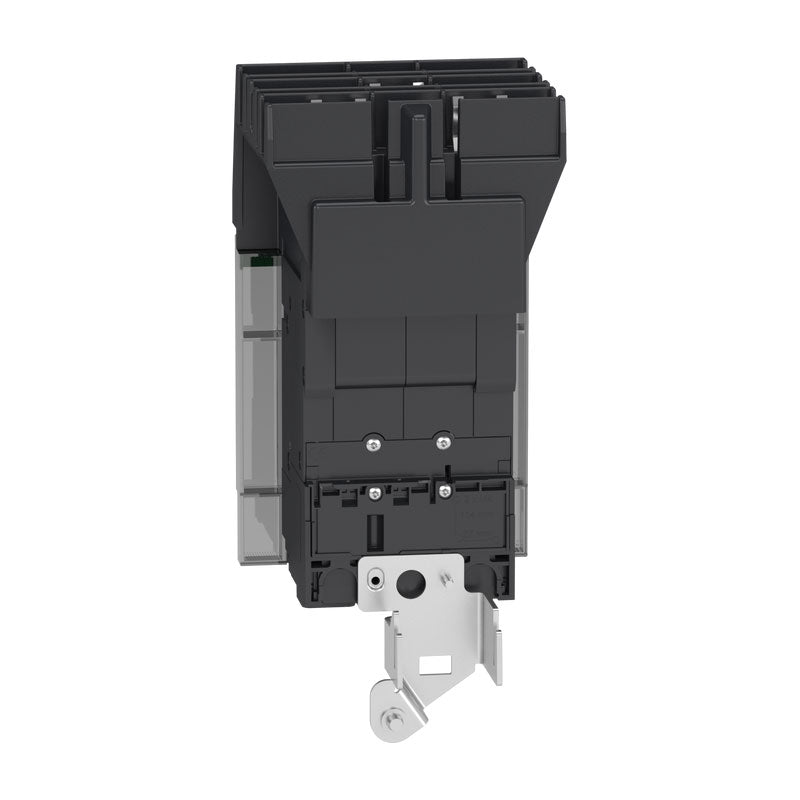

  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Frequency Rating: 50/60 Hz
  • Phase Connection: ABC
  • Compatible Frames: Powerpact
  • Installation Type: Panel
  • Breaker Frame: 125A/BD
  • Operating Temperature Maximum Celsius: 70 °C
  • Weight: 4.12 lb


Product Identification
  • UPC: 785901000181
  • GTIN: 03606481152725
