Schneider Electric
Price
Save $626.63
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric BDA36080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 80A continuous current and 600V maximum operating voltage. The breaker is constructed with a compact 125A/BD frame, measures 137 mm H x 81 mm W x 89 mm D, and weighs 4.17 lb, featuring an I-Line connection on the ON end and aluminum mechanical lugs on the OFF end for conductor sizes from AWG 14 to 2/0. It complies with major international standards including UL 489, IEC 60947-2, CSA C22.2 No. 5, and GB 14048.2, and is certified for use in electrical distribution equipment and industrial control panels across a wide operating temperature range of -25°C to 70°C.

Key Features & Specifications
  • Type: BDA Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard
  • Voltage Rating: 600V AC
  • Current Rating: 80A

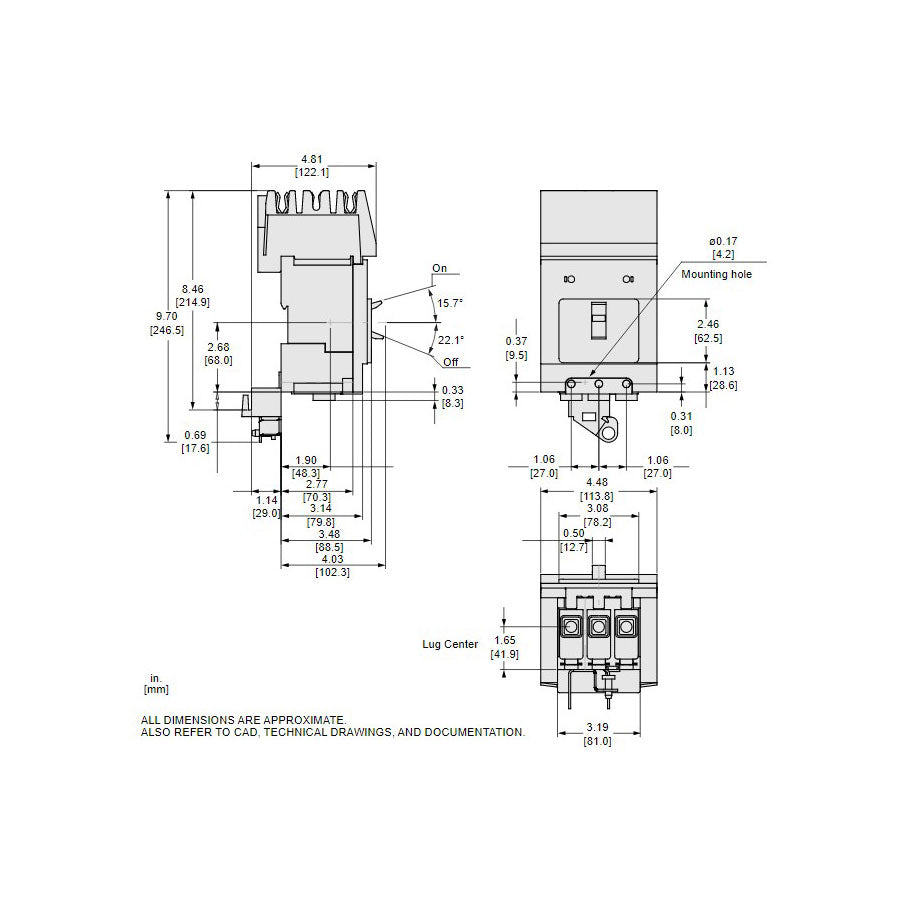

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No. 5, NEMA AB1, NMX J-266, GB 14048.2
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: I-Line
  • Phase Connection: ABC
  • AIC Rating: 18kA @ 480V
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/BD
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 2 AWG
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Weight: 4.17 lb
  • Country of Origin: Mexico
  • Family: Powerpact


Product Identification
  • UPC: 785901015819
  • GTIN: 03606481152688
