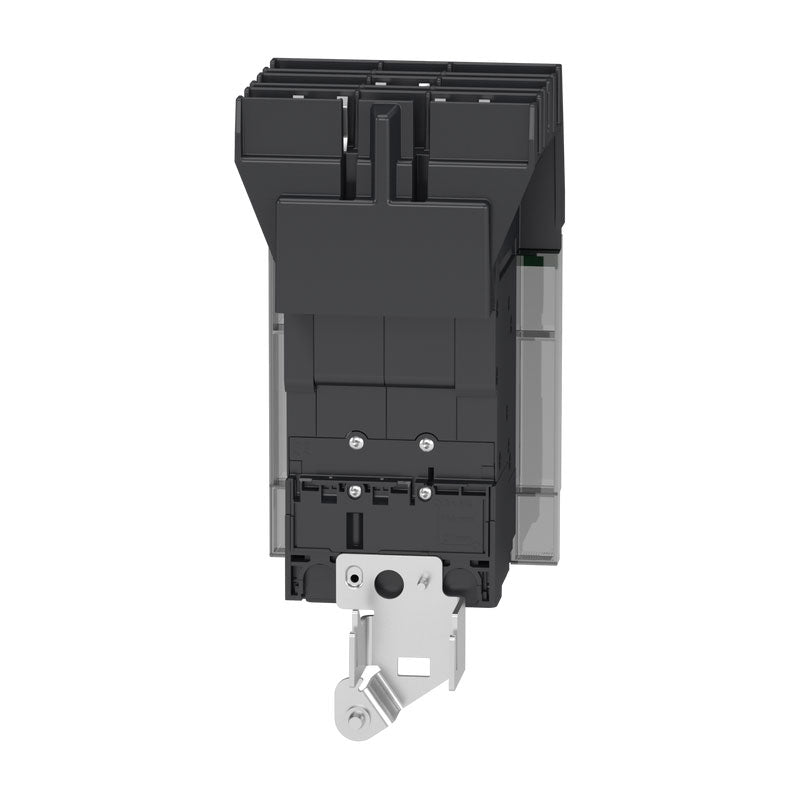

Schneider Electric BDA36070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 70A current rating and a 600V voltage rating, housed within a compact 125A/BD frame measuring 137 mm x 81 mm x 89 mm (H x W x D) and weighing 4.21 lb. This thermal-magnetic breaker is constructed for I-Line panel connection with aluminum mechanical lugs, offers an interrupting capacity of 18kA at 480V, and operates across a temperature range of -25 to 70 °C. It complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5, making it suitable for installation in industrial control panels and electrical distribution equipment.

Key Features & Specifications
  • Type: BDA Standard Molded Case Circuit Breaker with Thermal-Magnetic (LI) Protection
  • Voltage Rating: 600V AC
  • Current Rating: 70A

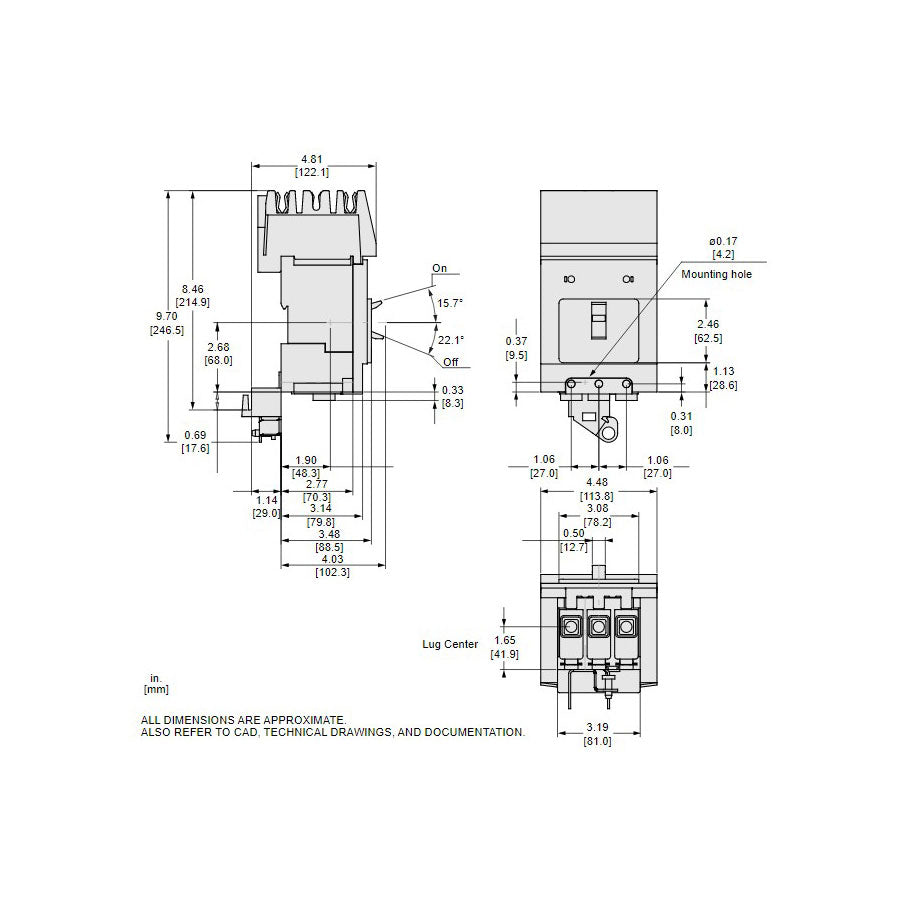

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.21 lb
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: I-Line
  • Phase Connection: ABC
  • AIC Rating: 18kA @ 480V
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BD
  • Breaker Type: Standard
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901010883
  • GTIN: 03606481152664
