Schneider Electric
Price
Save $513.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric BDA36060 is a three-pole molded case circuit breaker designed for providing reliable thermal-magnetic protection in three-phase industrial power distribution systems. It features a 60A current rating and a 600V voltage rating, housed within a compact 125A/BD frame with dimensions of 137 mm H x 81 mm W x 89 mm D and a weight of 4.17 lb. The breaker is constructed for robust performance across an operating temperature range of -25 to 70 °C and complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5. Its 18kA interrupting capacity at 480V and I-Line connection make it suitable for integration into electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: Three-pole, thermal-magnetic, molded case circuit breaker with long-time and instantaneous trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Frame Size: 125A/BD
  • AIC Rating: 18kA at 480V
  • Poles: 3
  • Phase Connection: 3-Phase (ABC)
  • Connection: I-Line ON End, Al Mechanical Lug OFF End
  • Protection: Thermal Magnetic
  • Wire Size: 14 AWG to 2/0 AWG for aluminium or copper

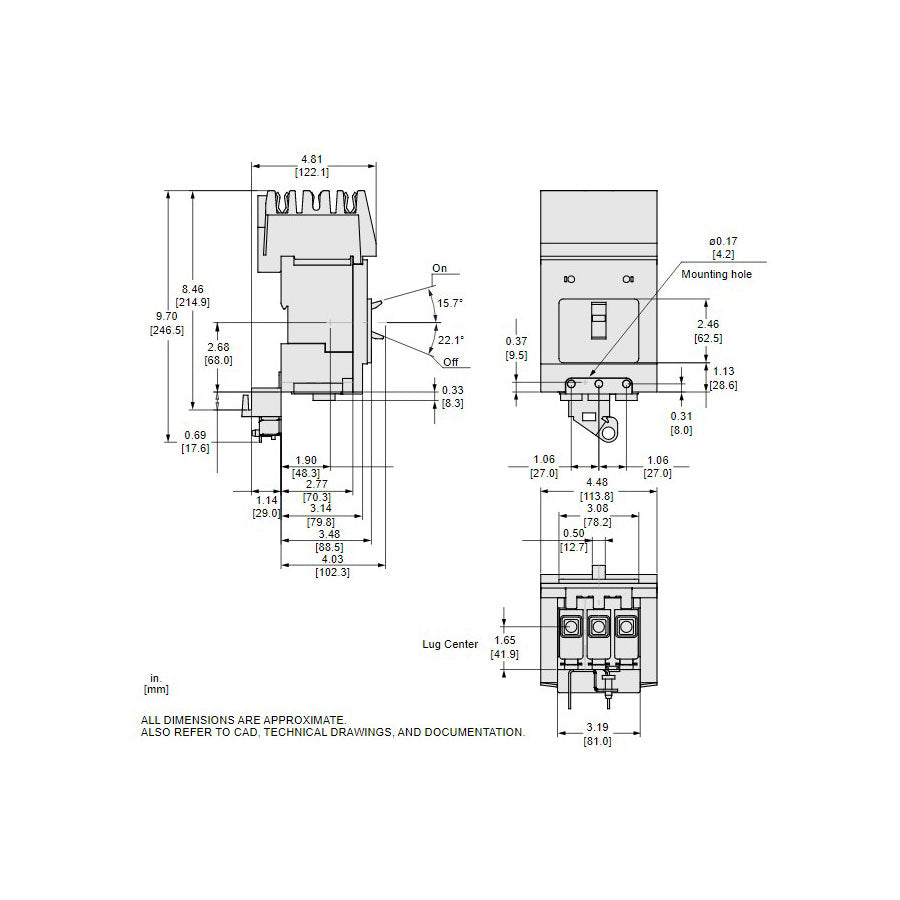

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.17 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No. 5, NMX J-266, GB 14048.2, NEMA AB1
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Breaker Type: Standard
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels


Product Identification
  • UPC: 785901009788
  • GTIN: 03606481152640
