Schneider Electric
Price
Save $513.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric BDA36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact 125A/BD frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 3.801 lb. This thermal-magnetic breaker with long-time and instantaneous (LI) trip functions is engineered for compliance with UL 489, IEC 60947-2, and other major international standards. It is typically applied in industrial control panels and electrical distribution equipment, offering an interrupting capacity of 18kA at 480V and an operational temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: BDA Standard Molded Case Circuit Breaker, Thermal Magnetic Protection with LI (Long-time & Instantaneous) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 50A

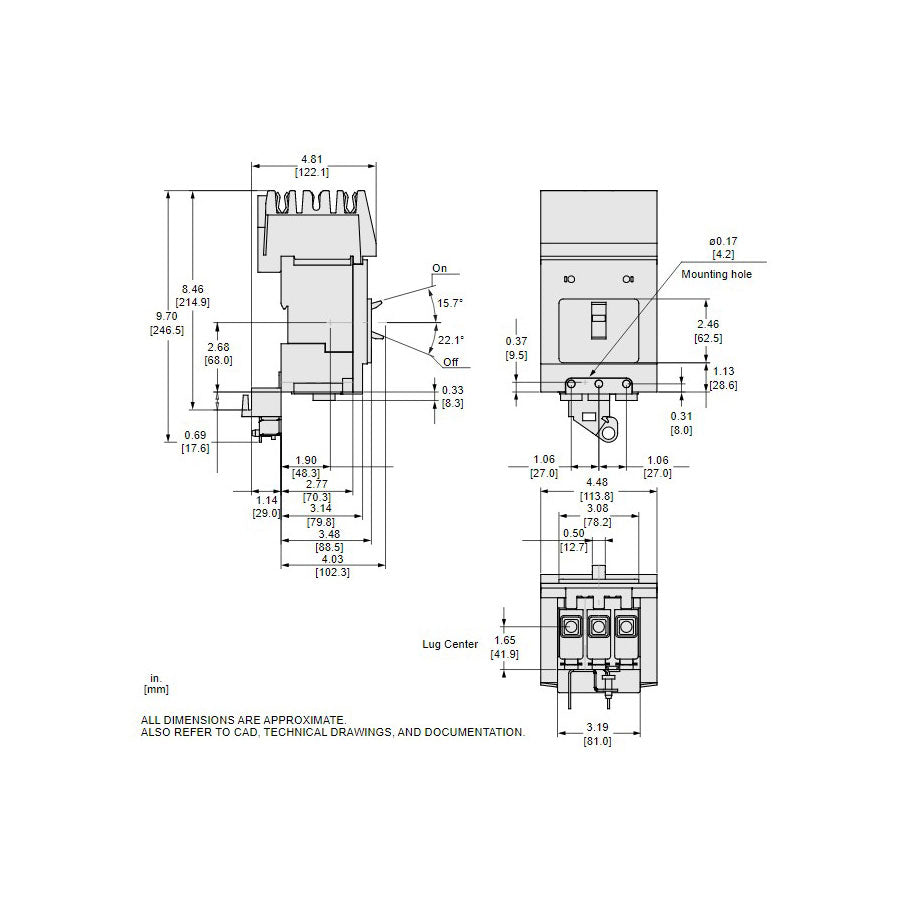

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, GB 14048.2, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: I-Line
  • Phase Connection: ABC
  • AIC Rating: 18kA @ 480V AC
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/BD
  • Breaker Type: Standard
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: AWG 14 to AWG 2/0 (Aluminium/Copper)
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Weight: 3.801 lb
  • Country of Origin: Mexico
  • Family: Powerpact


Product Identification
  • UPC: 785901010753
  • GTIN: 03606481152626
