Schneider Electric
Price
Save $513.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric BDA36030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 30A current rating and a 600V voltage rating, housed within a compact 125A/BD frame measuring 137 mm x 81 mm x 89 mm (HxWxD) and weighing 4.21 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous protection and is constructed for an operating temperature range of -25 to 70 °C. It complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5, making it suitable for installation in industrial control panels and electrical distribution equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 600V AC
  • Current Rating: 30A

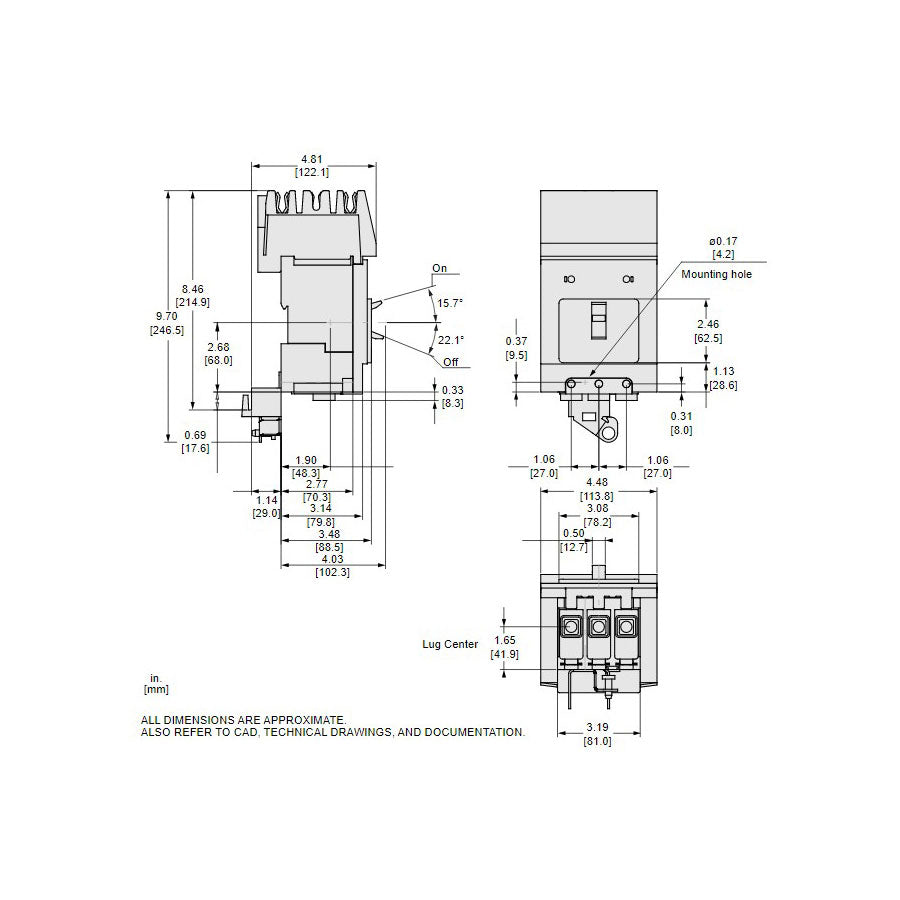

  • Dimensions: 5.4 in (137 mm) H x 3.2 in (81 mm) W x 3.5 in (89 mm) D
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No. 5, GB 14048.2, NEMA AB1, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: I-Line
  • Phase Connection: ABC
  • AIC Rating: 18kA @ 480V
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/BD
  • Breaker Type: Standard
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Wire Size: AWG 14 to AWG 2/0 (Aluminium/Copper)
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Weight: 4.21 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901001188
  • GTIN: 03606481152565
