Schneider Electric
Price
Save $513.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric BDA36020 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 20A thermal-magnetic trip unit with long-time and instantaneous protection functions, rated for 600V AC systems with an interrupting capacity of 18kA at 480V. The compact unit measures 137 mm H x 81 mm W x 89 mm D, utilizes an I-Line connection on the line side with aluminum mechanical lugs on the load side, and operates within a temperature range of -25 to 70 °C. It is engineered to comply with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5, making it suitable for integration into electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: BDA Standard Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Frame Size: 125A/BD
  • Poles: 3
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line (ON End), Al Mechanical Lug (OFF End)
  • Phase Connection: ABC
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • MCM Size: 14 AWG to 2 AWG

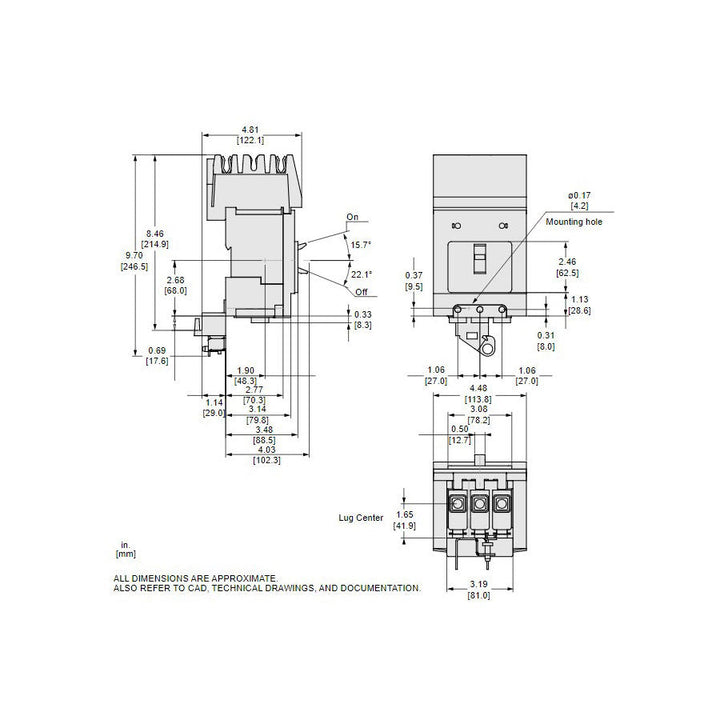

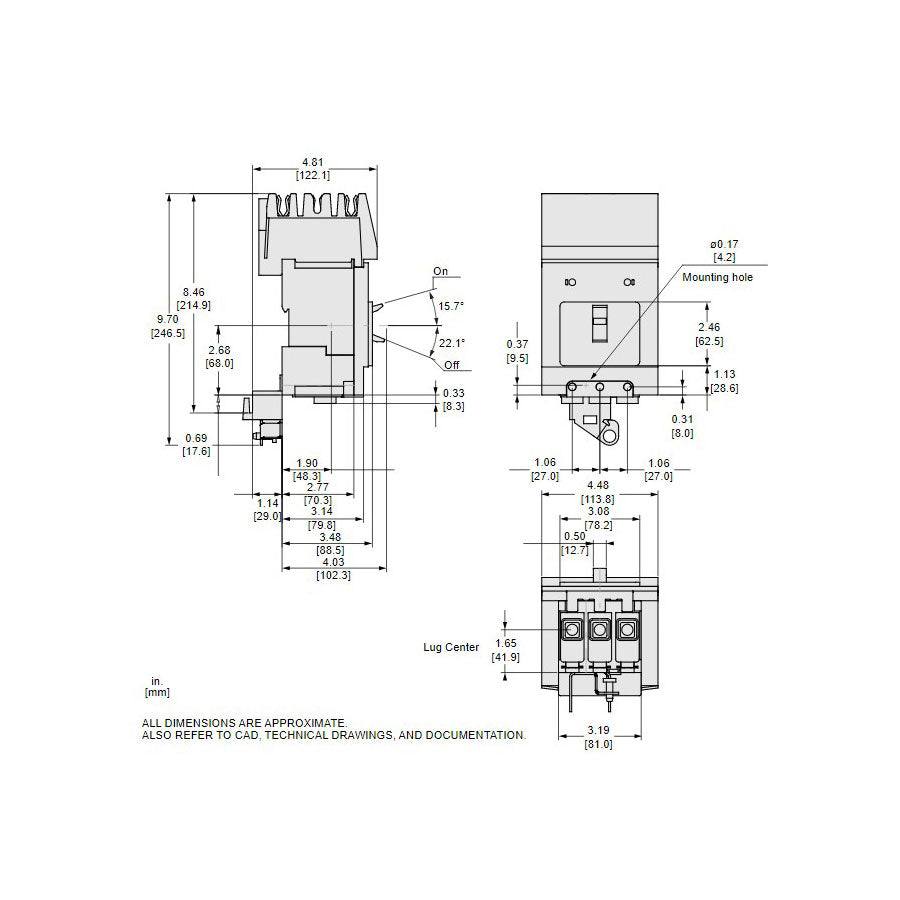

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.25 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Protection: Thermal Magnetic (Long Time & Instantaneous Trip)
  • Breaker Type: Standard
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Standards: UL 489, EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901010890
  • GTIN: 03606481152510
