Schneider Electric BDA36015 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact 125A/BD frame with dimensions of 137 mm H x 81 mm W x 89 mm D and a weight of 4.21 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous protection and is constructed for an operating temperature range of -25 to 70 °C. It complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5, making it suitable for installation in industrial control panels and electrical distribution equipment.

Key Features & Specifications
  • Type: BDA Standard Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Frame Size: 125A/BD
  • Poles: 3
  • AIC Rating: 18kA at 480V
  • Connection: I-Line ON End, Al Mechanical Lug OFF End
  • Phase Connection: ABC
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)

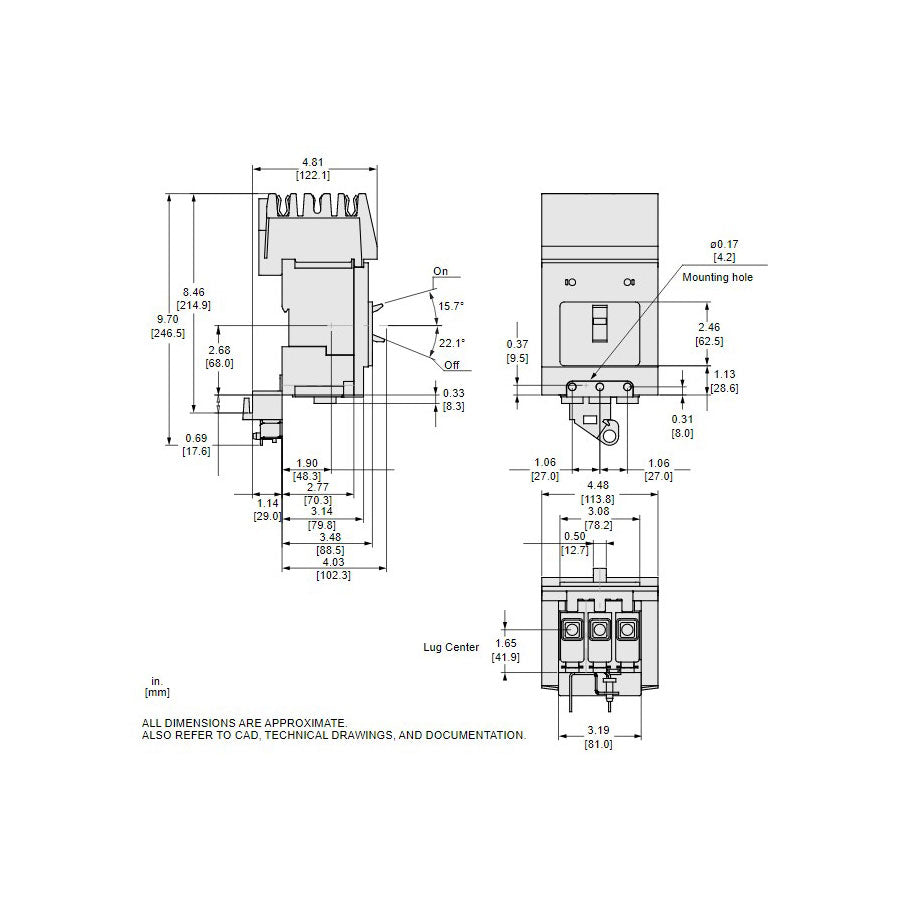

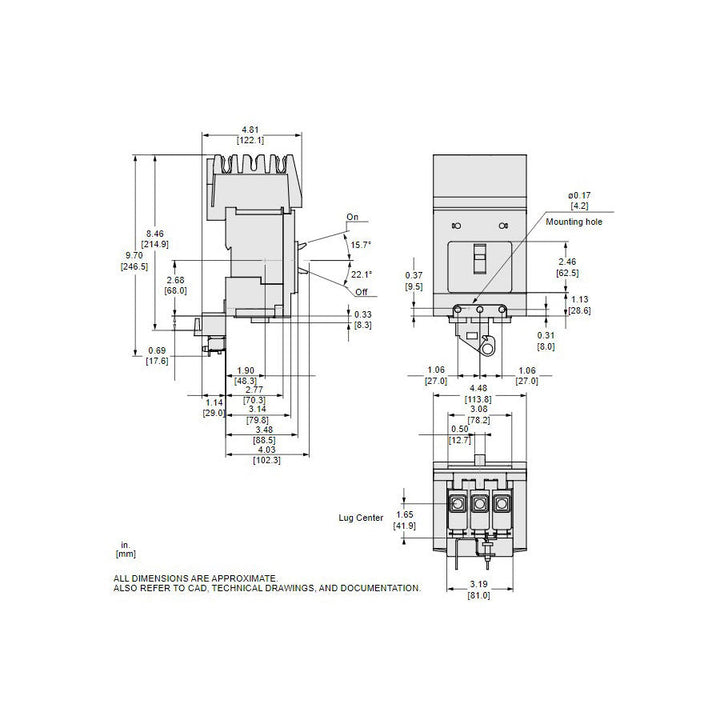

  • Dimensions: 5.4 in (137 mm) H x 3.2 in (81 mm) W x 3.5 in (89 mm) D
  • Weight: 4.21 lb
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Standards: UL 489, CSA C22.2 No. 5, IEC/EN 60947-2, NEMA AB1, GB 14048.2, NMX J-266
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • Functions: Long Time and Instantaneous Trip
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901011583
  • GTIN: 03606481152480
