Square D BDA261002 - Molded Case Circuit Breaker 100A 600V 2-Pole
Square D BDA261002 - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D BDA261002 - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D
Price
Save $412.46
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

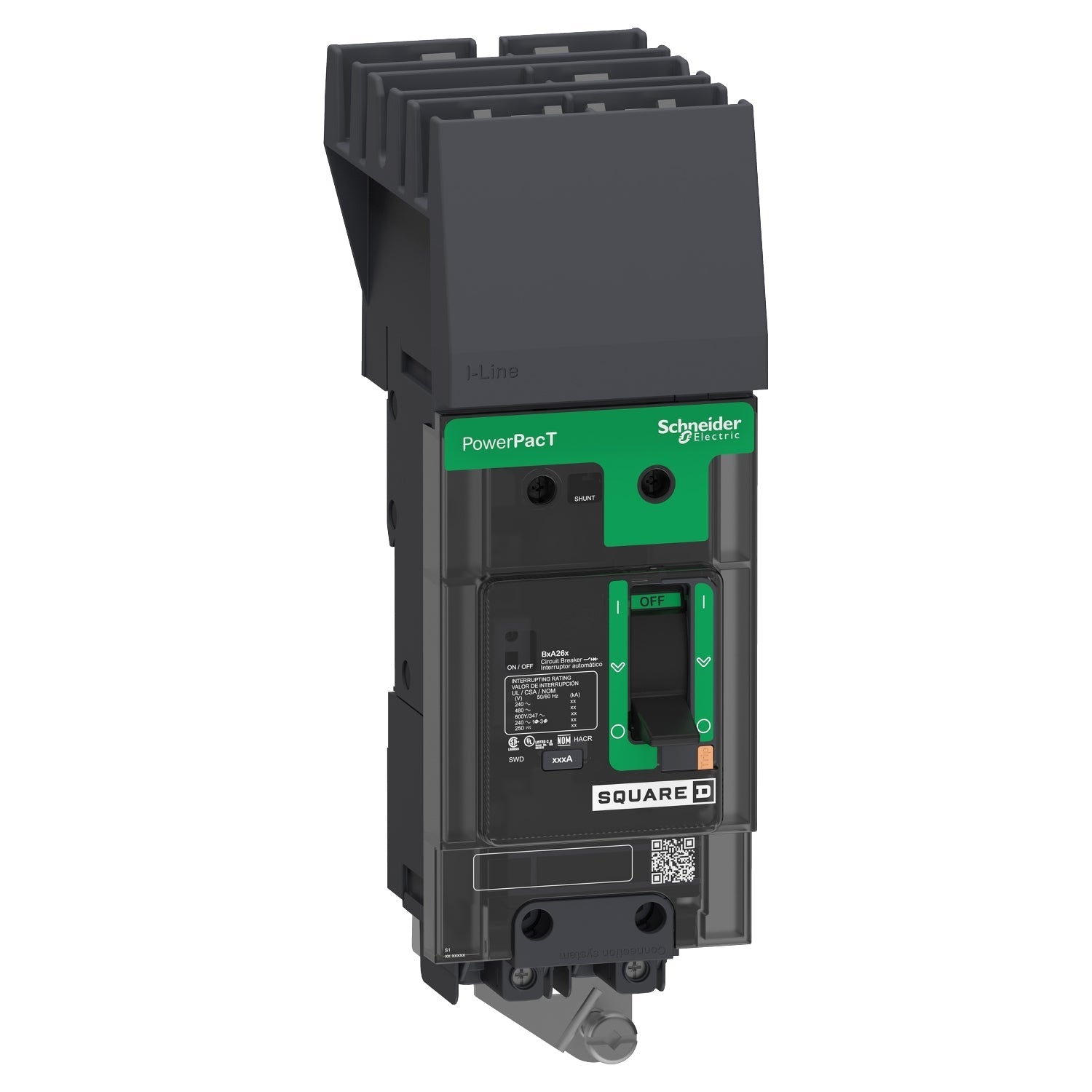

Square D BDA261002 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact 137 mm x 54 mm x 89 mm (HxWxD) frame weighing 3.15 lb. The breaker is constructed for robust performance with a thermal-magnetic trip unit providing long-time and instantaneous protection, and it complies with major industry standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line plug-in connection and two-pole configuration make it suitable for installation in electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Frame Size: 125A/BD
  • AIC Rating: 18kA @ 480V
  • Poles: 2
  • Connection: I-Line Style Plug-In
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Wire Size: AWG 14 to AWG 2/0 (Aluminium/Copper)
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Phase: 1
  • Phase Connection: AC
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Dimensions: 5.4 in (137 mm) H x 2.1 in (54 mm) W x 3.5 in (89 mm) D
  • Weight: 3.15 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901018643
  • GTIN: 03606481152329
