Square D BDA261001 - Molded Case Circuit Breaker 100A 600V (2-Pole)
Square D BDA261001 - Molded Case Circuit Breaker 100A 600V (2-Pole)

Square D BDA261001 - Molded Case Circuit Breaker 100A 600V (2-Pole)

Square D
Price
Save $391.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

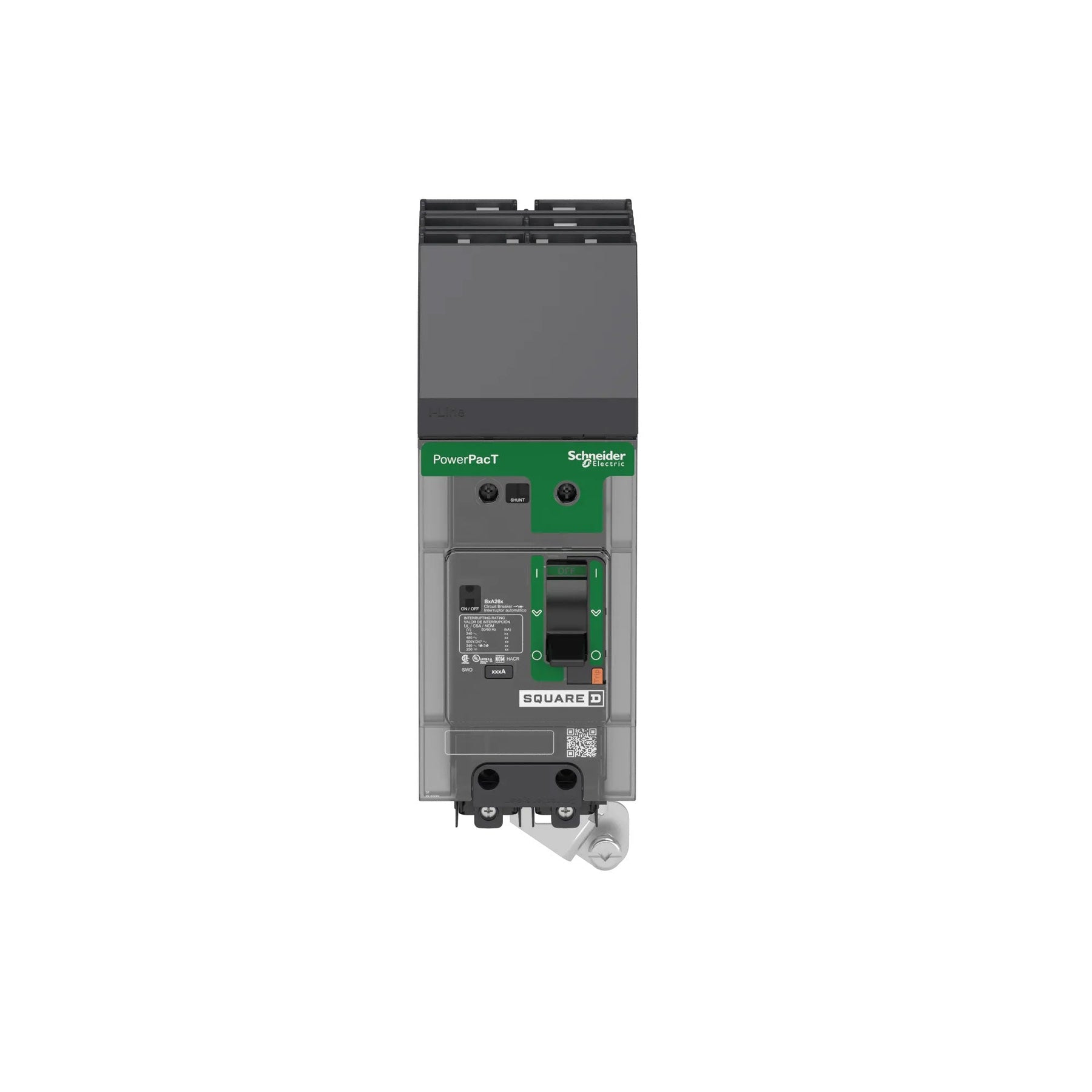

Square D BDA261001 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact D-frame measuring 137 mm H x 54 mm W x 89 mm D and weighing 3.1 lb. The breaker is constructed with thermal-magnetic protection for both long-time and instantaneous trip functions and complies with major global standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line style plug-in connection and AB phase configuration make it suitable for a wide range of commercial and industrial panelboard applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time & Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 137 mm H x 54 mm W x 89 mm D (5.4 in x 2.1 in x 3.5 in)
  • Weight: 3.1 lb
  • Standards: UL 489, CSA C22.2 No 5, IEC 60947-2, NEMA AB1, GB 14048.2, NMX J-266
  • Applications: Industrial and Commercial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line Style, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: D
  • Wire Size: 14 AWG to 2/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Phase Connection: AB
  • MCM Size: Min 14 AWG, Max 2/0 AWG (Cu/Al)
  • Mounting: Plug-In
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901049050
  • GTIN: 00785901049050
