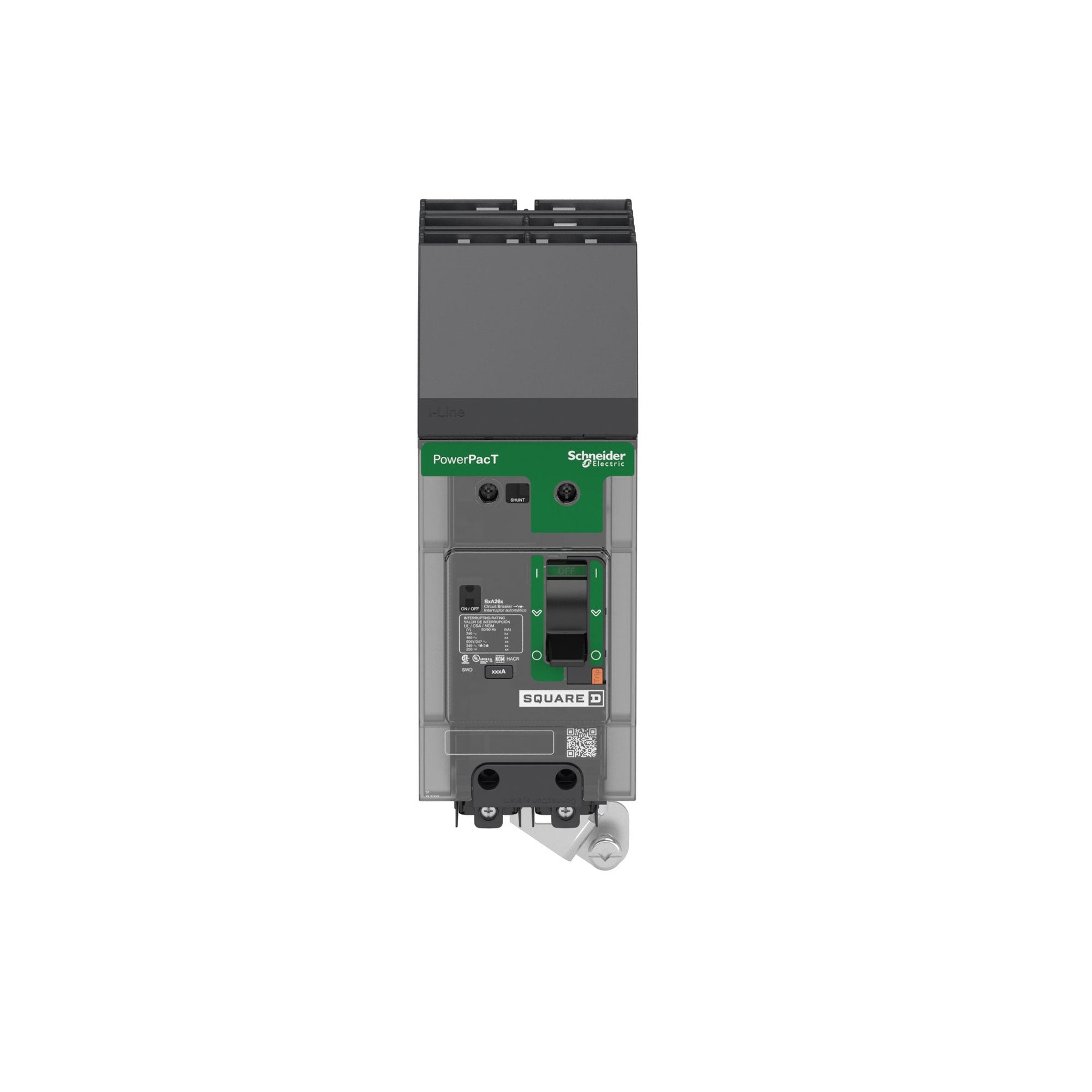

Square D BDA260702 - Molded Case Circuit Breaker 70A 600V 2-Pole
Square D BDA260702 - Molded Case Circuit Breaker 70A 600V 2-Pole

Square D BDA260702 - Molded Case Circuit Breaker 70A 600V 2-Pole

Square D
Price
Save $411.46
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D BDA260702 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 70A current rating and a 600V AC voltage rating, housed within a compact D-frame measuring 137 mm H x 54 mm W x 89 mm D and weighing 3.13 lb. This thermal-magnetic breaker is constructed for I-Line panelboard connection and operates effectively across a temperature range of -25 to 70 °C. It complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5, making it suitable for a wide range of commercial and industrial power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time & Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 137 mm H x 54 mm W x 89 mm D (5.4 in x 2.1 in x 3.5 in)
  • Weight: 3.13 lb
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, NMX J-266, NEMA AB1, GB 14048.2
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Phase: 1
  • Poles: 2
  • AIC Rating: 18kA at 480V
  • Connection: I-Line, Lug Terminal
  • Frame Size: D
  • Wire Size: 14 AWG to 2/0 AWG (Copper/Aluminum)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 060648115225
  • GTIN: 03606481152251
