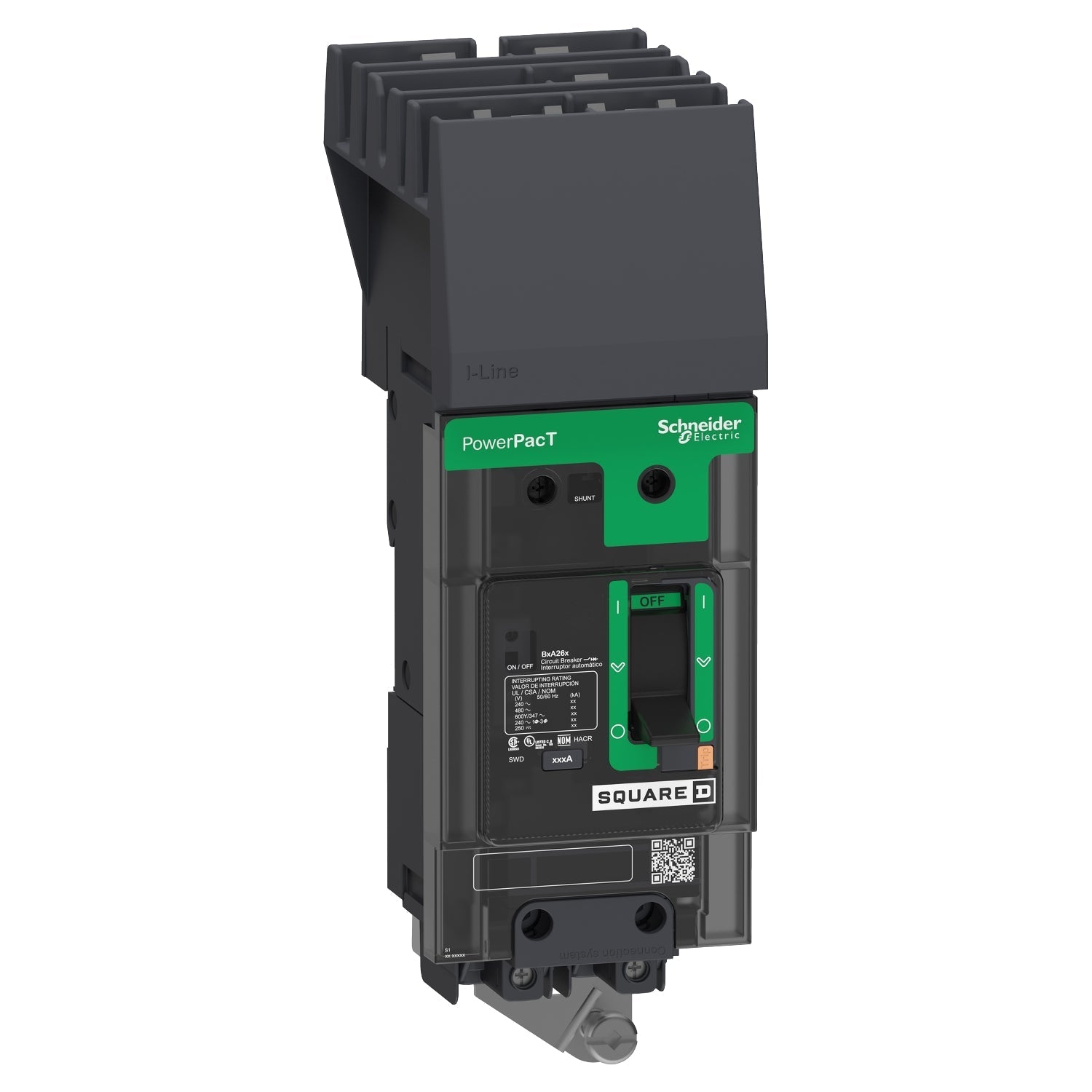

Square D BDA260502 - Molded Case Circuit Breaker 50A 600V 2-Pole
Square D BDA260502 - Molded Case Circuit Breaker 50A 600V 2-Pole

Square D BDA260502 - Molded Case Circuit Breaker 50A 600V 2-Pole

Square D
Price
Save $281.99
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D BDA260502 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact D-frame measuring 137 mm H x 54 mm W x 89 mm D and weighing 3.26 lb. This thermal-magnetic breaker is constructed for I-Line panelboard connection with lug terminals, supporting wire sizes from 14 AWG to 2/0 AWG for copper or aluminum conductors. It complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No. 5, and is typically applied in commercial and industrial power distribution for protecting feeders and branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 5.4 in (137 mm) H x 2.1 in (54 mm) W x 3.5 in (89 mm) D
  • Weight: 3.26 lb
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No. 5, GB 14048.2, NMX J-266, NEMA AB1
  • Applications: Industrial and Commercial Power Distribution, Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Poles: 2
  • Phase: 1
  • Phase Connection: AC
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line
  • Terminal Connection: I-Line, Lug
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: D
  • Trip Type: Thermal-Magnetic
  • Wire Size: 14 AWG to 2/0 AWG (Copper/Aluminum)
  • MCM Size: Min. 14 AWG, Max. 2/0 AWG (Cu/Al)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 060648115217
  • GTIN: 03606481152176
