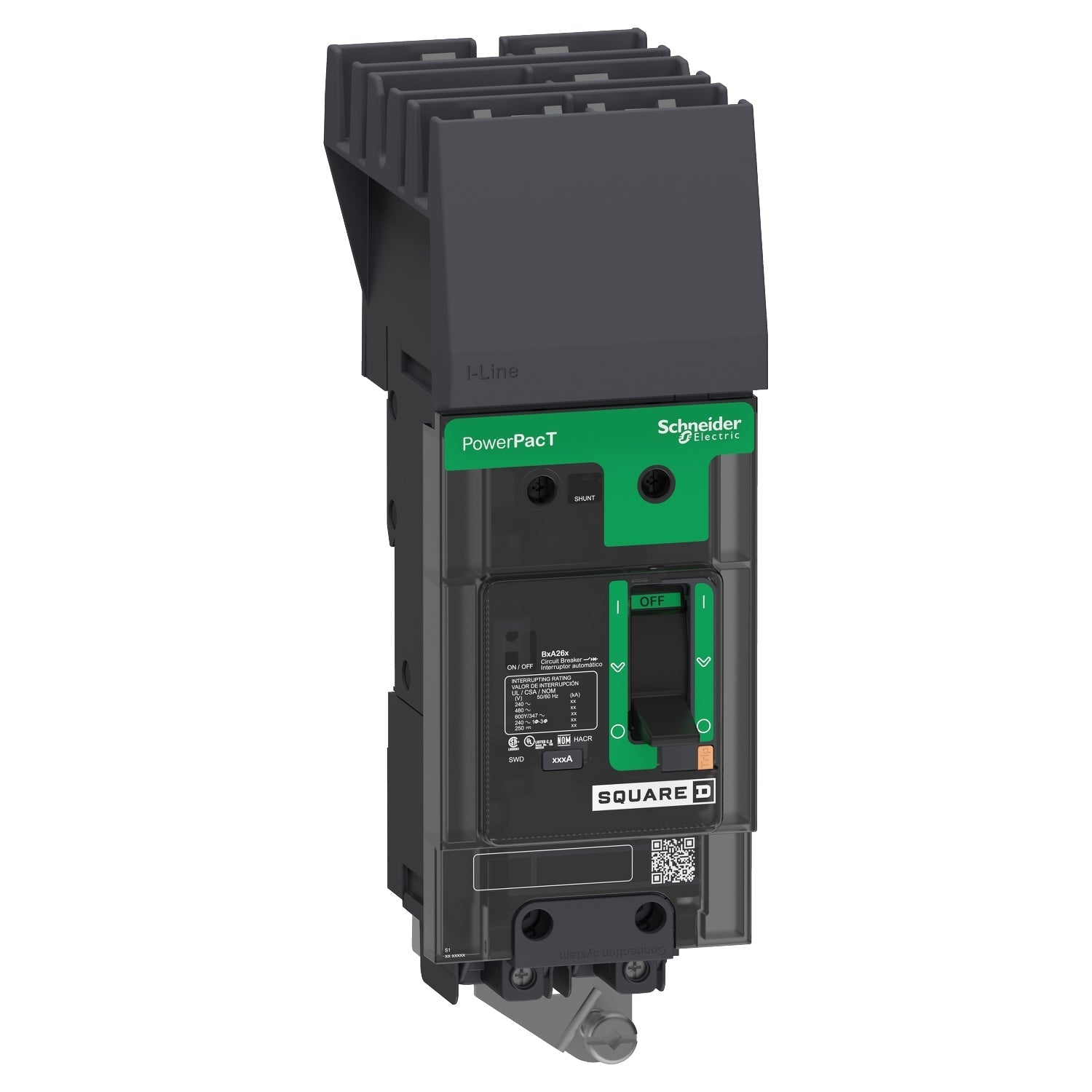

Square D BDA260302 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact D-frame measuring 137 mm H x 54 mm W x 89 mm D and weighing 3.17 lb. This two-pole, thermal-magnetic breaker is constructed for I-Line panelboard connection and complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. It is typically applied in commercial and industrial facilities for branch circuit protection, offering an interrupting capacity of 18kA at 480V AC and an operational temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 5.4 in (137 mm) H x 2.1 in (54 mm) W x 3.5 in (89 mm) D
  • Weight: 3.17 lb
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266, EN/IEC 60947-5-1
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Phase: 1
  • Phase Connection: AC
  • Poles: 2
  • AIC Rating: 18kA @ 480V AC
  • Frame Size: D
  • Connection: I-Line
  • Terminal Connection: I-Line, Lug
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Wire Size: 14 AWG to 2/0 AWG (Copper or Aluminum)
  • MCM Size: Min. 14 AWG, Max. 2/0 AWG (Cu/Al)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 060648115210
  • GTIN: 03606481152107
