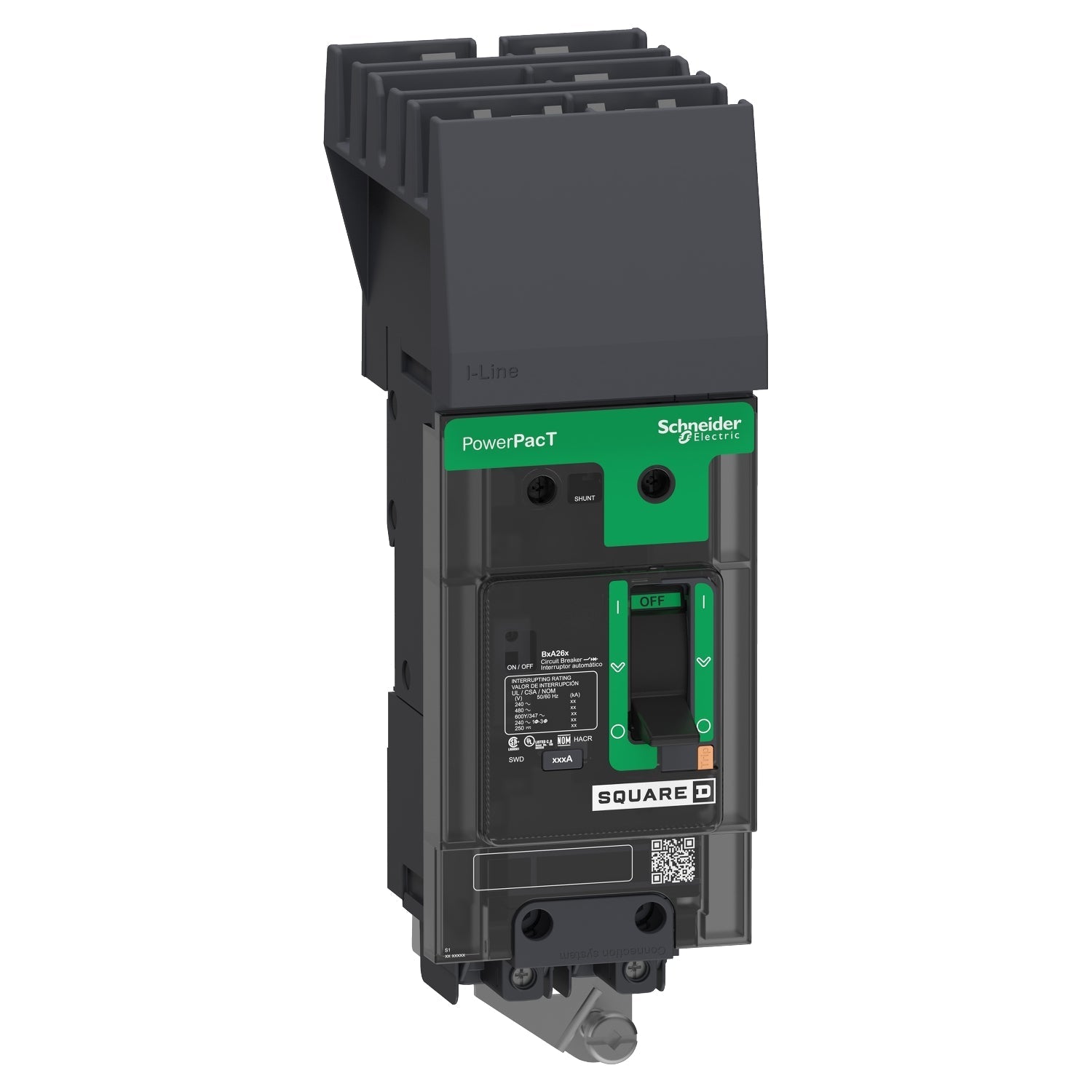

Schneider Electric BDA260201 - Molded Case Circuit Breaker 20A 600V 2-Pole
Schneider Electric BDA260201 - Molded Case Circuit Breaker 20A 600V 2-Pole

Schneider Electric BDA260201 - Molded Case Circuit Breaker 20A 600V 2-Pole

Schneider Electric
Price
Save $248.06
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric BDA260201 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 20A current rating and a 600V voltage rating, housed within a compact 125A/BD frame measuring 137 mm H x 54 mm W x 89 mm D and weighing 1.13 lb. This two-pole, single-phase breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous protection, ensuring compliance with key standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line style plug-in connection and aluminum mechanical lug terminals facilitate integration into electrical distribution equipment and industrial control panels, operating reliably in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Frame Size: 125A/BD
  • Poles: 2
  • Phase: 1
  • Phase Connection: AB
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line Style Plug-In
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • MCM Size: 14 AWG to 2 AWG
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Breaker Type: Standard
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Dimensions: 137 mm H x 54 mm W x 89 mm D (5.4 in x 2.1 in x 3.5 in)
  • Weight: 1.13 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, EN/IEC 60947-5-1, NMX J-266
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901031772
  • GTIN: 03606481152022
