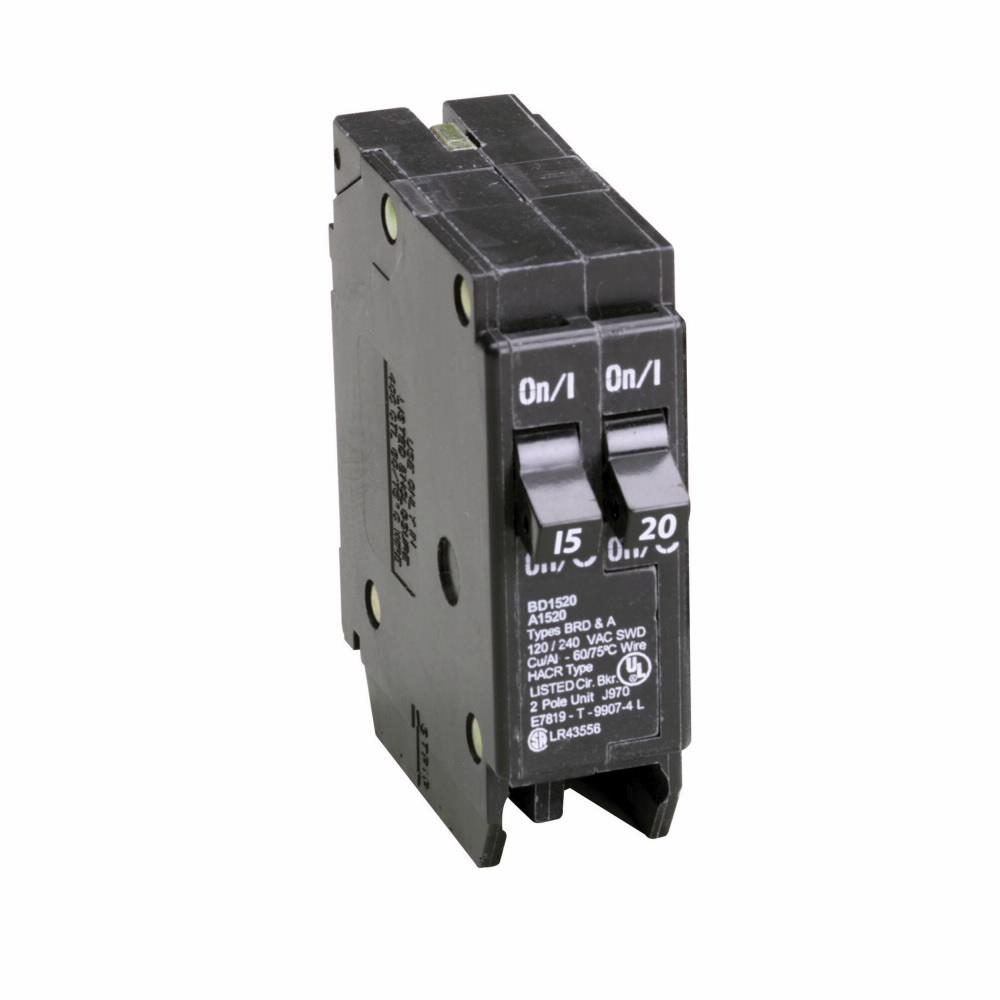

Eaton BD1520 - Tandem Circuit Breaker 20A 120V (10kA AIC)
Eaton BD1520 - Tandem Circuit Breaker 20A 120V (10kA AIC)

Eaton BD1520 - Tandem Circuit Breaker 20A 120V (10kA AIC)

Eaton
Price
Save $124.21
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton BD1520 is a molded case circuit breaker designed for providing reliable overcurrent protection in residential and light commercial electrical systems. It features a 20A current rating and 120V voltage rating, housed within a compact tandem design measuring 2.9 in x 2.6 in x 1 in and weighing 0.35 lb. This thermal magnetic breaker complies with UL 489 and Federal Specifications W-C375 standards, offering a 10kA interrupting rating for robust safety. Its feed-thru connection and compatibility with Type BR loadcenters make it suitable for branch circuit protection in single-phase applications, accommodating copper or aluminum conductors from AWG 14 to AWG 4.

Key Features & Specifications
  • Type: Tandem molded case circuit breaker with thermal magnetic protection and long-time/instantaneous trip functions
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 2.9 in (Depth) x 2.6 in (Height) x 1 in (Width)
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Branch circuit protection in Type BR loadcenters for residential/light commercial use
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Feed-Thru
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Type BR Loadcenters
  • Breaker Type: Tandem
  • Wire Size: AWG 14 to AWG 4, Cu/Al
  • Certification: UL 489, Federal Specifications Classification W-C375
  • Family: BD Series
  • Country of Origin: Dominican Republic
  • Weight: 0.35 lb


Product Identification
  • UPC: 786676369107
  • GTIN: 00786676369107
