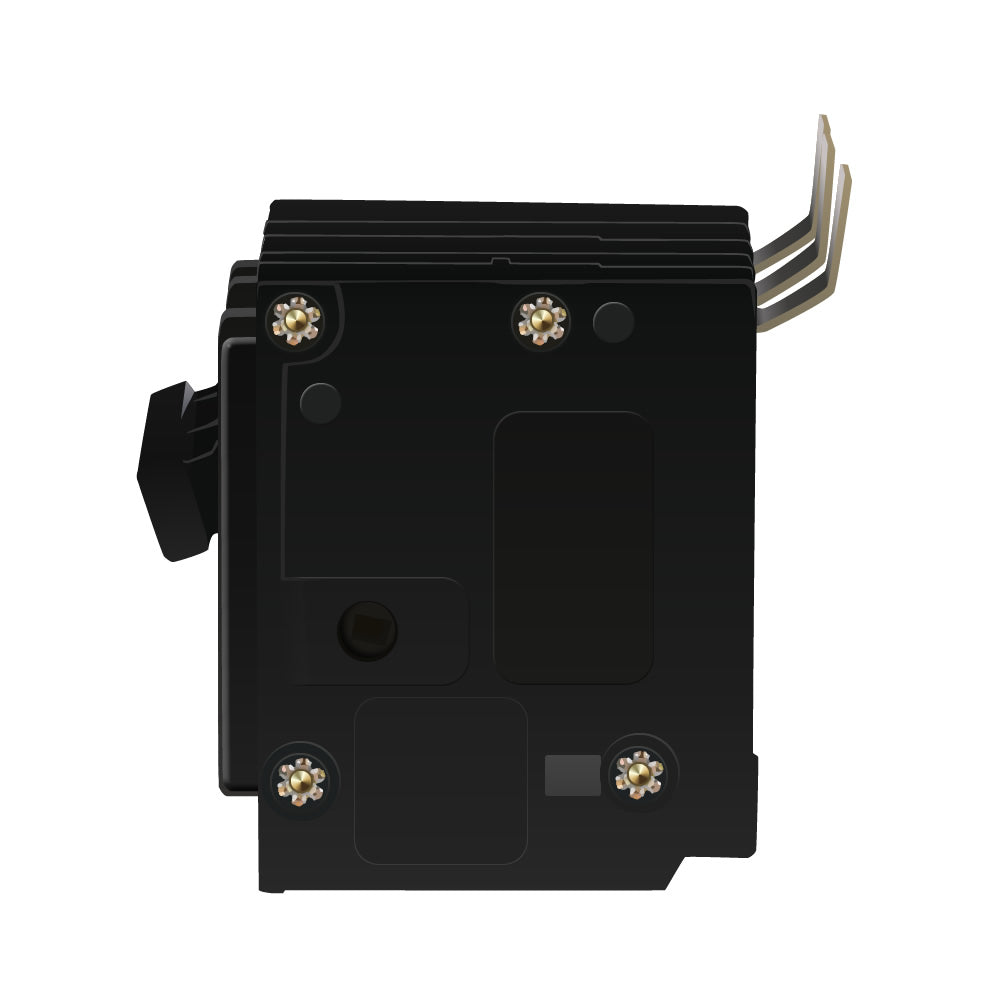

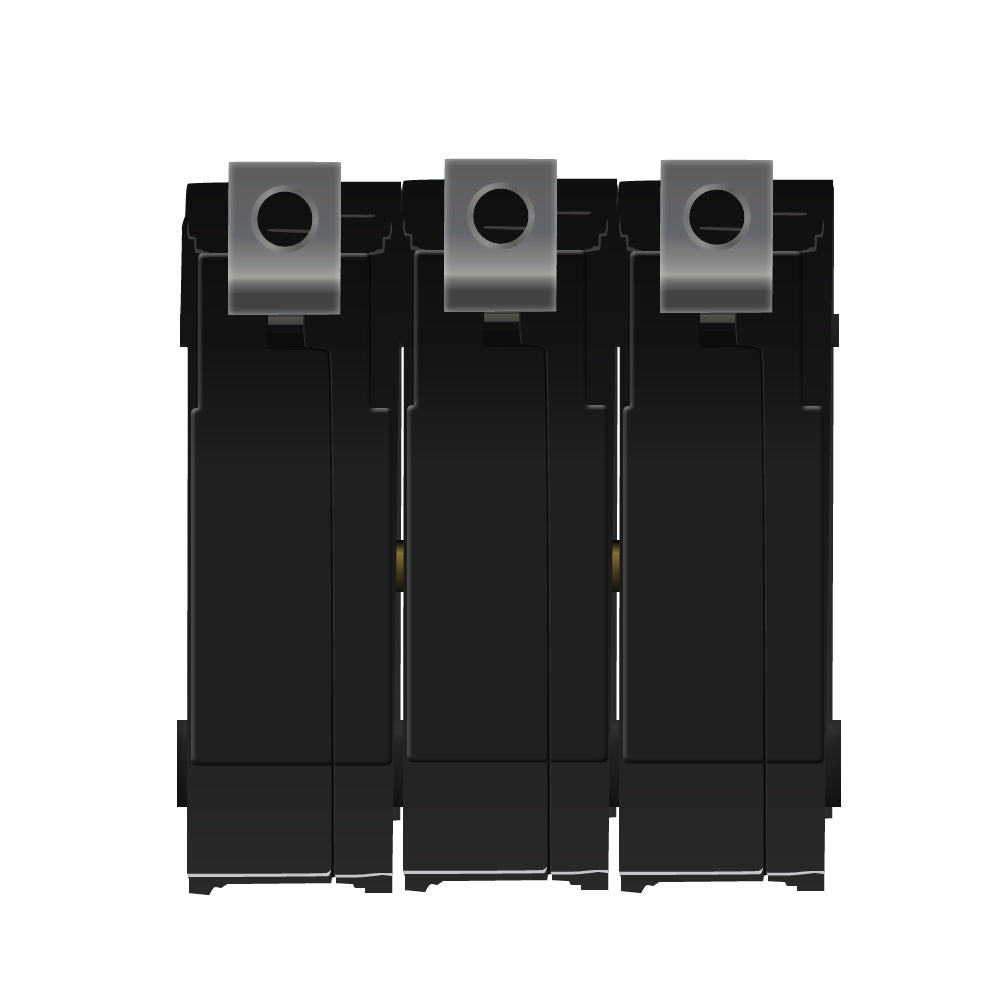

Eaton Cutler-Hammer BAB3045H - Molded Case Circuit Breaker 45A 3P (10kA AIC)
Eaton Cutler-Hammer BAB3045H - Molded Case Circuit Breaker 45A 3P (10kA AIC)
Eaton Cutler-Hammer BAB3045H - Molded Case Circuit Breaker 45A 3P (10kA AIC)
Eaton Cutler-Hammer BAB3045H - Molded Case Circuit Breaker 45A 3P (10kA AIC)

Eaton Cutler-Hammer BAB3045H - Molded Case Circuit Breaker 45A 3P (10kA AIC)

Cutler Hammer
Price
Save $547
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Cutler-Hammer BAB3045H is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase electrical systems. It features a 45A current rating and a 240V AC voltage rating, housed within a compact 3.5 in x 3.5 in x 3 in bolt-on enclosure weighing 0.95 lb. This thermal magnetic breaker is HACR rated and complies with UL and CSA standards, offering both long-time and instantaneous (LI) trip functions. It is typically applied in industrial and commercial panelboards for protecting feeder and branch circuits rated for 10kA interrupting capacity at 240V AC, accommodating wire sizes from 14 to 4 AWG for aluminum or copper load connections.

Key Features & Specifications
  • Type: BAB Series, Molded Case, Thermal Magnetic Protection with LI (Long-time & Instantaneous) Functions
  • Voltage Rating: 240V AC
  • Current Rating: 45A
  • Dimensions: 3.5 in (L) x 3.5 in (H) x 3 in (W)
  • Standards: HACR Rated, UL Listed, CSA Certified
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 3
  • AIC Rating: 10kA @ 240V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Wire Size: 14 To 4 AWG (Aluminum/Copper Load)
  • Certification: UL Listed, CSA Certified
  • Family: Quicklag
  • Country of Origin: Dominican Republic
  • Weight: 0.95 lb


Product Identification
  • UPC: 786679303450
  • GTIN: 00786679303450
