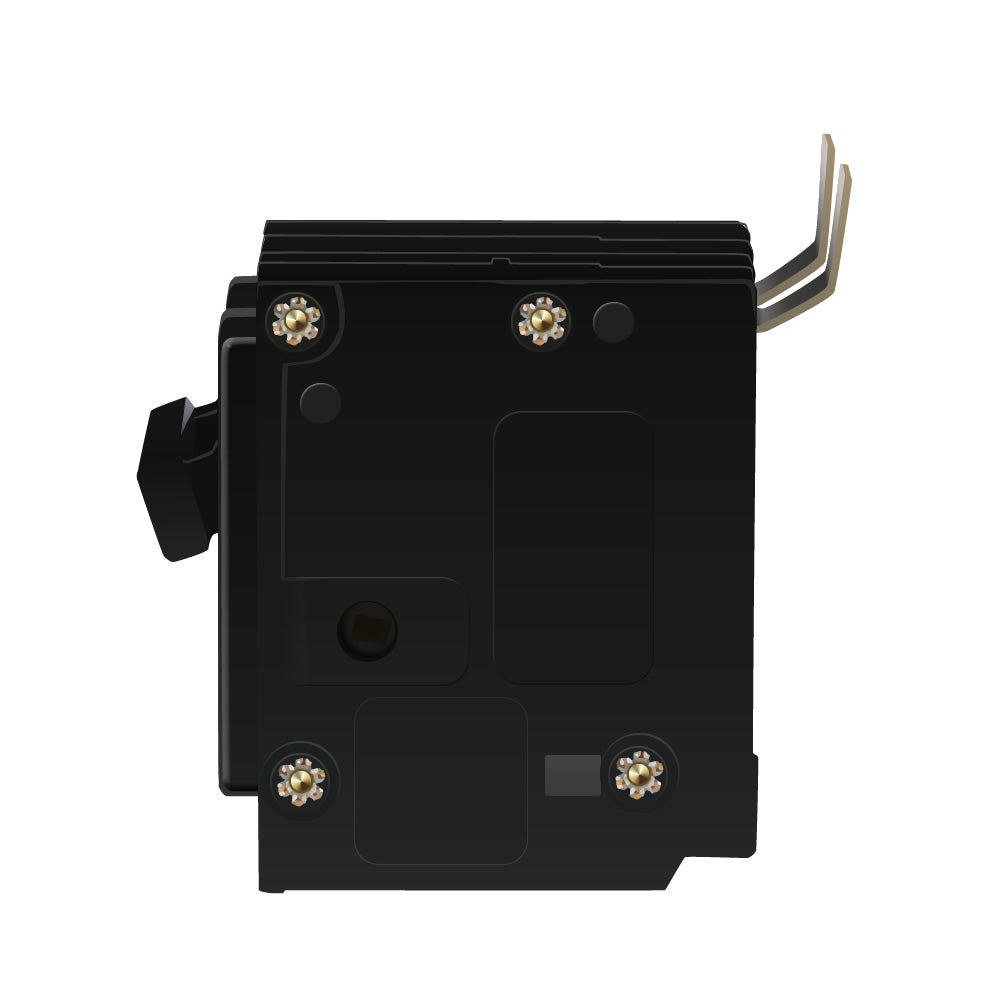

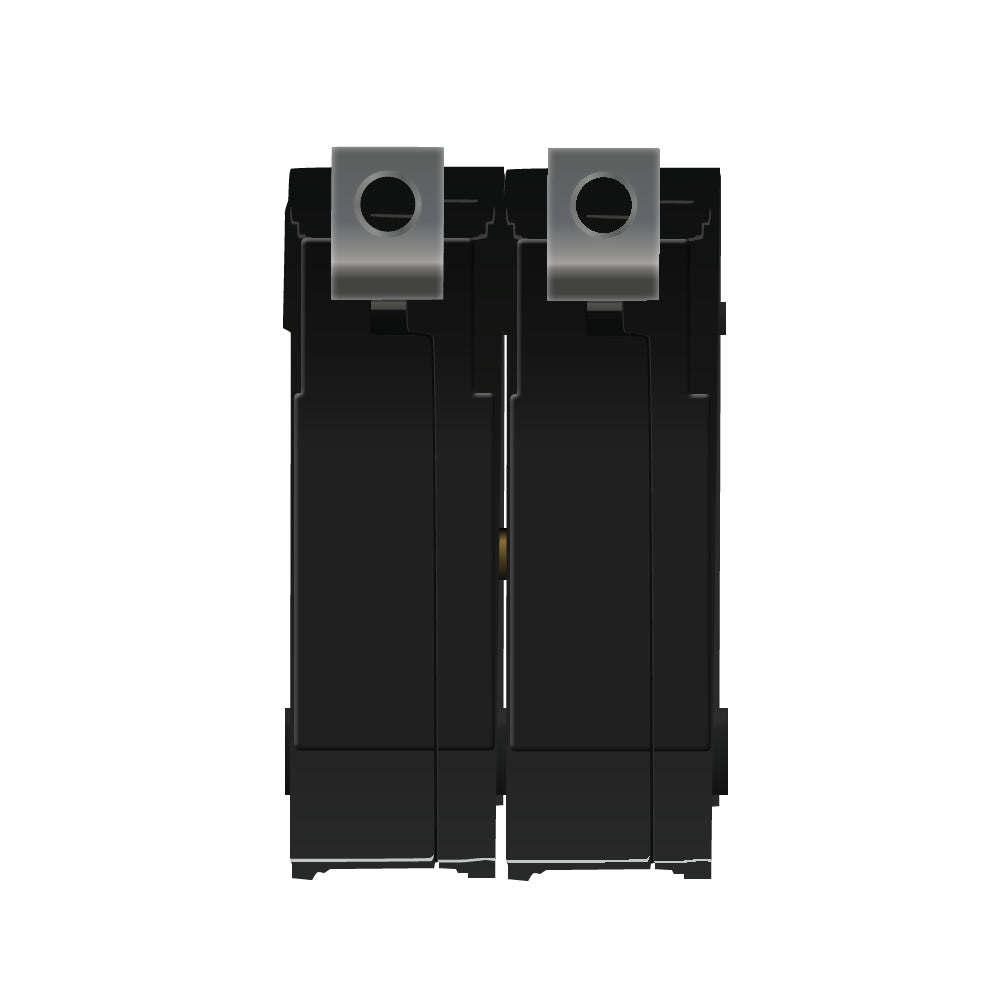

Cutler Hammer BAB2125 - Molded Case Circuit Breaker 125A 2-Pole
Cutler Hammer BAB2125 - Molded Case Circuit Breaker 125A 2-Pole
Cutler Hammer BAB2125 - Molded Case Circuit Breaker 125A 2-Pole
Cutler Hammer BAB2125 - Molded Case Circuit Breaker 125A 2-Pole

Cutler Hammer BAB2125 - Molded Case Circuit Breaker 125A 2-Pole

Cutler Hammer
Price
Save $968.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BAB2125 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 125A current rating and a 240V AC voltage rating for single-phase applications, with a 10kA interrupting capacity at 240V. The compact, bolt-on unit measures 3.8 in x 4.8 in x 2.3 in (L/D x H x W) and weighs 0.65 lb, utilizing a thermal-magnetic trip mechanism for both long-time delay and instantaneous short-circuit protection. This breaker is UL Listed and CSA Certified, meeting HACR standards for use with heating, air conditioning, and refrigeration equipment. It is suitable for panelboards and switchboards within an operational temperature range of -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BAB Series, Thermal-Magnetic Protection with LI (Long-time & Instantaneous) Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 125A
  • Dimensions: 3.8 in (Length/Depth) x 4.8 in (Height) x 2.3 in (Width)
  • Standards: HACR Rated
  • Applications: Industrial and Commercial Panelboards, Switchboards, HVAC/R Equipment Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Certification: UL Listed, CSA Certified
  • Family: Quicklag
  • Country of Origin: Dominican Republic
  • Weight: 0.65 lb


Product Identification
  • UPC: 786679303054
  • GTIN: 00786679303054
