Cutler Hammer BAB2100S - Molded Case Breaker 100A 2-Pole (10kA AIC)
Cutler Hammer BAB2100S - Molded Case Breaker 100A 2-Pole (10kA AIC)
Cutler Hammer BAB2100S - Molded Case Breaker 100A 2-Pole (10kA AIC)
Cutler Hammer BAB2100S - Molded Case Breaker 100A 2-Pole (10kA AIC)
Cutler Hammer BAB2100S - Molded Case Breaker 100A 2-Pole (10kA AIC)
Cutler Hammer BAB2100S - Molded Case Breaker 100A 2-Pole (10kA AIC)

Cutler Hammer BAB2100S - Molded Case Breaker 100A 2-Pole (10kA AIC)

Cutler Hammer
Price
Save $855.69
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

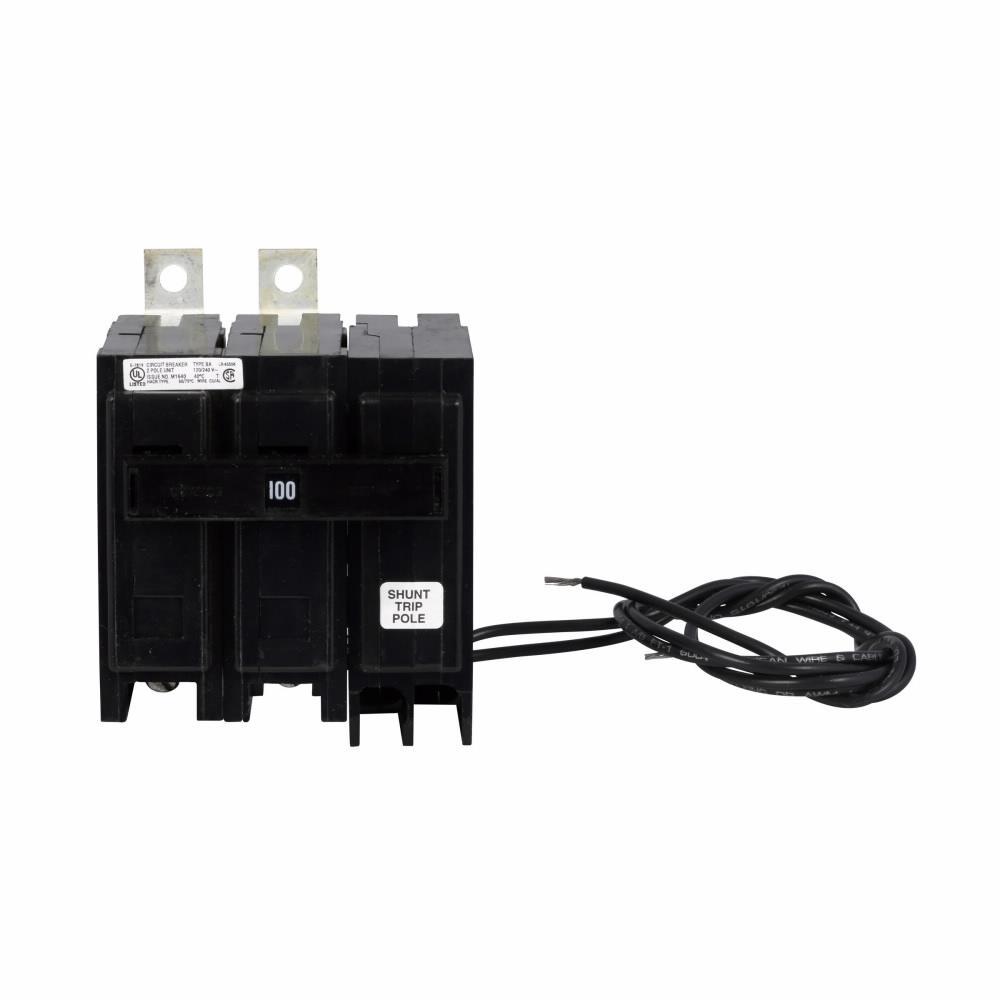

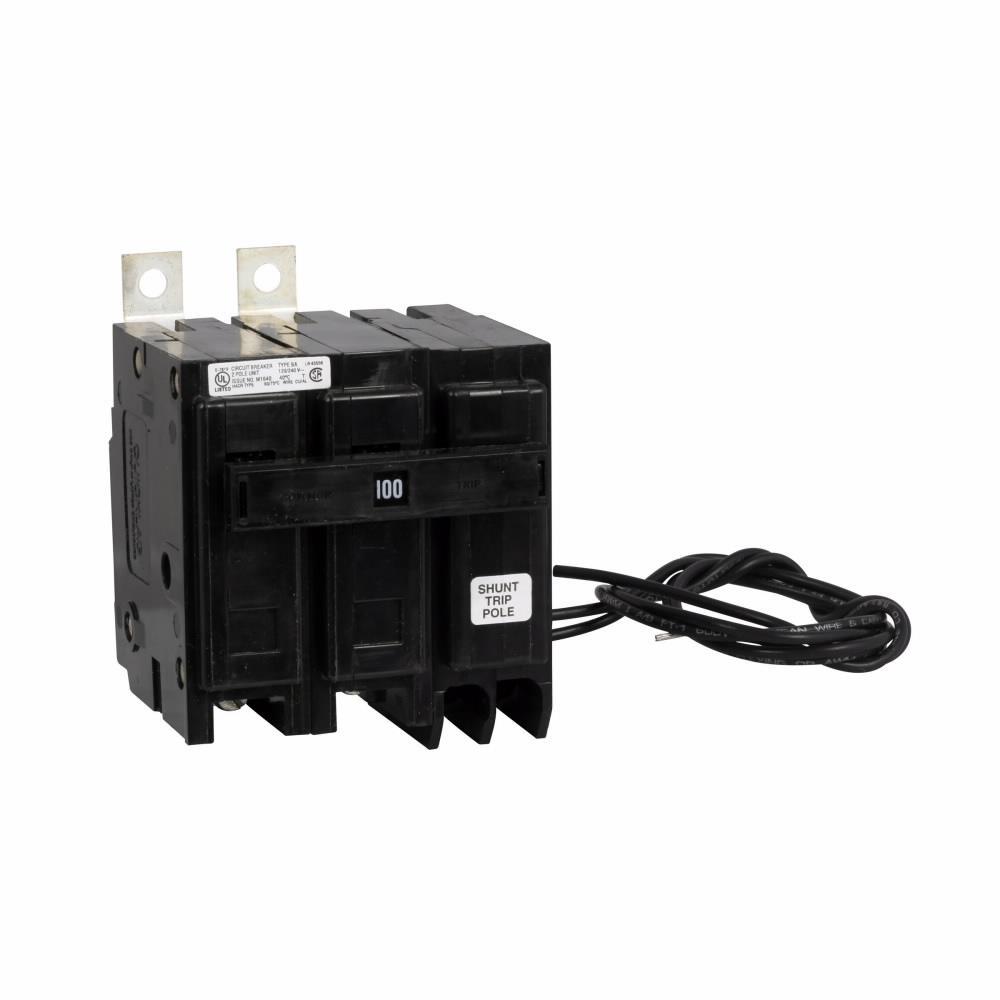

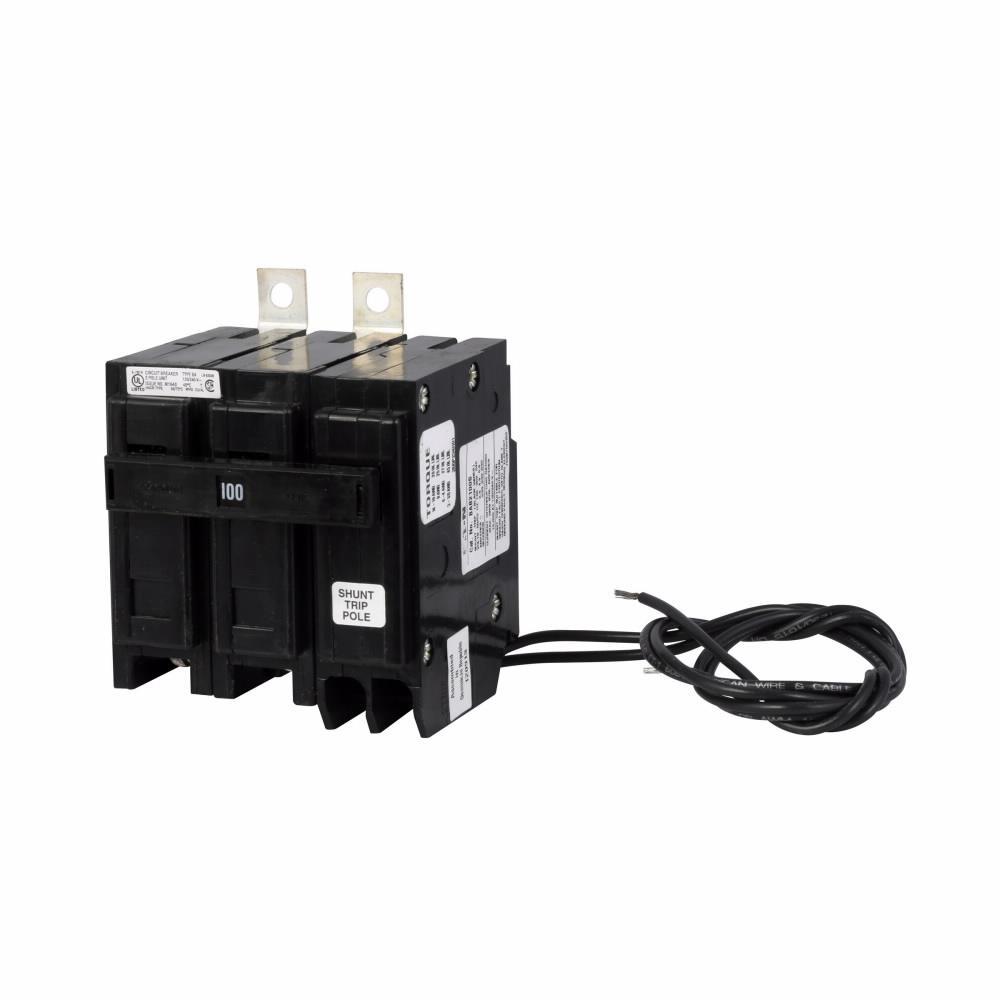

Cutler Hammer BAB2100S is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed within a compact, bolt-on configuration measuring 3.8 in (D) x 4.9 in (H) x 3.3 in (W) and weighing 1 lb. This thermal magnetic breaker is HACR rated and complies with UL and CSA standards, offering 10kA interrupting capacity at 240V for robust fault protection. Its LI (Long-time and Instantaneous) trip functions and operating temperature range of -25°C to 70°C make it suitable for protecting feeders and branch circuits in panelboards and switchboards, and it is supplied complete with a 120V shunt trip for remote tripping capability.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 3.8 in x 4.9 in x 3.3 in (Depth x Height x Width)
  • Standards: HACR Rated
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Wire Size: 8 To 1/0 AWG (Aluminum/Copper)
  • Certification: UL Listed, CSA Certified
  • Additional Info: Complete with 120V Shunt Trip


Product Identification
  • UPC: 786679509630
  • GTIN: 00786679509630
