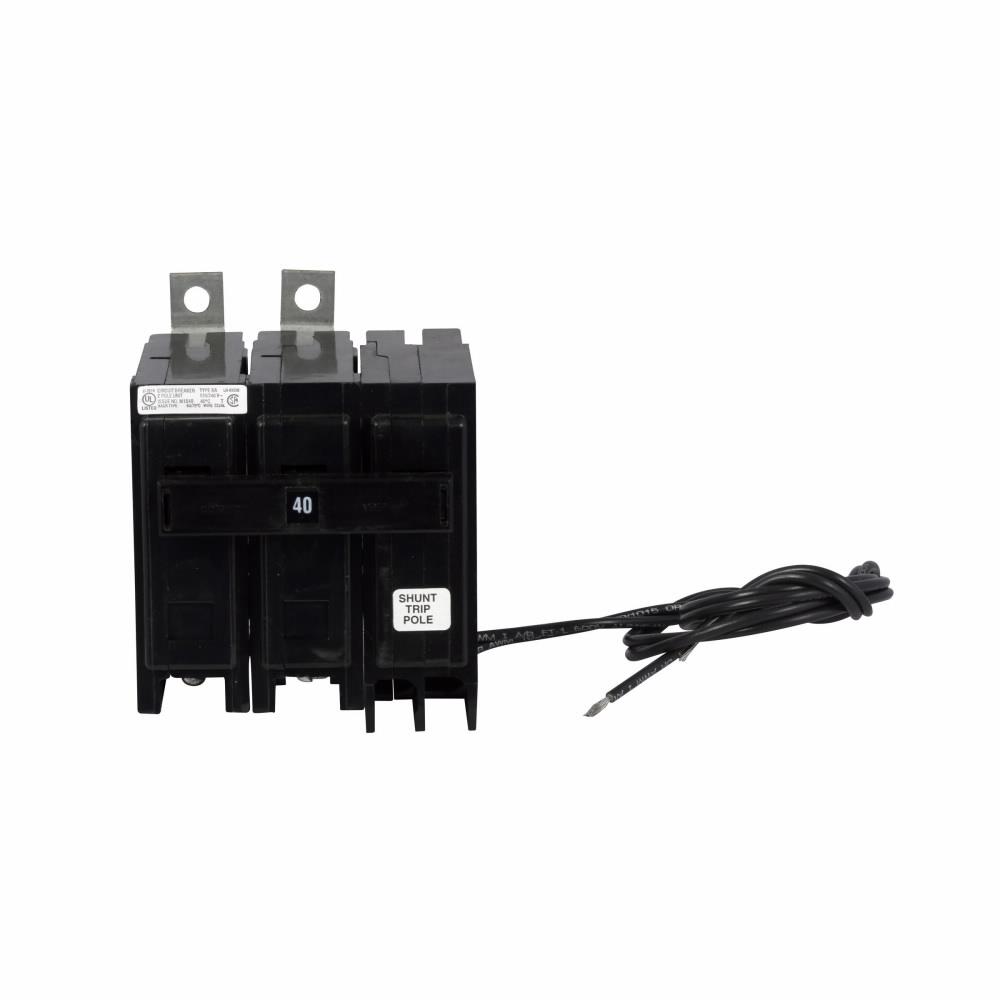

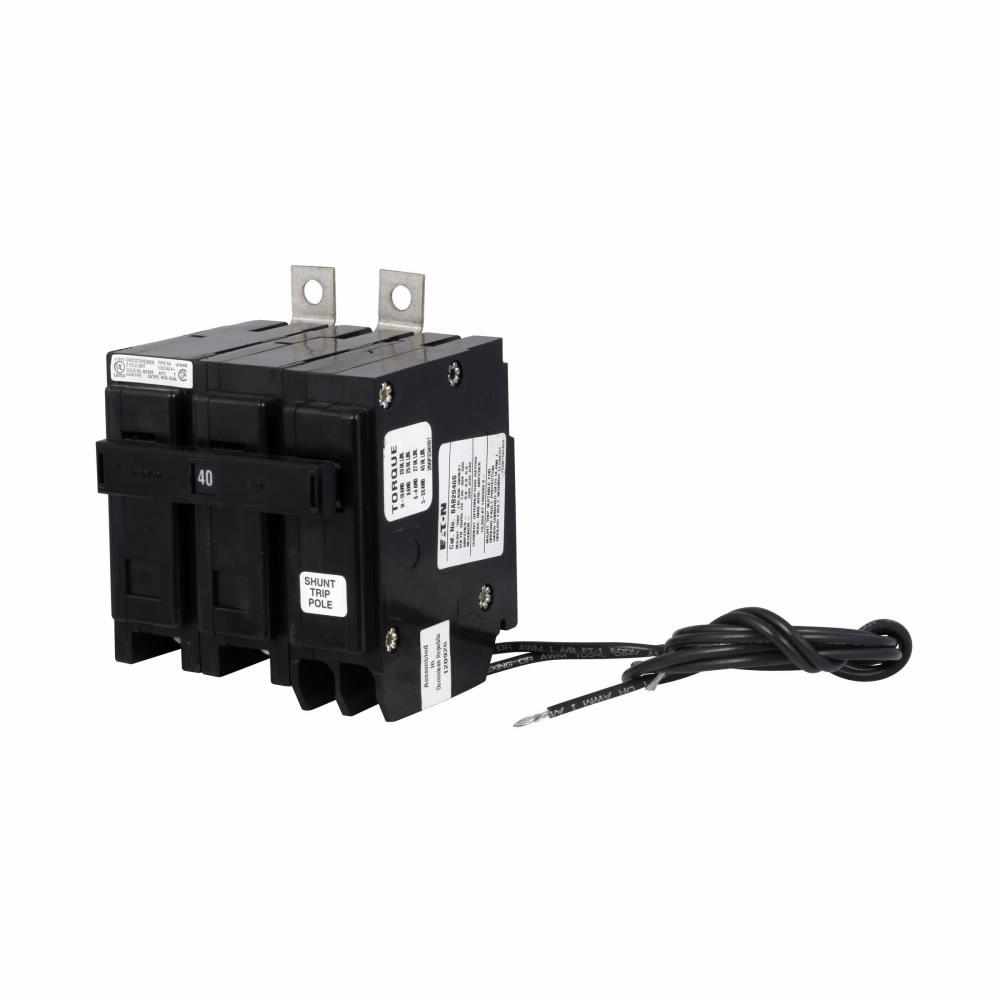

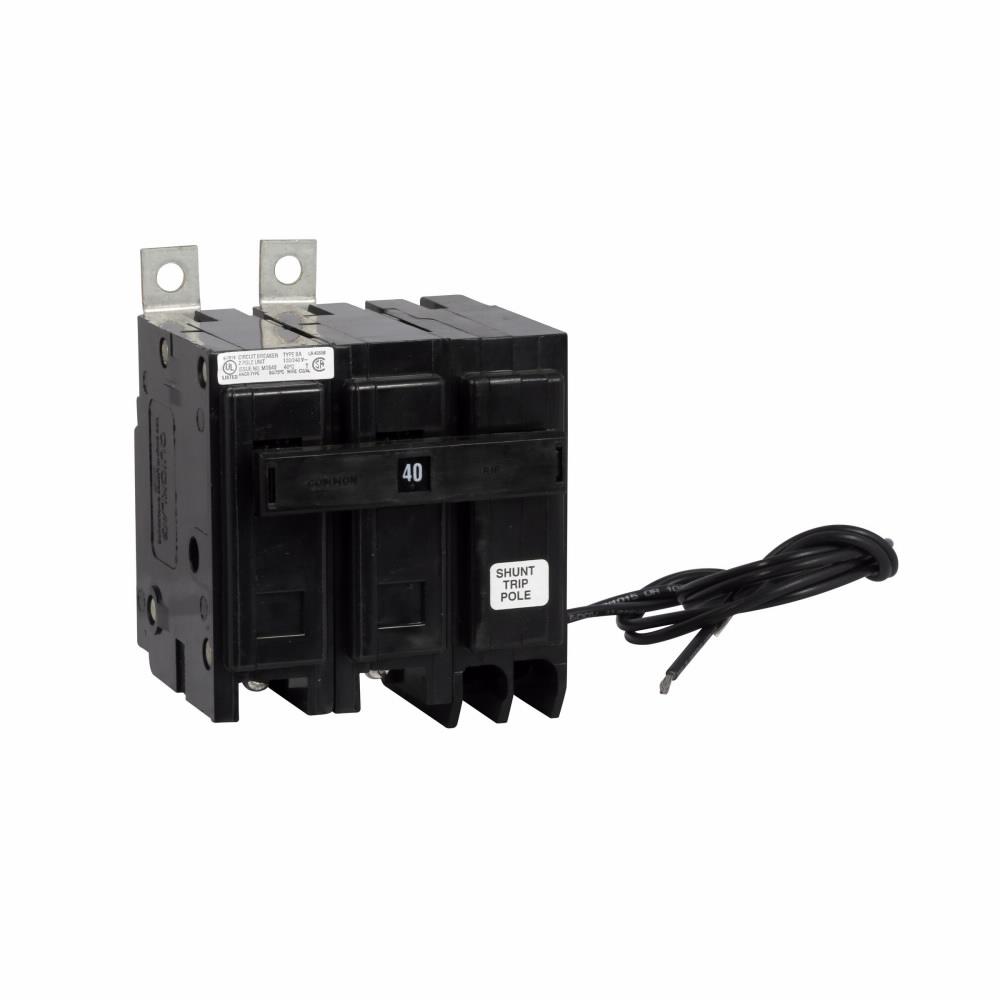

Cutler-Hammer BAB2040S - Molded Case Circuit Breaker, 40A 2-Pole
Cutler-Hammer BAB2040S - Molded Case Circuit Breaker, 40A 2-Pole
Cutler-Hammer BAB2040S - Molded Case Circuit Breaker, 40A 2-Pole
Cutler-Hammer BAB2040S - Molded Case Circuit Breaker, 40A 2-Pole
Cutler-Hammer BAB2040S - Molded Case Circuit Breaker, 40A 2-Pole
Cutler-Hammer BAB2040S - Molded Case Circuit Breaker, 40A 2-Pole

Cutler-Hammer BAB2040S - Molded Case Circuit Breaker, 40A 2-Pole

Cutler Hammer
Price
Save $580.28
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler-Hammer BAB2040S is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 40A current rating and a 240V AC voltage rating, housed within a compact, bolt-on configuration measuring 3.8 in (L) x 4.9 in (H) x 3.2 in (W) and weighing 0.95 lb. This two-pole, single-phase breaker is UL Listed and CSA Certified, meeting HACR standards for heating, air conditioning, and refrigeration equipment applications. Its thermal-magnetic protection mechanism provides both long-time and instantaneous (LI) trip functions with an interrupting capacity of 10kA at 240V, and it operates effectively across a temperature range of -25°C to 70°C (-13°F to 158°F). The unit is complete with a 120V shunt trip accessory for remote tripping capabilities, making it suitable for panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 40A
  • Dimensions: 3.8 in x 4.9 in x 3.2 in (Length x Height x Width)
  • Standards: HACR rated
  • Applications: Industrial & Commercial Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • AIC rating: 10kA @ 240V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL Listed, CSA Certified
  • Additional Info: Complete with 120V Shunt Trip
  • Family: Quicklag
  • Weight: 0.95 lb


Product Identification
  • UPC: 786679369784
  • GTIN: 00786679369784
