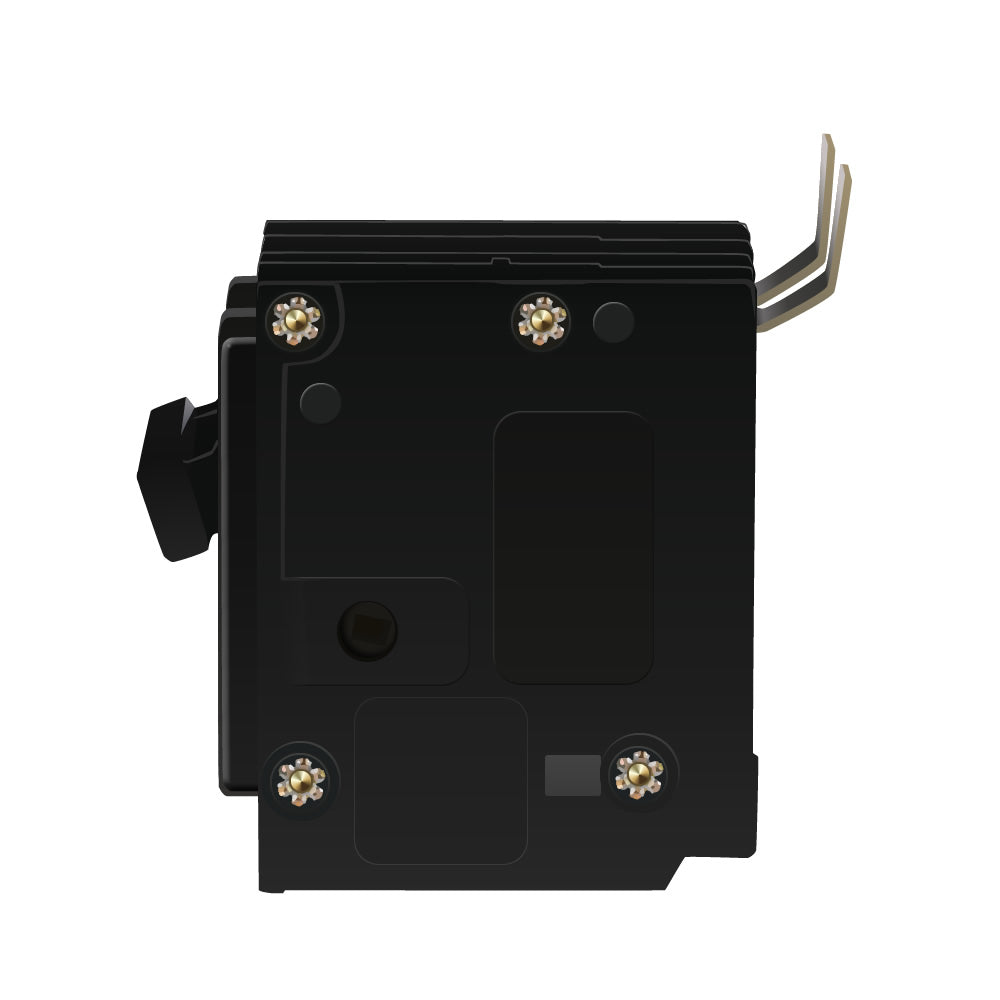

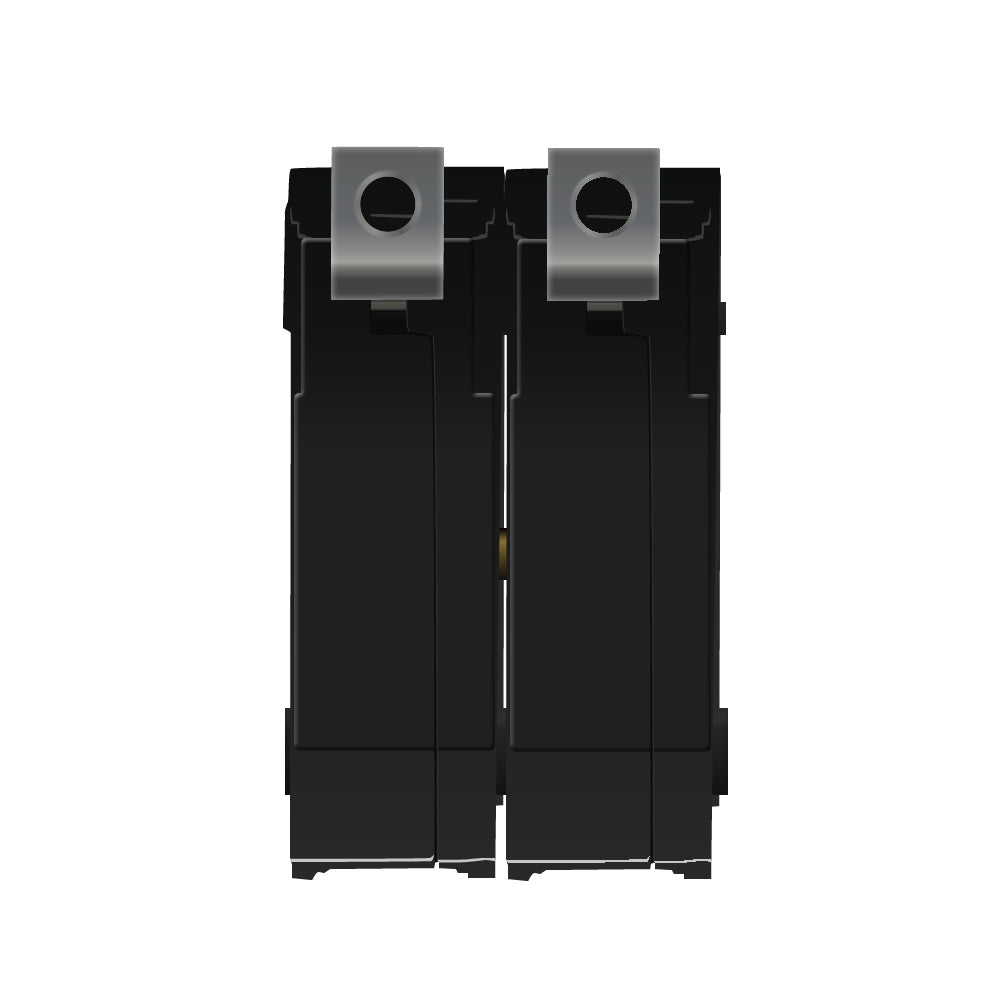

Cutler Hammer BAB2040 - Molded Case Circuit Breaker 40A 2-Pole
Cutler Hammer BAB2040 - Molded Case Circuit Breaker 40A 2-Pole
Cutler Hammer BAB2040 - Molded Case Circuit Breaker 40A 2-Pole
Cutler Hammer BAB2040 - Molded Case Circuit Breaker 40A 2-Pole

Cutler Hammer BAB2040 - Molded Case Circuit Breaker 40A 2-Pole

Cutler Hammer
Price
Save $163.79
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer BAB2040 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 40A current rating and a 240V AC voltage rating, suitable for single-phase applications. The compact, bolt-on unit measures 3.1" x 2.9" x 2" and weighs 0.6 lb, utilizing a thermal magnetic trip mechanism for both long-time and instantaneous protection. It is HACR rated for HVAC equipment and complies with UL and CSA standards, with an interrupting capacity of 10kA at 240V. This breaker is engineered for operation in temperatures from -25°C to 70°C and is commonly applied in panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 40A
  • Dimensions: 3.1 in (L) x 2.9 in (H) x 2 in (W)
  • Standards: HACR rated, UL Listed, CSA Certified
  • Applications: Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25°C to 70°C
  • Phase: 1
  • AIC rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: BAB
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Family: Quicklag
  • Weight: 0.6 lb


Product Identification
  • UPC: 78667930240
  • GTIN: 00786679302408
