Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole
Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole
Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole
Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole
Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole
Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole
Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole
Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole

Cutler Hammer BAB2030S - Molded Case Circuit Breaker 30A 2-Pole

Cutler Hammer
Price
Save $588.96
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

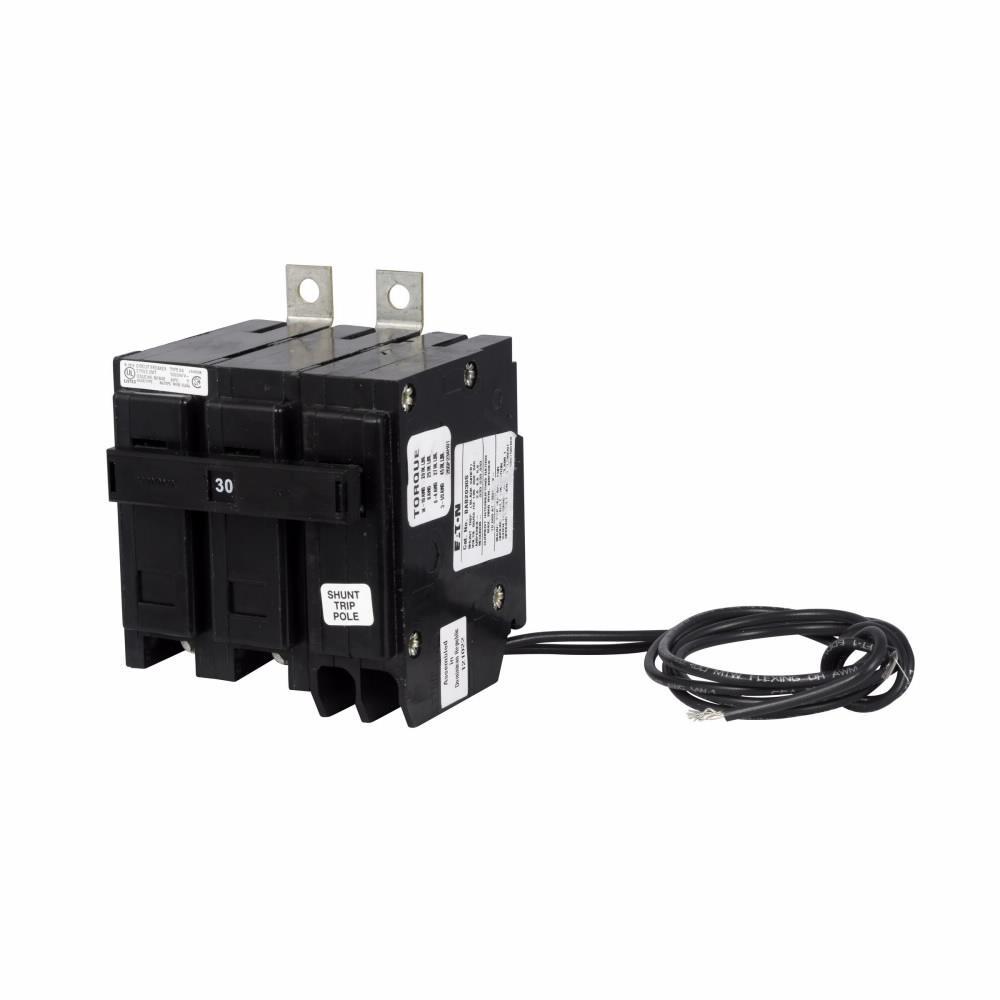

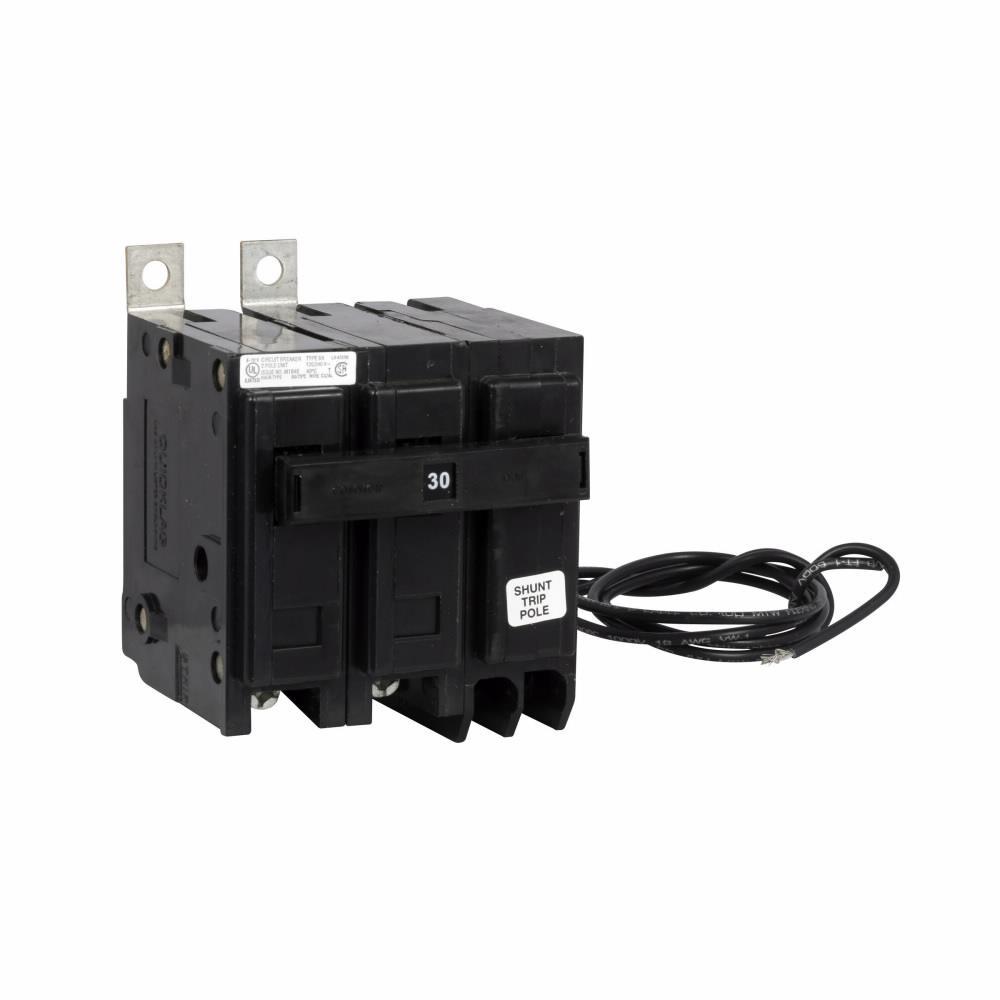

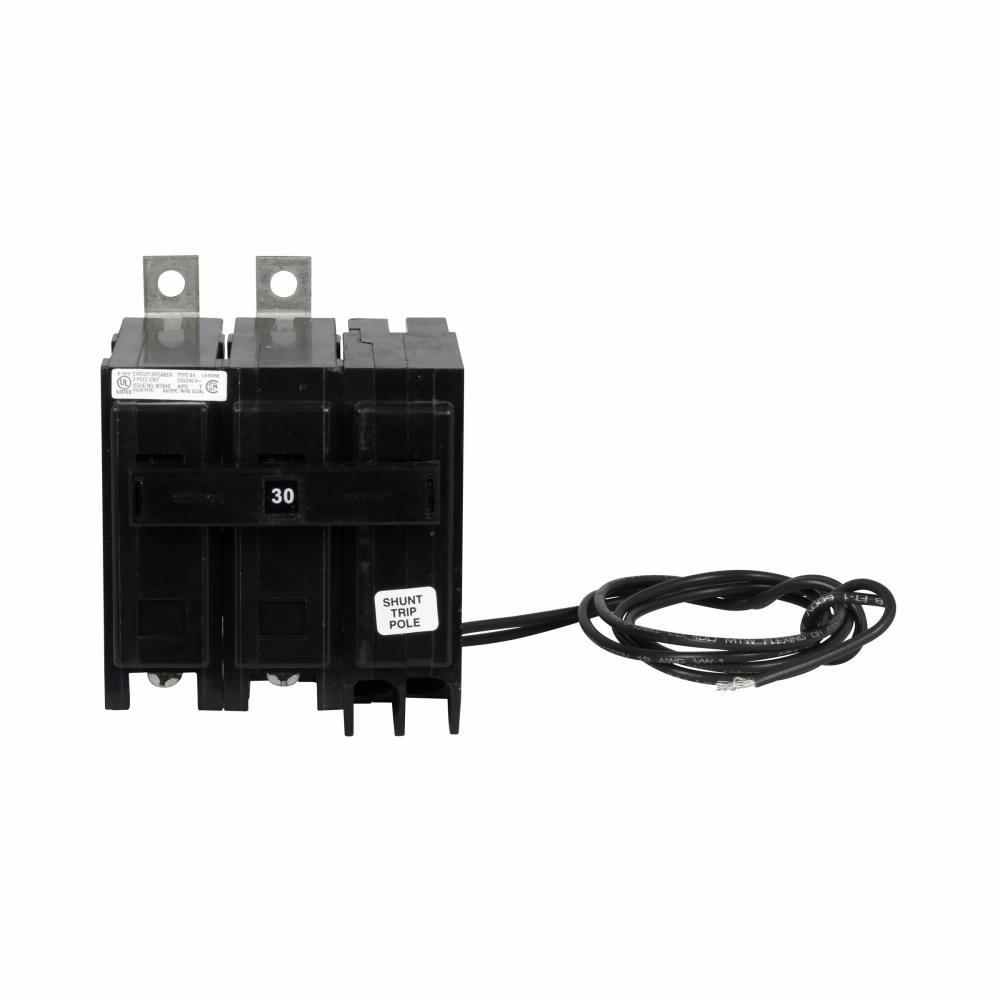

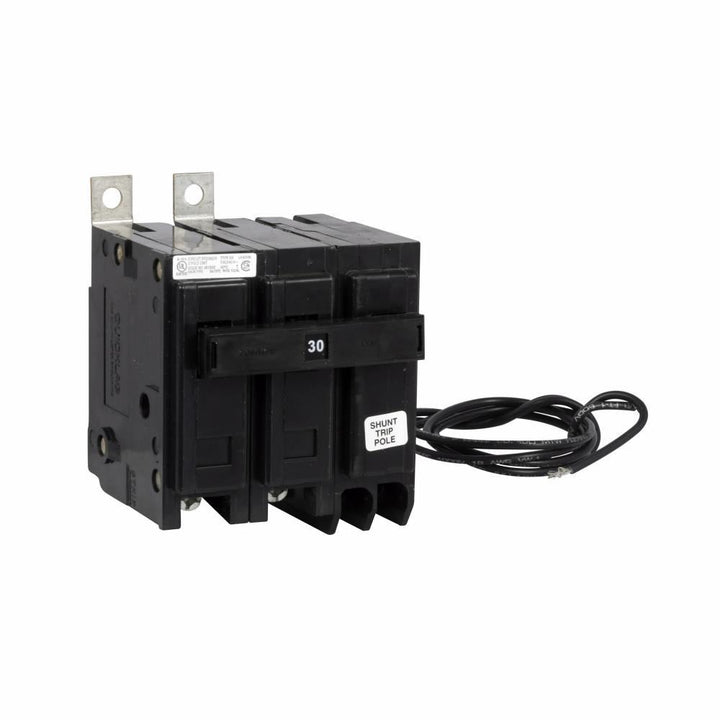

Cutler Hammer BAB2030S is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase industrial and commercial electrical systems. It features a 30A current rating and a 240V AC voltage rating, housed within a compact, bolt-on configuration measuring 3.5 in (D) x 4.5 in (H) x 3.7 in (W) and weighing 0.85 lb. The breaker is constructed with a thermal-magnetic trip mechanism providing both long-time and instantaneous (LI) protection, is HACR rated for HVAC equipment, and complies with UL and CSA standards. It is typically applied in panelboards and switchboards for feeder and branch circuit protection, supporting wire sizes from 14 to 4 AWG for aluminum or copper conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BAB Frame, Thermal-Magnetic Protection with LI (Long-time & Instantaneous) Trip
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 3.5 in (Depth) x 4.5 in (Height) x 3.7 in (Width)
  • Standards: HACR Rated, UL Listed, CSA Certified
  • Applications: Industrial & Commercial Panelboards, Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On Connection
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: BAB
  • Wire Size: 14 to 4 AWG (Aluminum/Copper)
  • Certification: UL Listed, CSA Certified
  • Additional Info: Complete with 120V Shunt Trip


Product Identification
  • UPC: 78667950962
  • GTIN: 00786679509623
