Cutler-Hammer BAB2020S - Molded Case Circuit Breaker 20A 2P (240V, 10kA)
Cutler-Hammer BAB2020S - Molded Case Circuit Breaker 20A 2P (240V, 10kA)
Cutler-Hammer BAB2020S - Molded Case Circuit Breaker 20A 2P (240V, 10kA)
Cutler-Hammer BAB2020S - Molded Case Circuit Breaker 20A 2P (240V, 10kA)
Cutler-Hammer BAB2020S - Molded Case Circuit Breaker 20A 2P (240V, 10kA)
Cutler-Hammer BAB2020S - Molded Case Circuit Breaker 20A 2P (240V, 10kA)

Cutler-Hammer BAB2020S - Molded Case Circuit Breaker 20A 2P (240V, 10kA)

Cutler Hammer
Price
Save $588.96
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

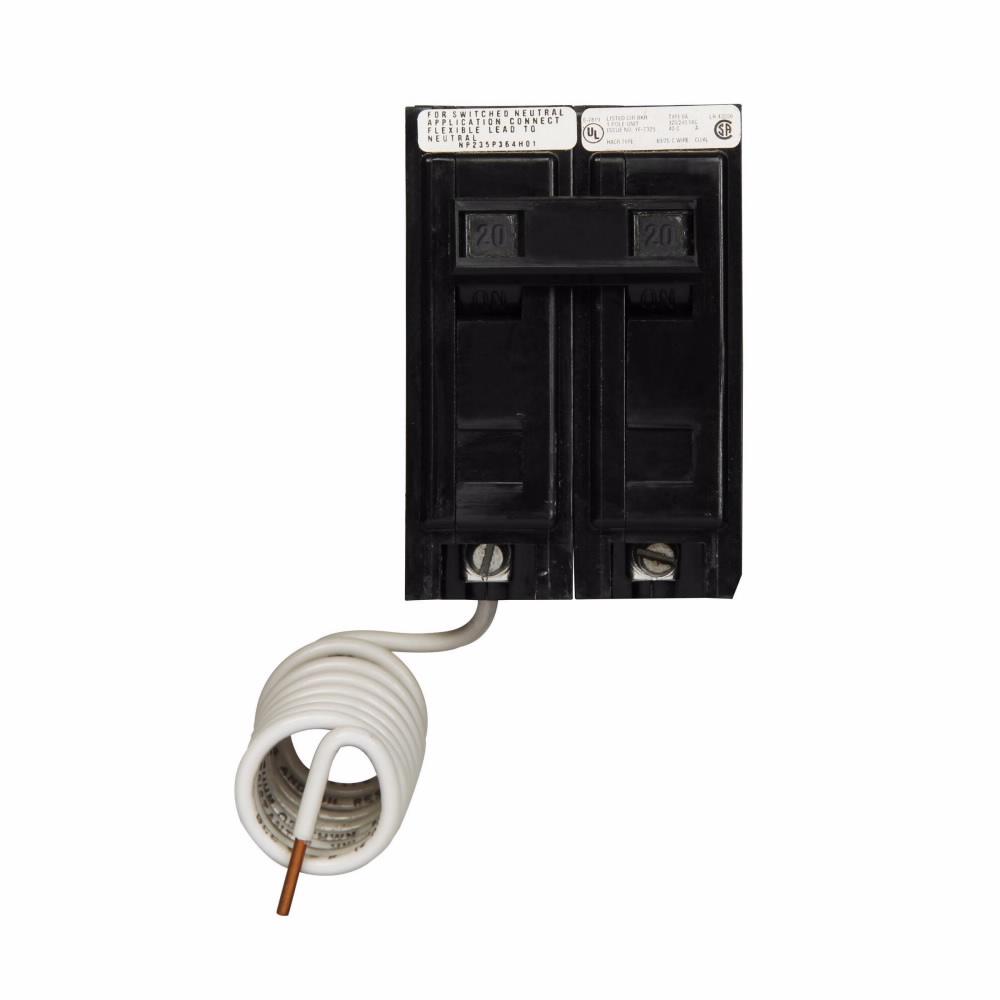

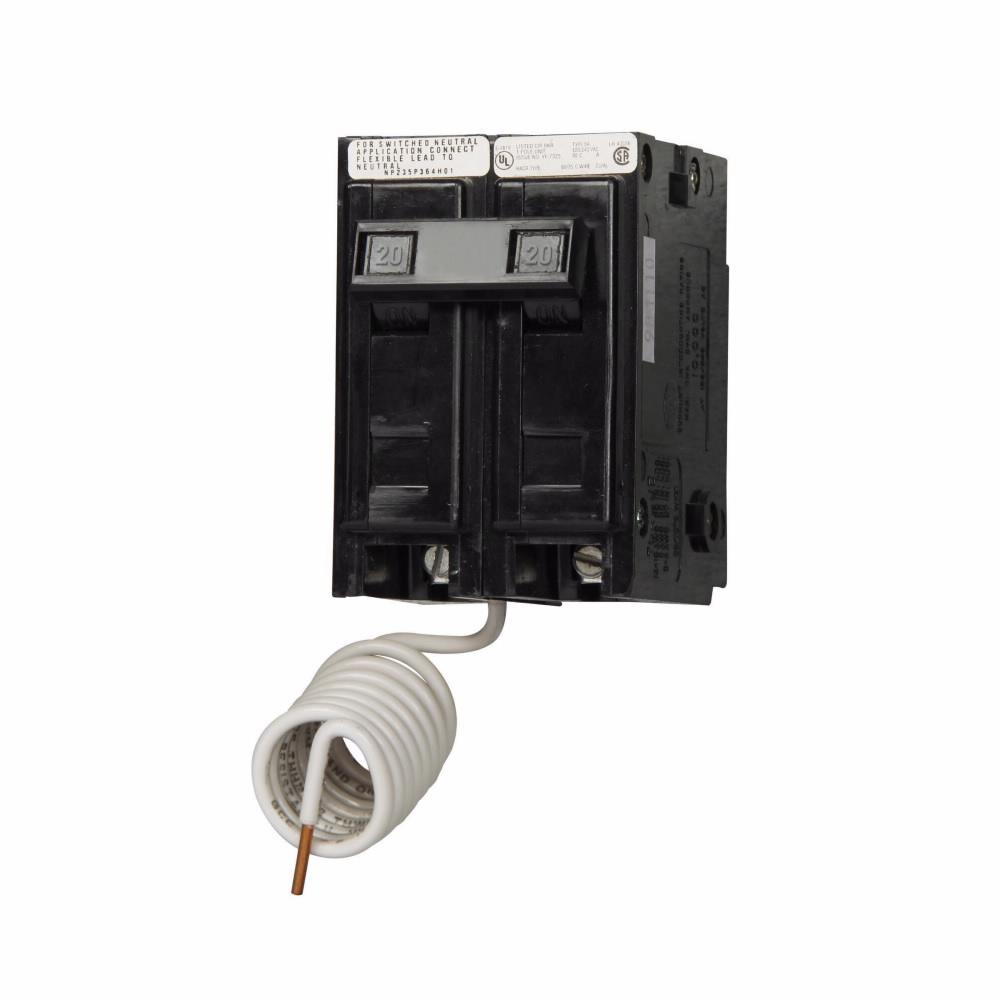

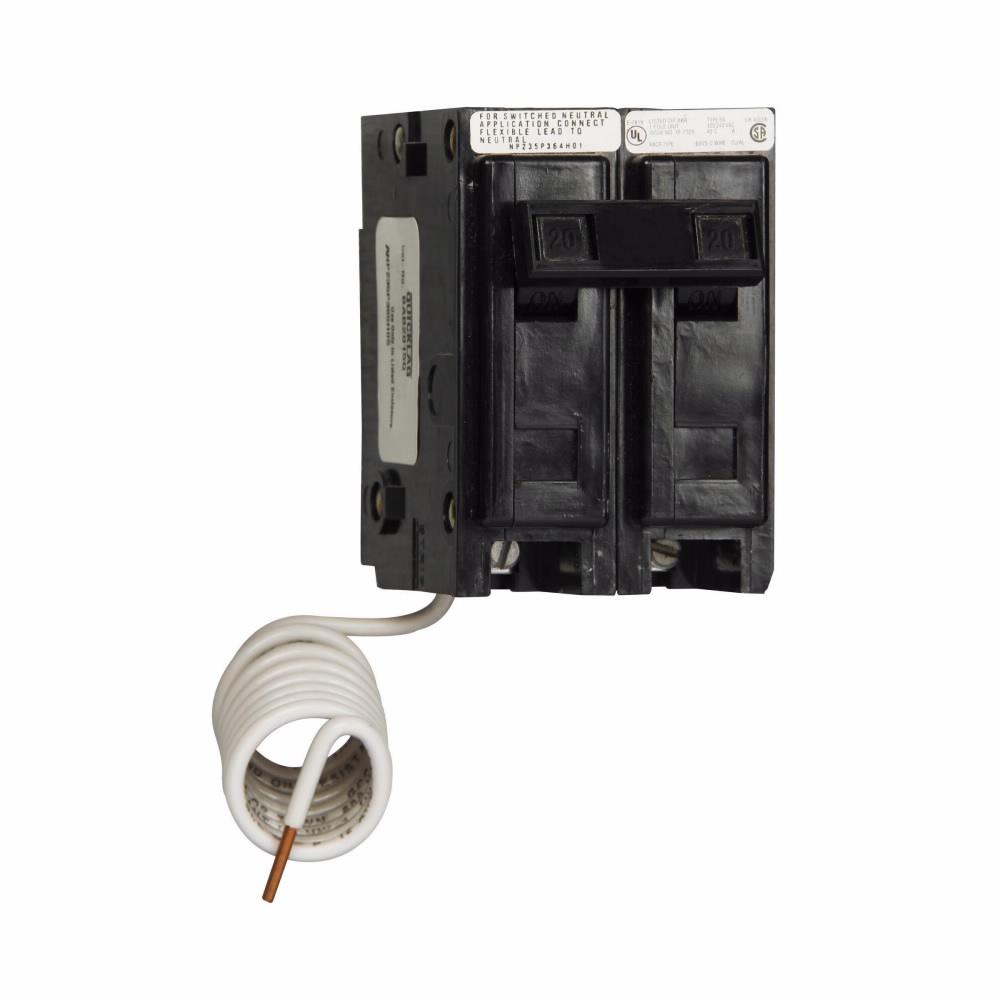

Cutler-Hammer BAB2020S is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 20A current rating and a 240V AC voltage rating, housed within a compact, bolt-on configuration measuring 3.8 in x 4.9 in x 3.2 in (L/D x H x W) and weighing 0.85 lb. The breaker is HACR rated and complies with UL and CSA standards, utilizing a thermal-magnetic trip unit with long-time and instantaneous (LI) functions for robust protection. It is engineered for typical applications in panelboards and switchboards, offering a 10kA interrupting rating at 240V and an operational temperature range of -25°C to 70°C, and includes a 120V shunt trip accessory.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BAB Series, Thermal-Magnetic Protection with LI (Long-time & Instantaneous) Trip
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 3.8 in x 4.9 in x 3.2 in (Length/Depth x Height x Width)
  • Standards: HACR Rated
  • Applications: Industrial and Commercial Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Wire Size: 14 to 4 AWG (Aluminum/Copper)
  • Certification: UL Listed, CSA Certified
  • Additional Info: Complete with 120V Shunt Trip
  • Family: Quicklag
  • Country of Origin: Dominican Republic
  • Weight: 0.85 lb


Product Identification
  • UPC: 786679509616
  • GTIN: 00786679509616
