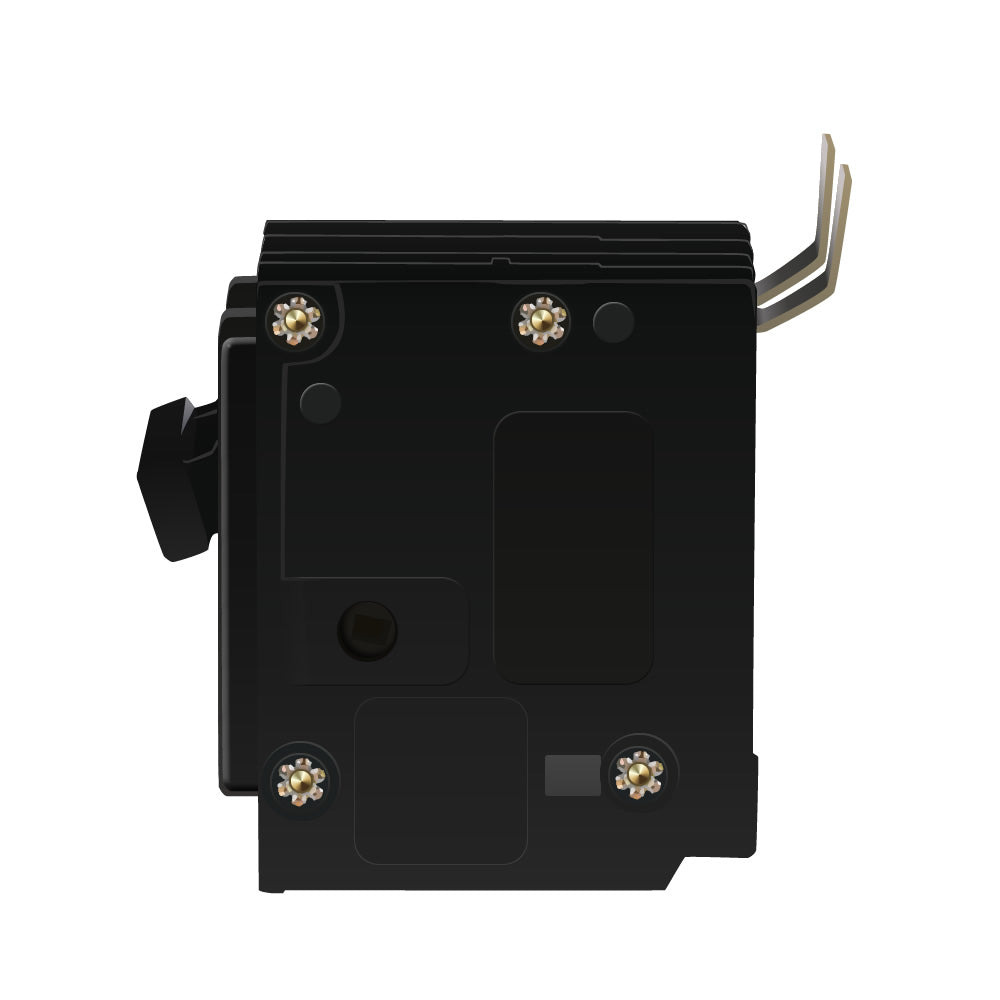

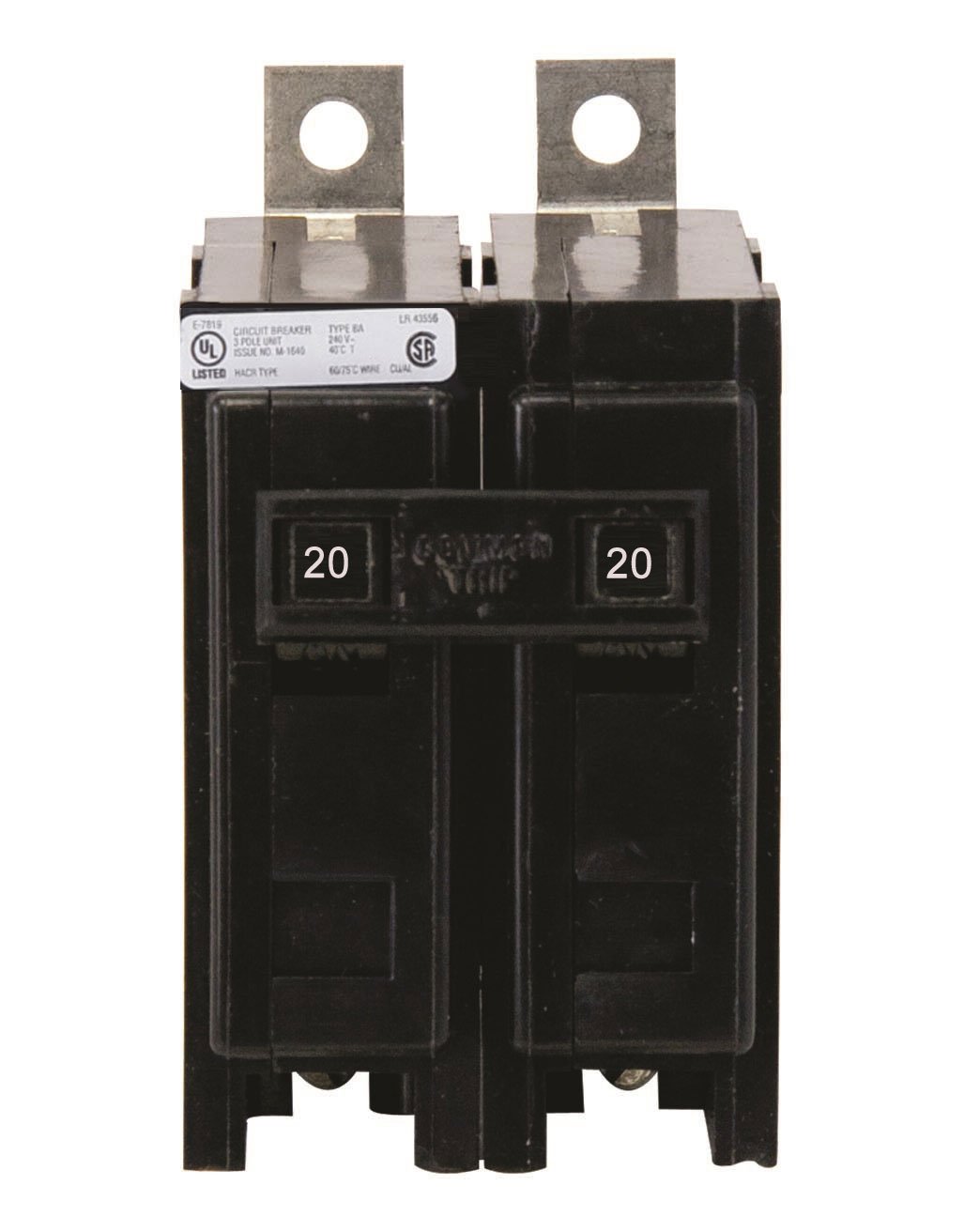

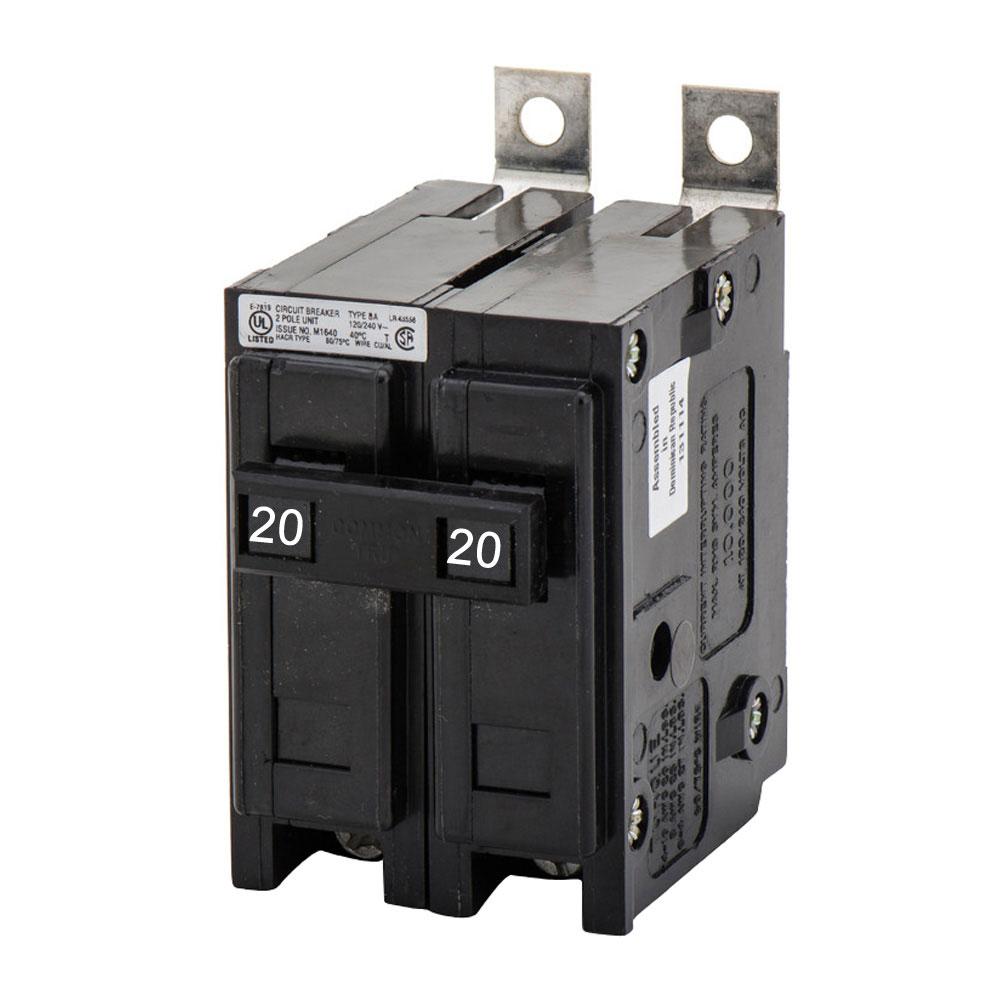

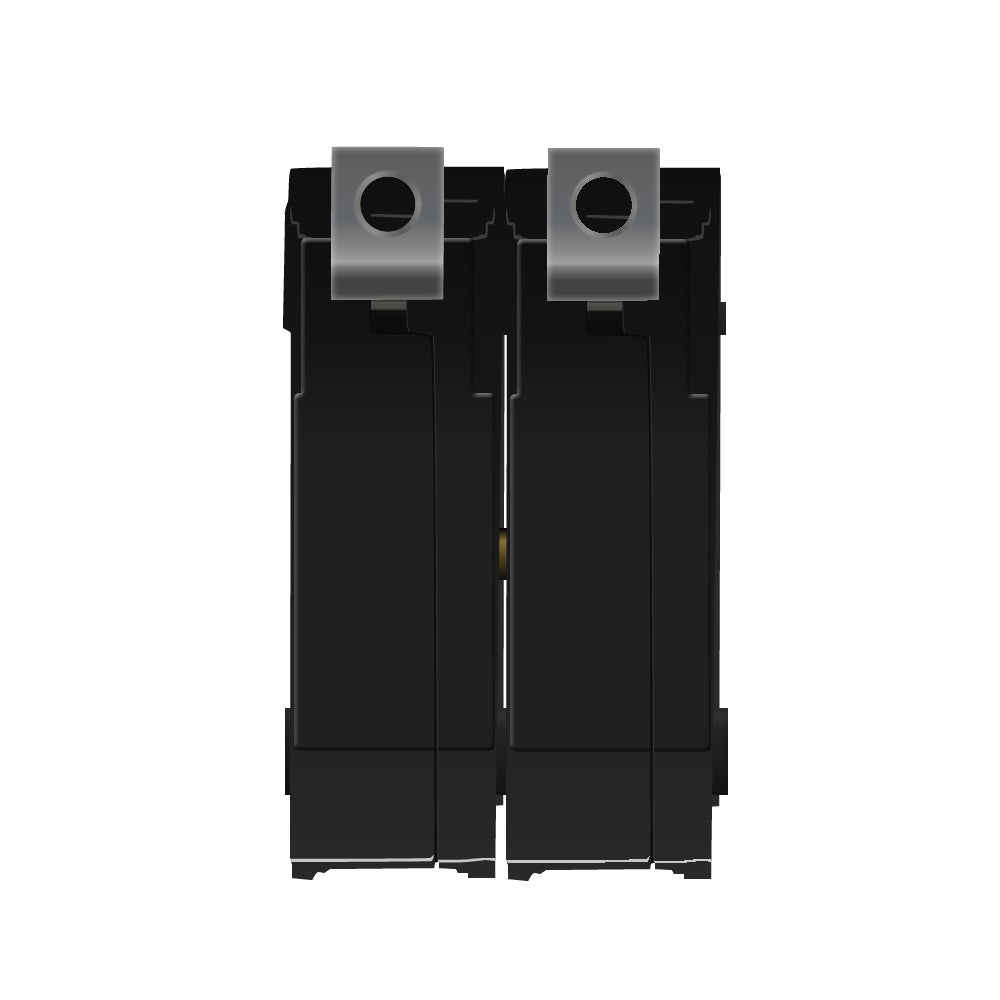

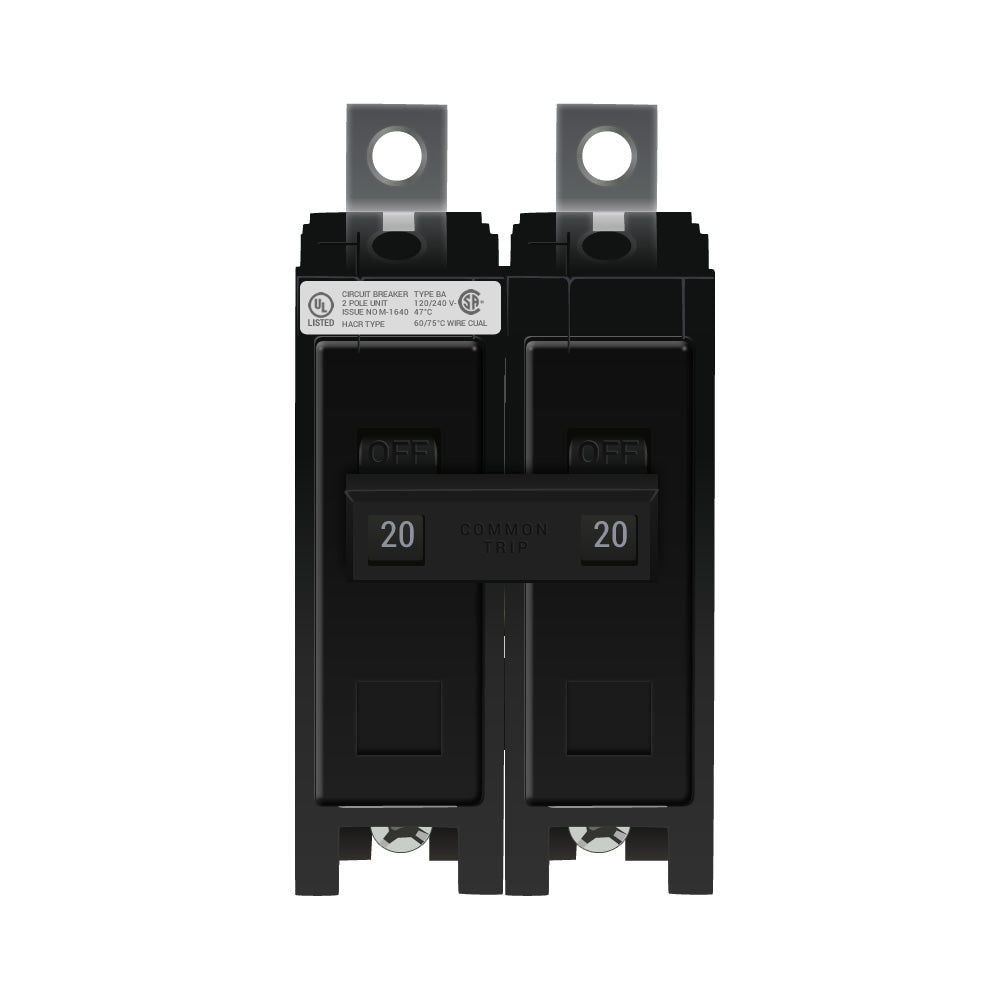

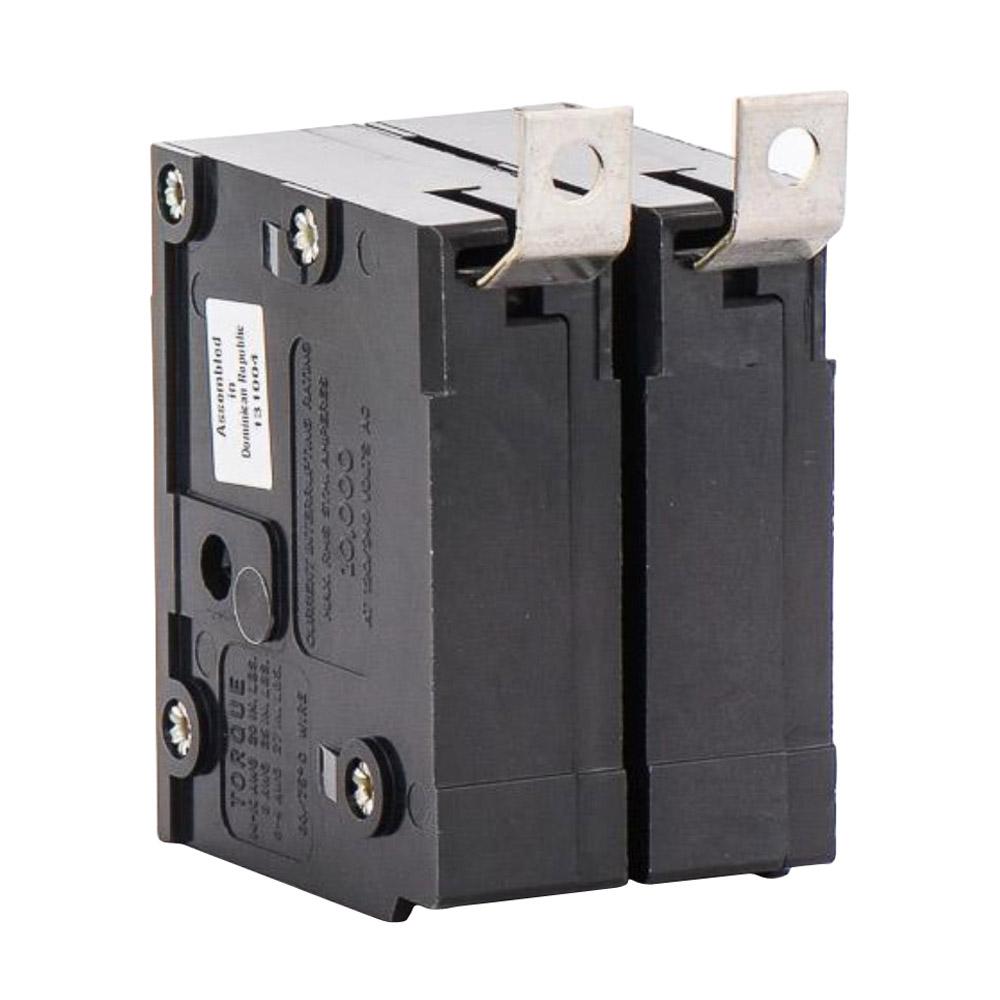

Cutler Hammer BAB2020 - 2-Pole Thermal Magnetic Breaker (20A, 240V)

Price
Regular price $40.79
Regular price $204.32 Sale price $40.79
Save $163.53
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Cutler Hammer BAB2020 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 20A current rating and a 240V AC voltage rating, housed within a compact, bolt-on configuration measuring 2.906 in x 2.906 in x 2 in and weighing 0.55 lb. This thermal magnetic breaker is HACR rated and complies with UL and CSA standards, offering 10kA interrupting capacity for robust fault protection. Its LI (Long-time and Instantaneous) trip function and operating temperature range of -25°C to 70°C make it suitable for protecting branch circuits and equipment loads in panelboards and switchgear.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 2.906 in x 2.906 in x 2 in (L/D x H x W)
  • Standards: HACR Rated
  • Applications: Industrial & Commercial Branch Circuit Protection
  • Certification: UL Listed, CSA Certified
  • AIC Rating: 10kA @ 240V
  • Phase: 1
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Connection: Bolt-On
  • Wire Size: 14 to 4 AWG (Aluminum/Copper at load)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 0.55 lb
  • Family: Quicklag
  • Country of Origin: United States


Product Identification
  • UPC: 78667930220
  • GTIN: 00786679302200
