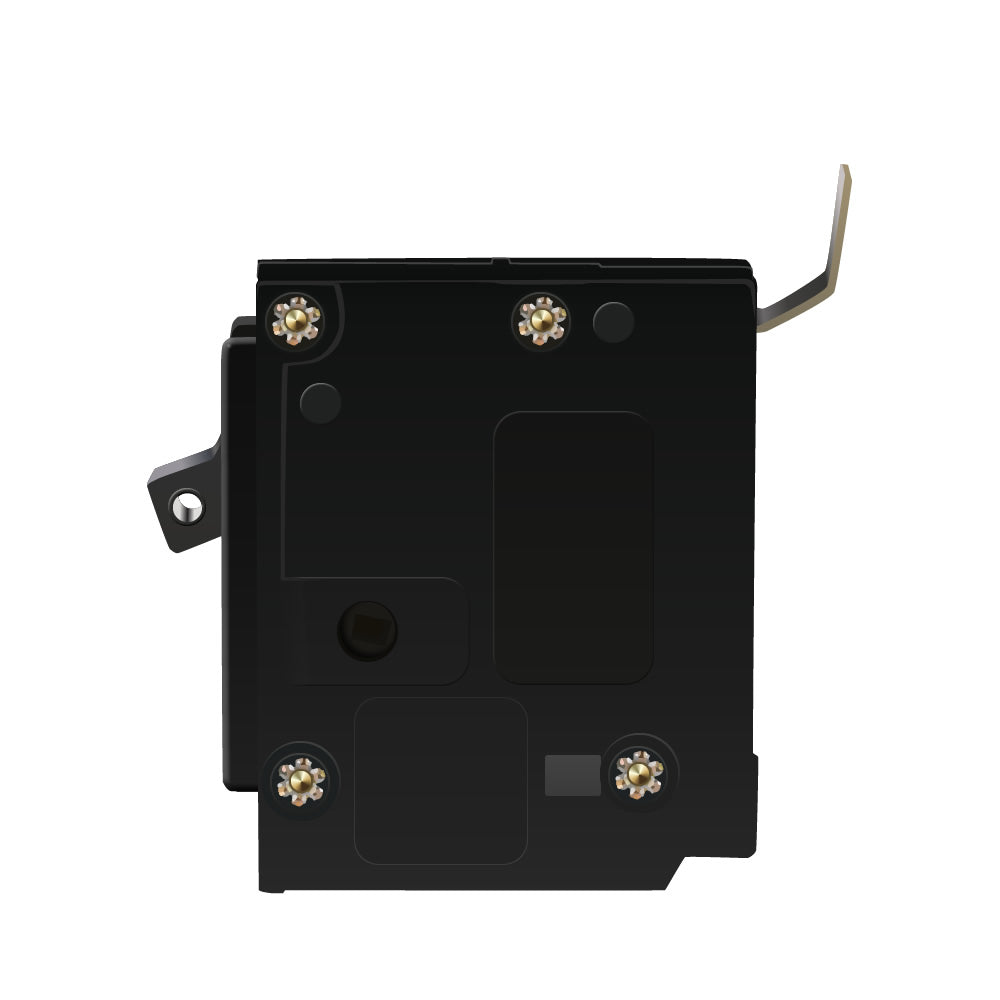

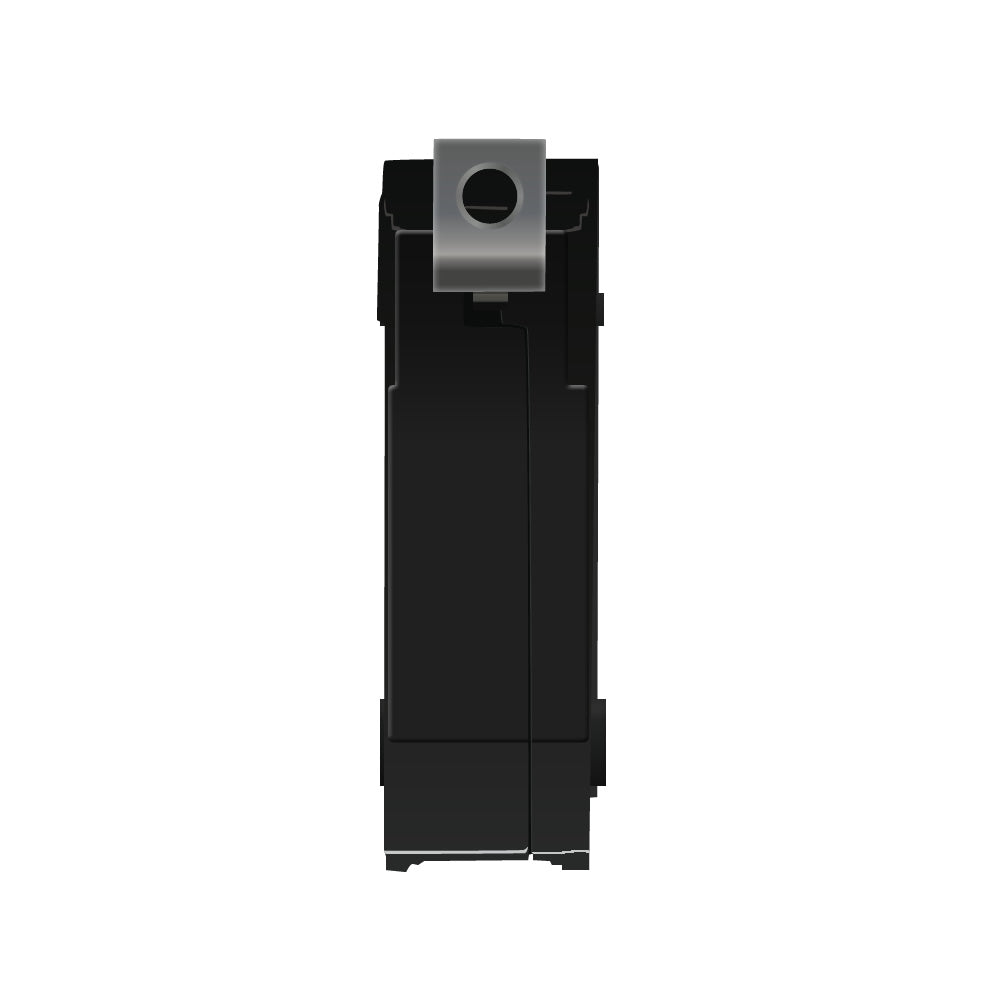

Eaton BAB1050 - Molded Case Circuit Breaker 50A 1P (10kA AIC)
Eaton BAB1050 - Molded Case Circuit Breaker 50A 1P (10kA AIC)
Eaton BAB1050 - Molded Case Circuit Breaker 50A 1P (10kA AIC)
Eaton BAB1050 - Molded Case Circuit Breaker 50A 1P (10kA AIC)

Eaton BAB1050 - Molded Case Circuit Breaker 50A 1P (10kA AIC)

Cutler Hammer
Price
Save $73.91
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Cutler-Hammer BAB1050 is a single-pole molded case circuit breaker designed to provide reliable overcurrent protection for 240V AC branch circuits. It features a 50A thermal-magnetic trip unit with long-time and instantaneous (LI) functions, housed in a compact bolt-on configuration measuring 3.8" x 4.8" x 1.2" and weighing 0.35 lb. This HACR-rated breaker is UL Listed and CSA Certified for safety, offering a 10kA interrupting rating at 240V AC and operating across a temperature range of -25°C to 70°C. Its typical applications include protecting feeders and branch circuits in industrial control panels, HVAC equipment, and lighting panels, compatible with wire sizes from AWG 14 to AWG 4.

Key Features & Specifications
  • Type: BAB Series, Molded Case, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 50A
  • Dimensions: 3.8 in (L) x 4.8 in (H) x 1.2 in (W)
  • Standards: HACR rated
  • Applications: Industrial Control Panels, HVAC Equipment, Lighting Panels
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V AC
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Wire Size: AWG 14 to AWG 4, Aluminum/Copper
  • Certification: UL Listed, CSA Certified
  • Family: Quicklag
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679301500
  • GTIN: 00786679301500
