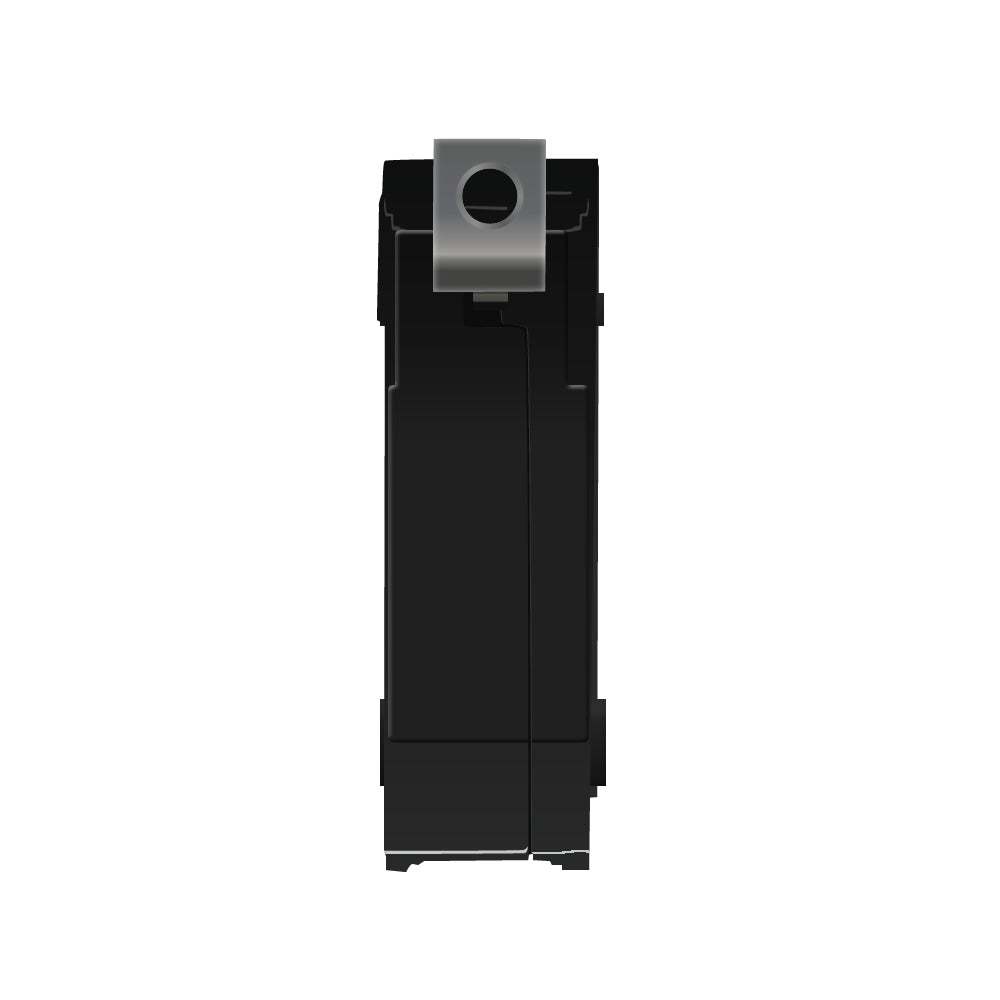

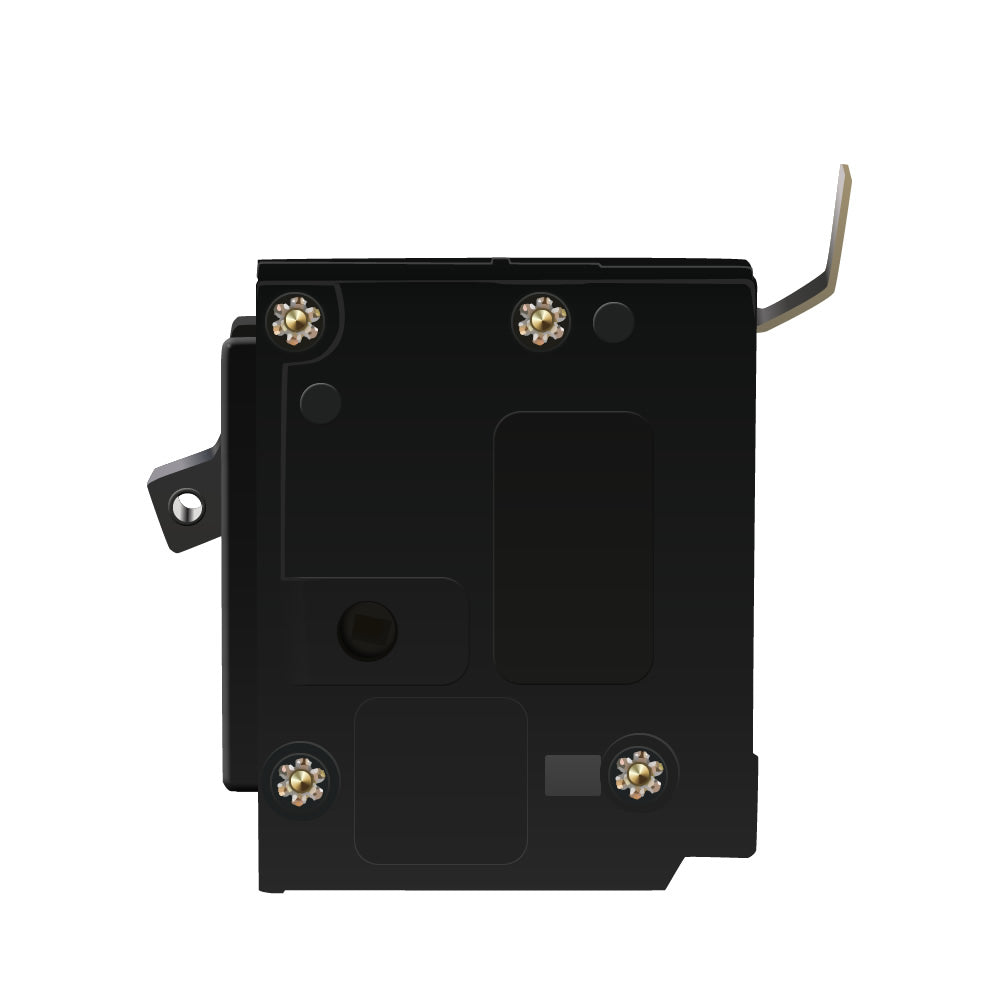

Cutler-Hammer BAB1025 - Molded Case Breaker 25A 1P 240V
Cutler-Hammer BAB1025 - Molded Case Breaker 25A 1P 240V
Cutler-Hammer BAB1025 - Molded Case Breaker 25A 1P 240V
Cutler-Hammer BAB1025 - Molded Case Breaker 25A 1P 240V

Cutler-Hammer BAB1025 - Molded Case Breaker 25A 1P 240V

Cutler Hammer
Price
Save $71.21
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler-Hammer BAB1025 is a single-pole, molded case circuit breaker designed to provide reliable overcurrent protection for 240V AC branch circuits. It features a 25A thermal-magnetic trip unit with long-time and instantaneous (LI) functions for coordinated protection against both overloads and short circuits. The compact, bolt-on unit measures 4" x 5" x 1" and is constructed for durability with a HACR rating for HVAC equipment and an interrupting capacity of 10kA at 240V. It is UL Listed and CSA Certified for safety compliance and is rated for operation in temperatures from -25°C to 70°C. This breaker is typically applied in industrial control panels, commercial distribution, and HVAC systems, accommodating wire sizes from AWG 14 to AWG 4 for aluminum or copper conductors.

Key Features & Specifications
  • Type: BAB Series, Molded Case, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Dimensions: 4 in (Depth) x 5 in (Height) x 1 in (Width)
  • Standards: HACR rated, UL Listed, CSA Certified
  • Applications: Industrial control panels, commercial power distribution, HVAC equipment
  • Switch Type: Circuit Breaker
  • Configuration: Single Pole
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Wire Size: AWG 14 to AWG 4 (Aluminum/Copper)
  • Certification: UL Listed, CSA Certified
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 0.35 lb
  • Family: Quicklag
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679301258
  • GTIN: 00786679301258
