Cutler-Hammer BAB1015S - Molded Case Breaker 15A 240V (10kA AIC)
Cutler-Hammer BAB1015S - Molded Case Breaker 15A 240V (10kA AIC)
Cutler-Hammer BAB1015S - Molded Case Breaker 15A 240V (10kA AIC)
Cutler-Hammer BAB1015S - Molded Case Breaker 15A 240V (10kA AIC)
Cutler-Hammer BAB1015S - Molded Case Breaker 15A 240V (10kA AIC)
Cutler-Hammer BAB1015S - Molded Case Breaker 15A 240V (10kA AIC)

Cutler-Hammer BAB1015S - Molded Case Breaker 15A 240V (10kA AIC)

Cutler Hammer
Price
Save $494.78
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

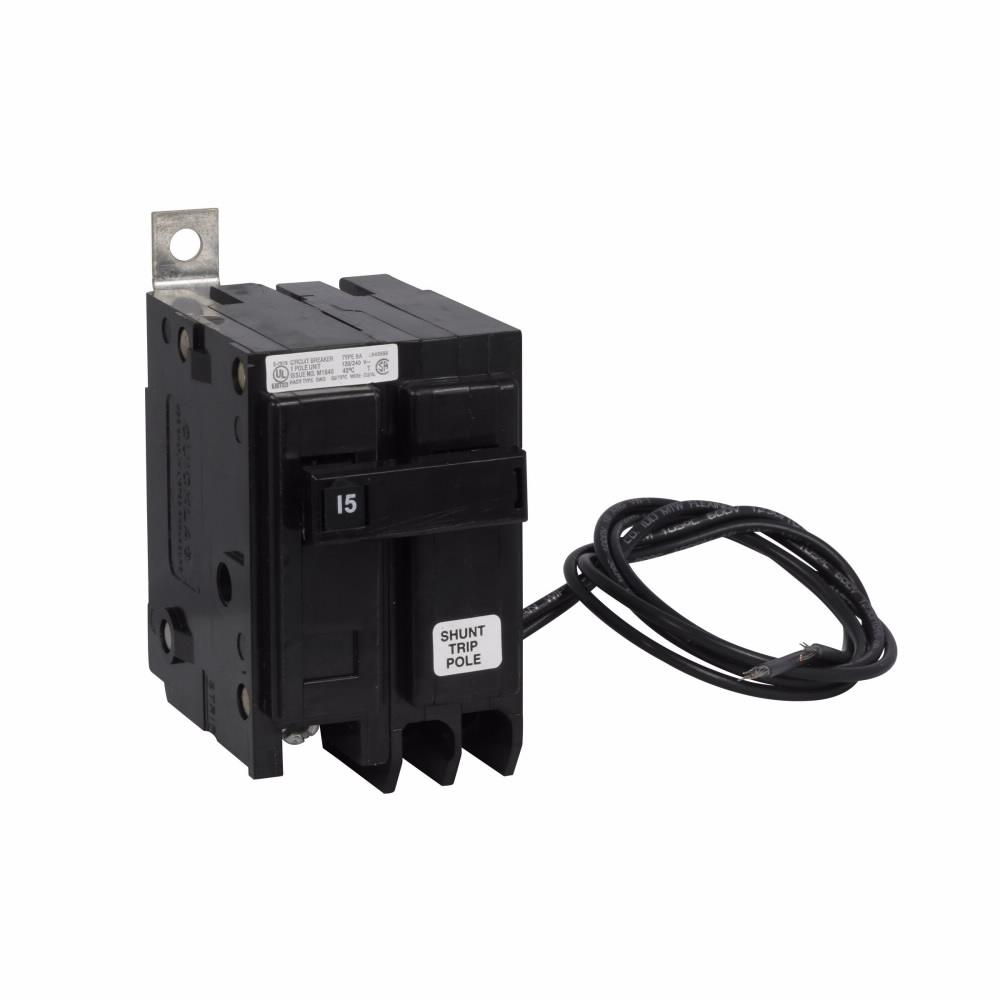

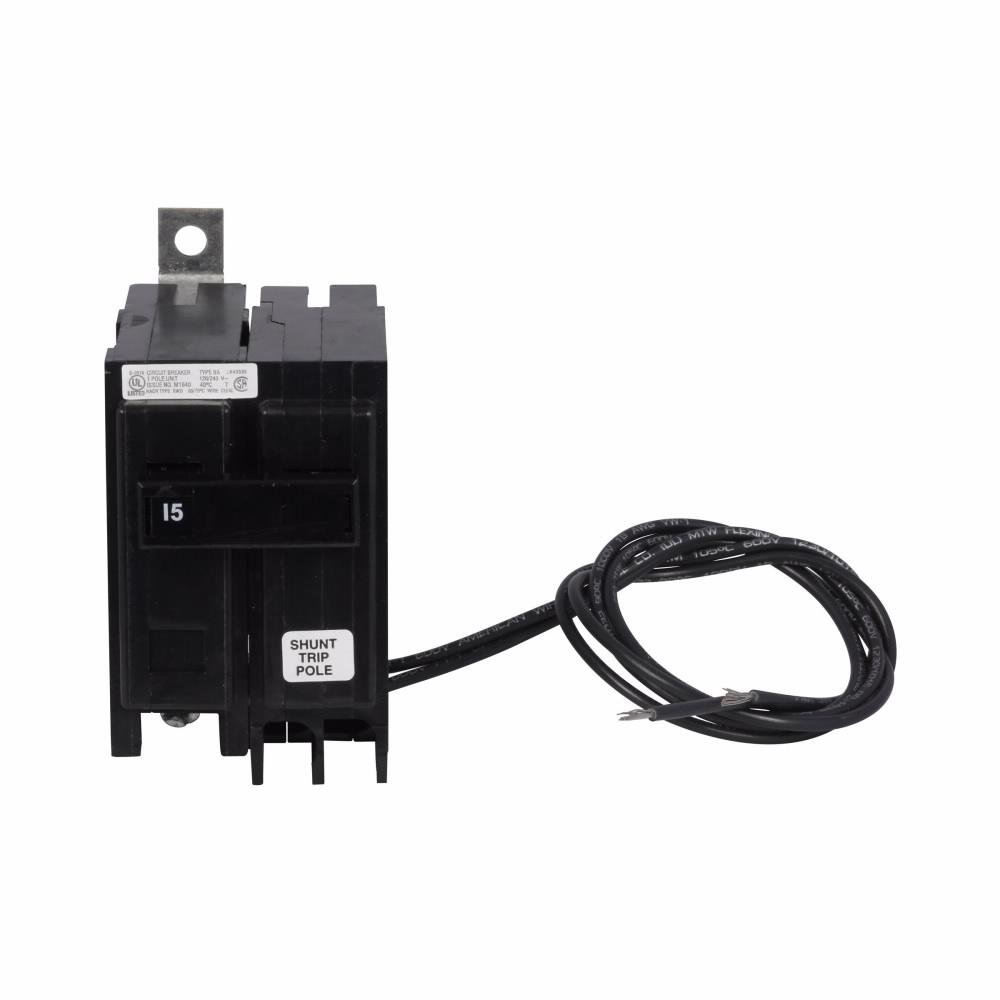

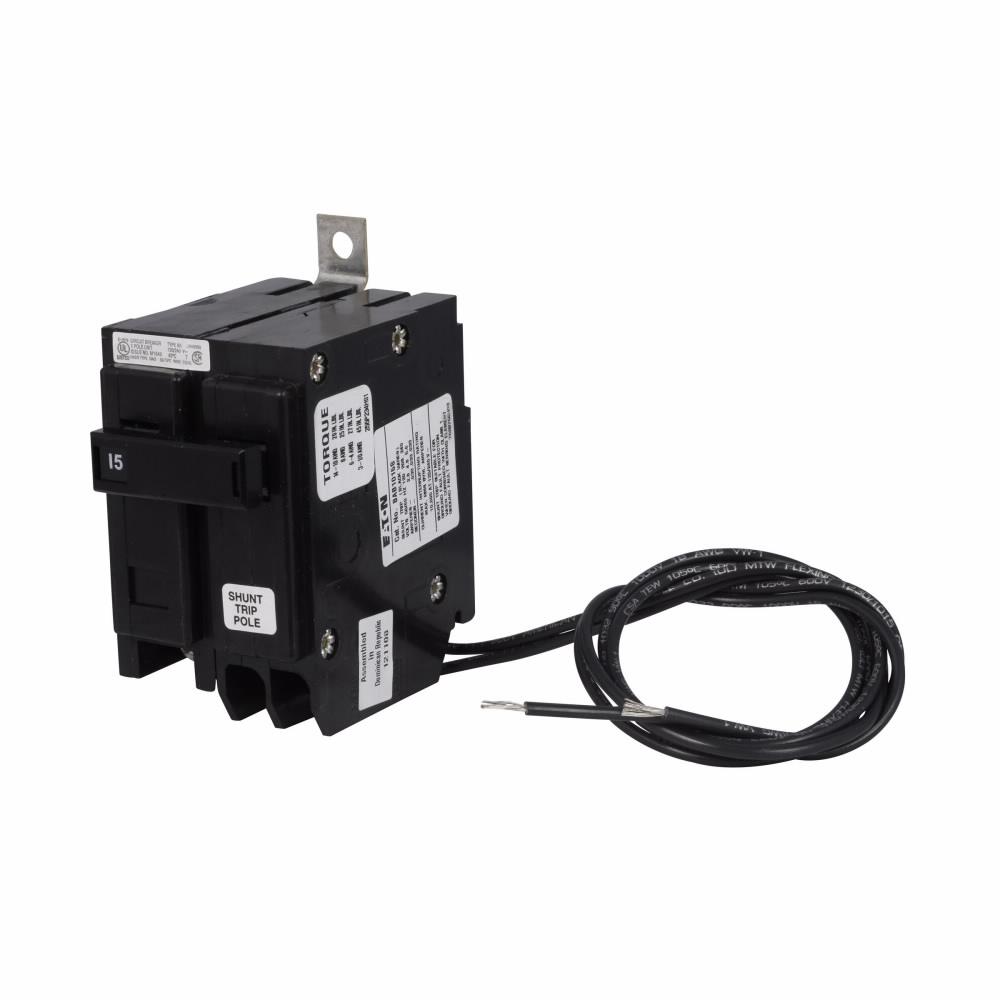

The Cutler-Hammer BAB1015S is a single-pole, bolt-on molded case circuit breaker designed to provide reliable overcurrent protection for 240V AC branch circuits. It features a 15A thermal-magnetic trip unit with long-time and instantaneous (LI) functions for coordinated protection against overloads and short circuits, and it is HACR-rated for heating, air conditioning, and refrigeration equipment. Constructed within the compact BAB frame, the unit measures 3.8" x 4.8" x 2.2" (L/D x H x W), weighs 0.8 lb, and operates reliably across a temperature range of -25°C to 70°C (-13°F to 158°F). The breaker is UL Listed and CSA Certified, offering an interrupting capacity of 10kA at 240V AC, and includes an integrated 120V shunt trip for remote tripping capability in industrial and commercial electrical panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BAB Frame, Bolt-On Connection, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 15A
  • Dimensions: 3.8 in (Length/Depth) x 4.8 in (Height) x 2.2 in (Width)
  • Standards: HACR Rated
  • Applications: Industrial and Commercial Electrical Distribution, HVAC/R Equipment Protection
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole
  • Coil Voltage Maximum: 120V (Shunt Trip)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V AC
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal-Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: BAB
  • Trip Type: Thermal-Magnetic
  • Certification: UL Listed, CSA Certified
  • Additional Info: Complete with 120V Shunt Trip


Product Identification
  • UPC: 78667936818
  • GTIN: 00786679368183
