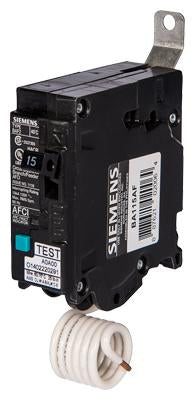

Siemens BA115AF - Molded Case Circuit Breaker 15A 1P 120V
Siemens BA115AF - Molded Case Circuit Breaker 15A 1P 120V

Siemens BA115AF - Molded Case Circuit Breaker 15A 1P 120V

Siemens
Price
Save $352.62
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BA115AF is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 15A current rating and a 120V AC voltage rating, housed within a compact, durable enclosure measuring 1.181" x 3.15" x 5.118" and weighing 0.243 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, offers a 10kA interrupting capacity at 120V, and is designed for bolt-on connection in a single-pole configuration. It operates effectively across a wide temperature range from -25°C to 70°C (-13°F to 158°F) and is part of the Siemens BL Series, manufactured in the Philippines.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Dimensions: 1.181" W x 3.15" H x 5.118" D (30mm x 80mm x 130mm)
  • Standards: Designed to meet applicable industry standards
  • Applications: Branch circuit protection in industrial and commercial panels
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole (1P)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: Unit Dimensions Apply
  • Phase: Single-Phase
  • Voltage: 120V
  • Amperage: 15A
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: BA Series
  • Trip Type: Thermal-Magnetic
  • Mounting: Panel Mount
  • Certification: Industry Standard Compliance
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Bolt-On
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single-Phase
  • Standards: Industry Standard
  • Installation Type: Panel Mount
  • Breaker Frame: BA
  • Current Rating: 15A
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 887621020064
  • Manufacturer Part Number: BA115AF
  • Family: BL Series
