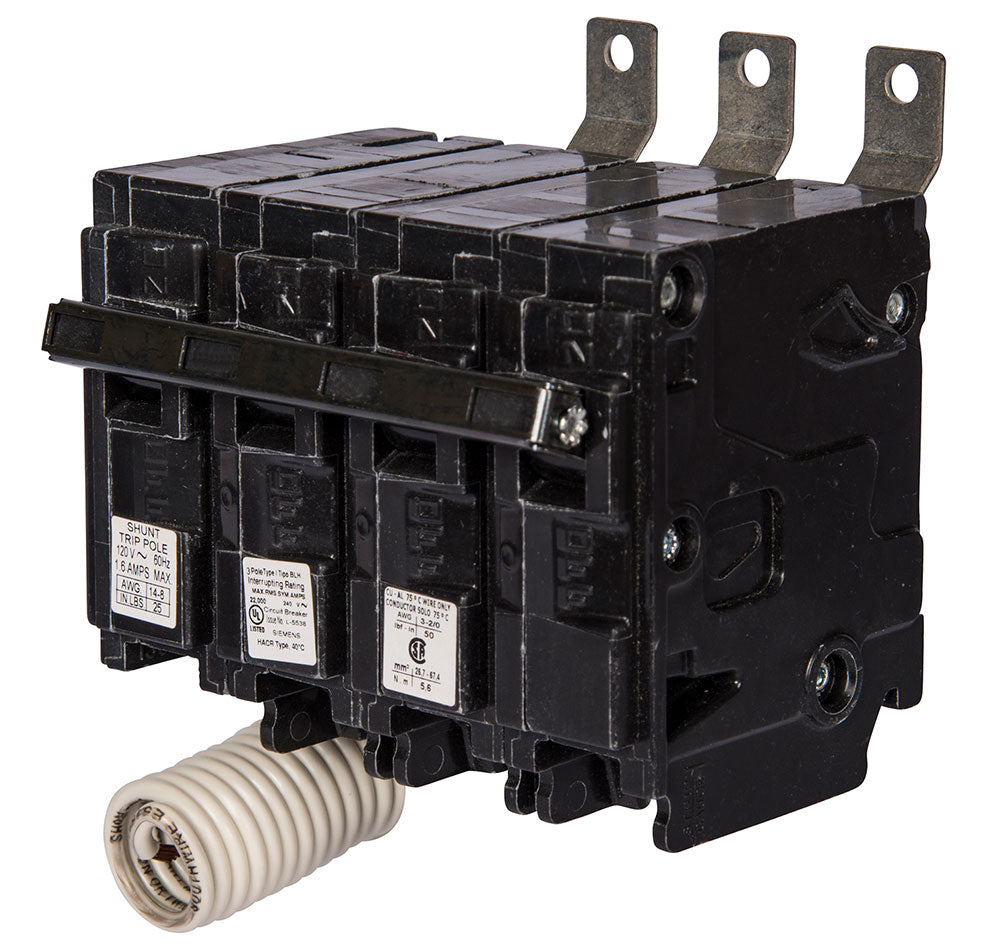

Siemens B39000S01 - Molded Case Breaker 90A 3P (10kA AIC)
Siemens B39000S01 - Molded Case Breaker 90A 3P (10kA AIC)

Siemens B39000S01 - Molded Case Breaker 90A 3P (10kA AIC)

Siemens
Price
Save $1,139.73
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B39000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 90A current rating and a 240V AC voltage rating, housed within a compact 125A/BL frame with dimensions of 2.563" x 4.00" x 3.122" and a weight of 1.257 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous protection, utilizes a bolt-on connection with lug terminals, and is rated for an interrupting capacity of 10kA at 240V. It complies with key industry standards including UL listing, CSA certification, HACR rating, and NOM certification, ensuring suitability for use in Siemens P1 panelboards and similar commercial or industrial distribution equipment within an operating temperature range of -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Shunt Trip
  • Voltage Rating: 240V AC
  • Current Rating: 90A
  • Frame Size: 125A/BL
  • Poles: 3
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu); Max. Wire Size 1/0 AWG
  • Panel Type: Siemens P1 Panelboards
  • Dimensions: 2.563" x 4.00" x 3.122"
  • Weight: 1.257 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268616
  • GTIN: 00783643268616
