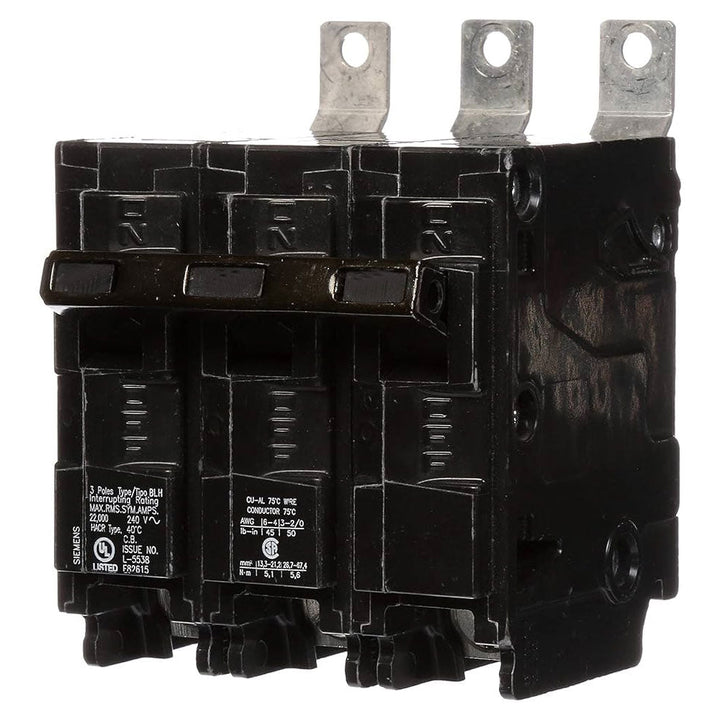

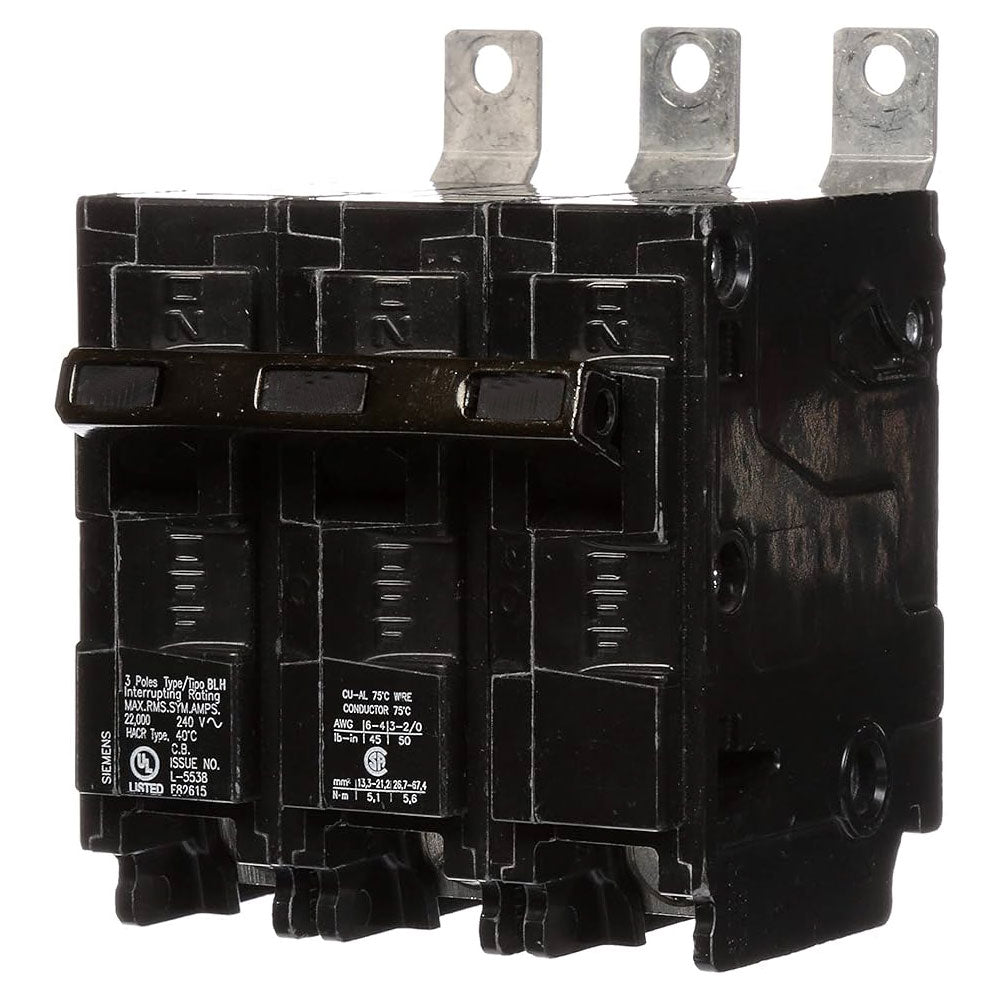

Siemens B360HH - Molded Case Circuit Breaker 60A 3P 240V
Siemens B360HH - Molded Case Circuit Breaker 60A 3P 240V

Siemens B360HH - Molded Case Circuit Breaker 60A 3P 240V

Siemens
Price
Save $1,480.26
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B360HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 60A current rating and a 240V AC voltage rating, housed within a compact, bolt-on design measuring 70 x 70 x 100 mm (2.756 x 2.756 x 3.937 inches) and weighing 1.058 lb. This thermal-magnetic breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial applications.

Key Features & Specifications
  • Type: HBL Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Frame Size: 125A/HBL
  • Poles: 3
  • AIC Rating: 65kA @ 240V
  • Connection: Bolt-on with Lug Terminal
  • Phase: 3
  • Dimensions: 70 x 70 x 100 mm (2.756 x 2.756 x 3.937 in)
  • Weight: 1.058 lb
  • Wire Size (MCM): Minimum 8 AWG, Maximum 2 AWG (Aluminum) or 4 AWG (Copper)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Panel Type: Compatible with Siemens P1 Panelboards
  • Breaker Type: Standard
  • Country of Origin: Mexico
  • Family: BL Series


Product Identification
  • UPC: 783643264250
  • GTIN: 00783643264250
