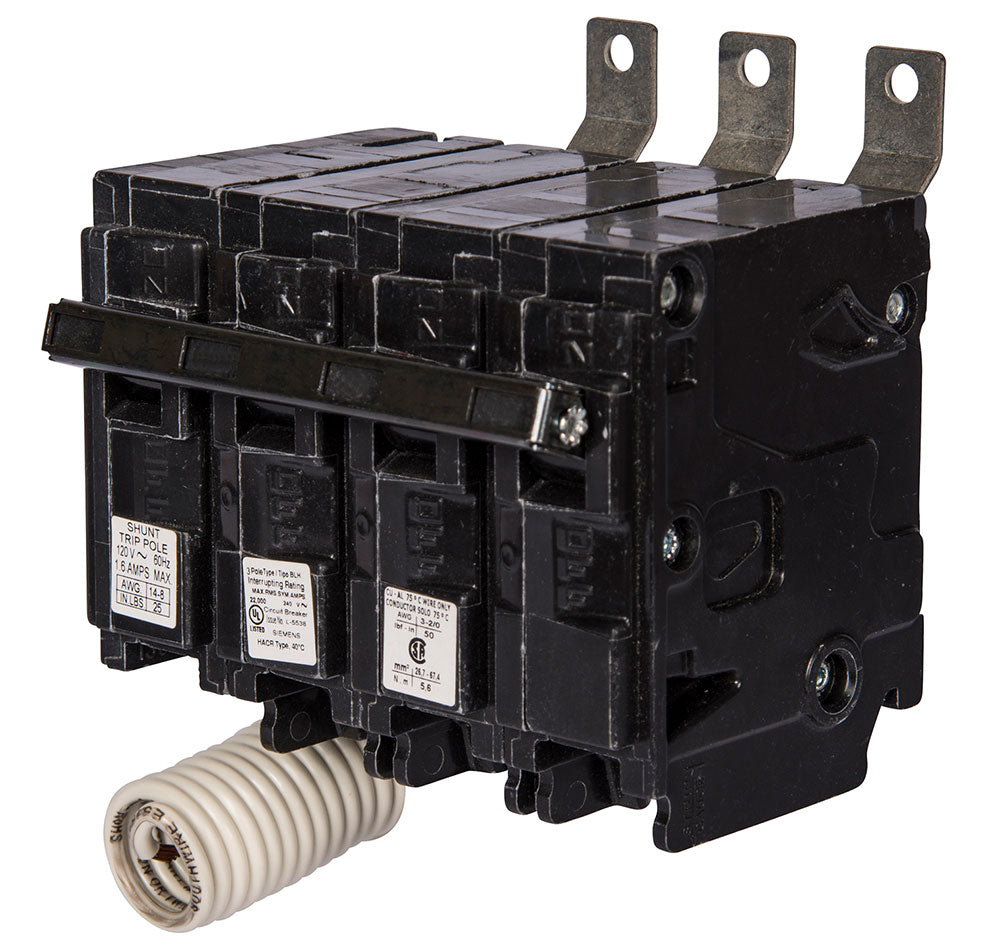

Siemens B36000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 60A current rating and a 240V AC voltage rating, housed within a compact, bolt-on design measuring 2.563" x 4.00" x 3.122" and weighing 1.257 lb. This thermal-magnetic shunt trip breaker is constructed for compliance with UL, CSA, and NOM standards, offering a 10kA interrupting rating at 240V. It is typically applied in industrial and commercial power distribution within Siemens P1 panelboards, utilizing lug terminals suitable for wire sizes from 2 AWG (Al) to 1/0 AWG.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Thermal-Magnetic Protection, Shunt Trip
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 2.563" H x 4.00" W x 3.122" D
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Three-Phase Power Distribution in Siemens P1 Panelboards
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/BL
  • Breaker Type: Shunt Trip
  • Terminal Connection: Lug
  • MCM Size: Min. 2 AWG (Al) / 4 AWG (Cu), Max. 1/0 AWG
  • Weight: 1.257 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268586
  • GTIN: 00783643268586
