Siemens B360 - Molded Case Circuit Breaker 60A 3P 240V

Price
Regular price $77.21
Regular price $719.00 Sale price $77.21
Save $641.79
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon

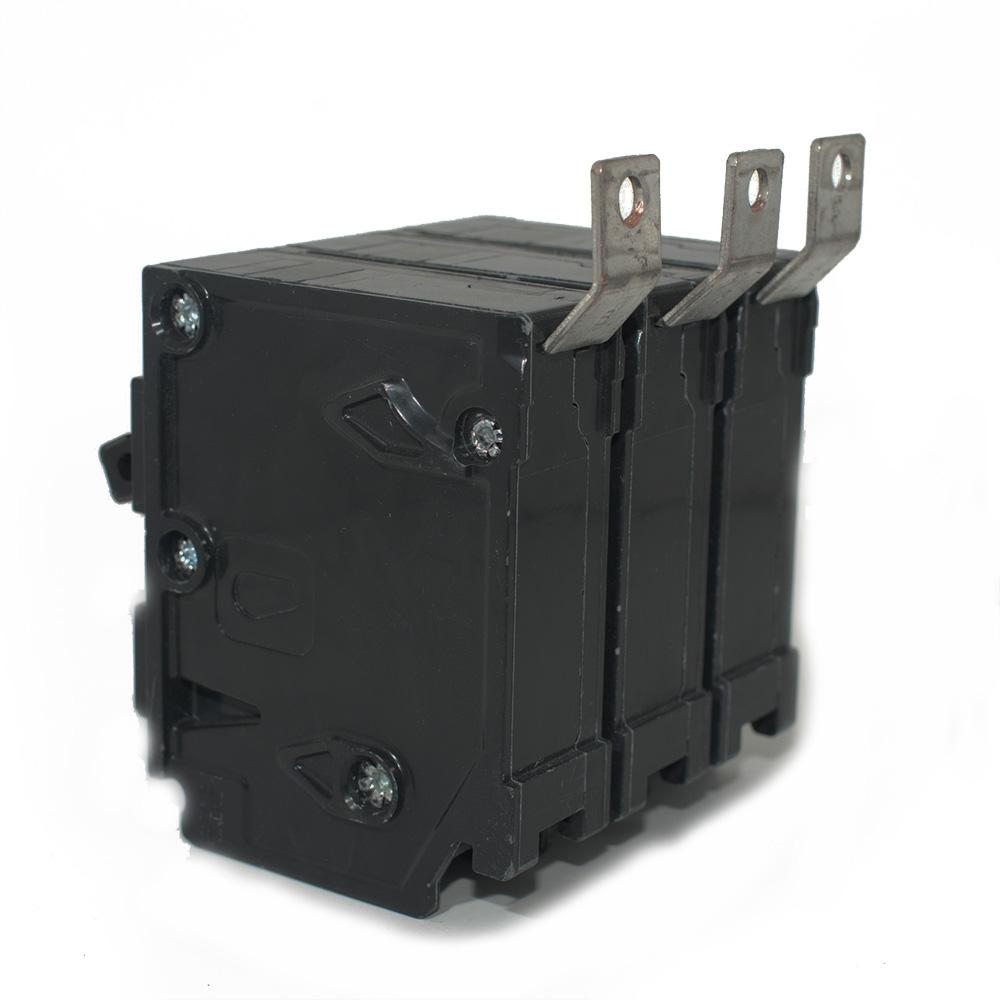

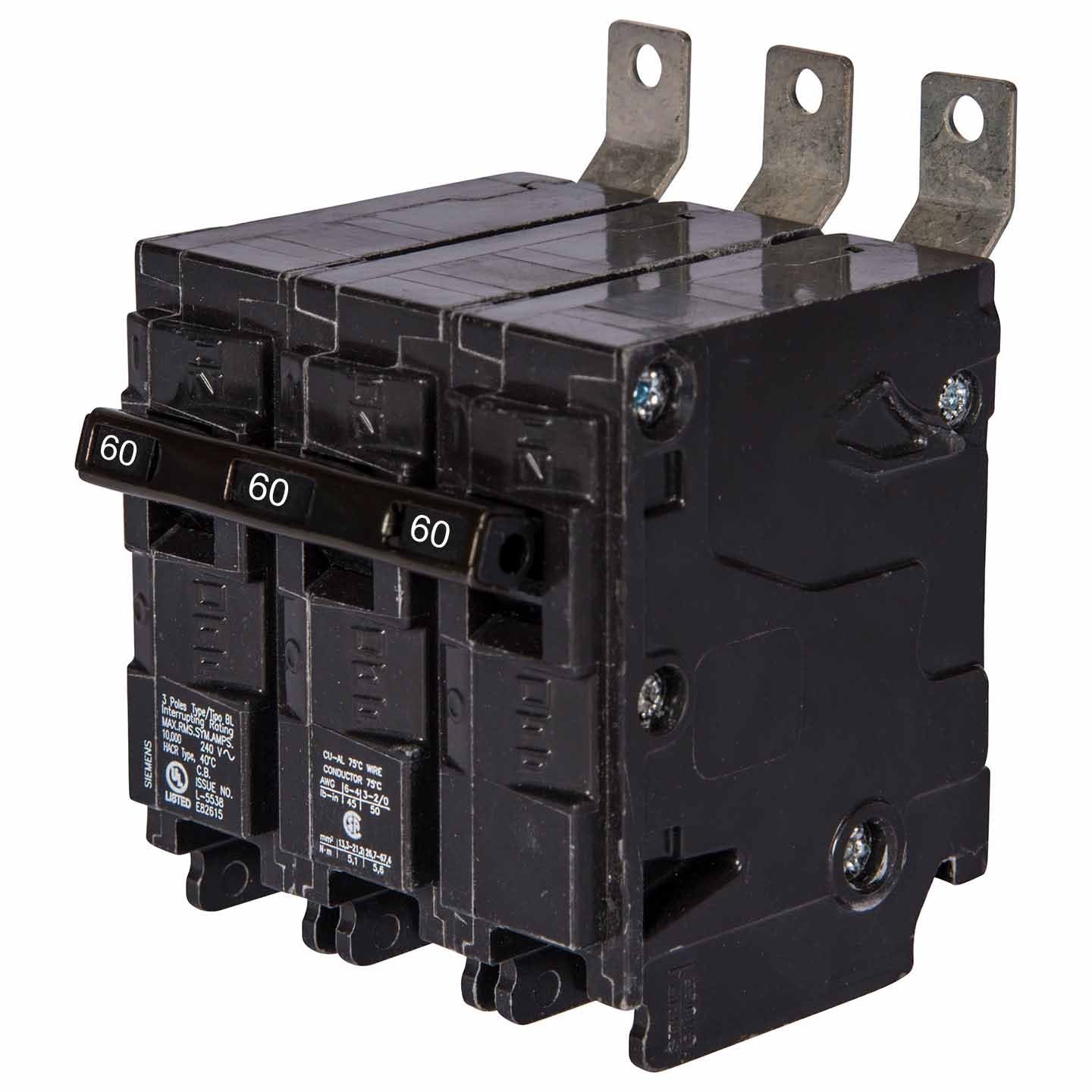

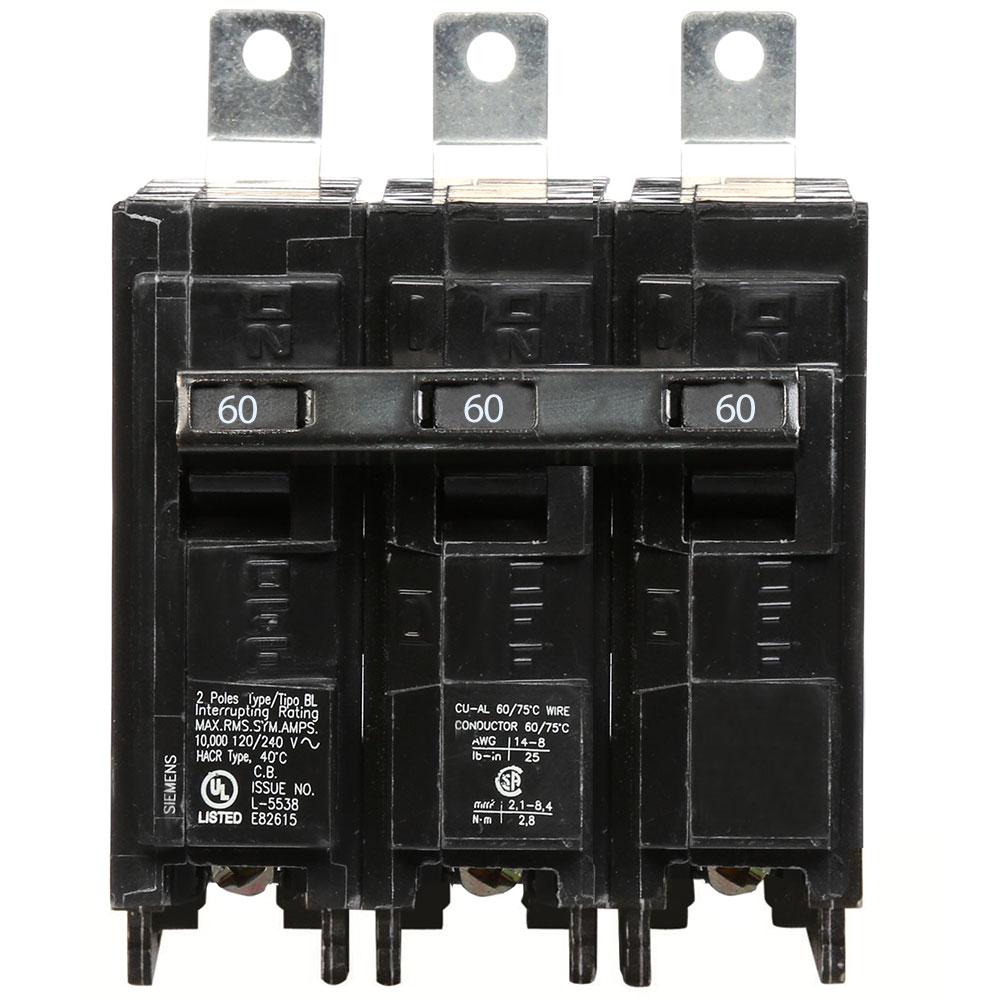

Siemens B360 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 60A current rating and a 240V voltage rating, housed within a compact, bolt-on unit measuring 2.563 x 3.00 x 3.122 inches and weighing 0.948 lb. The breaker is constructed with a thermal-magnetic trip mechanism for both long-time and instantaneous protection and is certified to UL, CSA, HACR, and NOM standards. Its 10kA interrupting rating at 240V and compatibility with Siemens P1 panelboards make it suitable for a range of commercial and light industrial power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 2.563" H x 3.00" W x 3.122" D
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Three-Phase Power Distribution in Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Three-Pole
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/BL
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Terminal Connection: Lug
  • MCM Size: Min. 8 AWG, Max. 2 AWG (Al) / 4 AWG (Cu)
  • Weight: 0.948 lb
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263765
  • GTIN: 00783643263765
