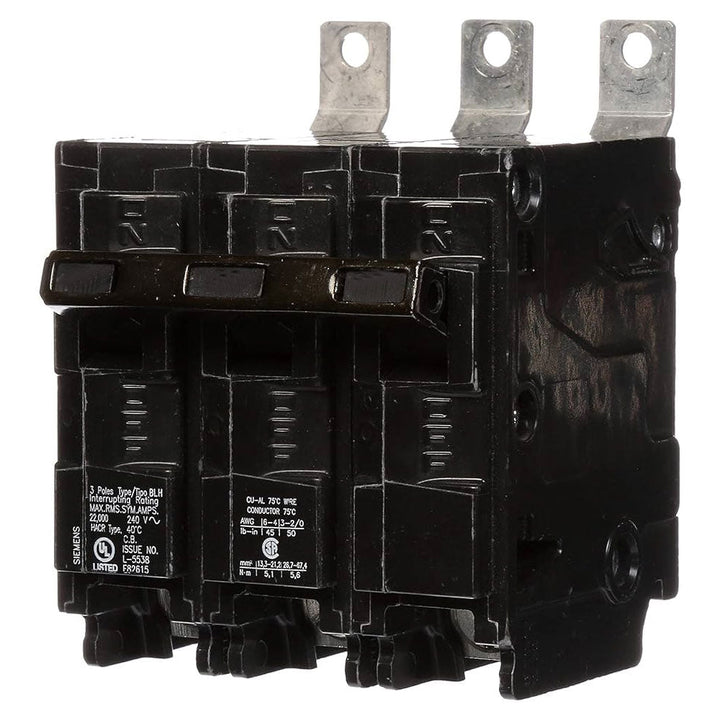

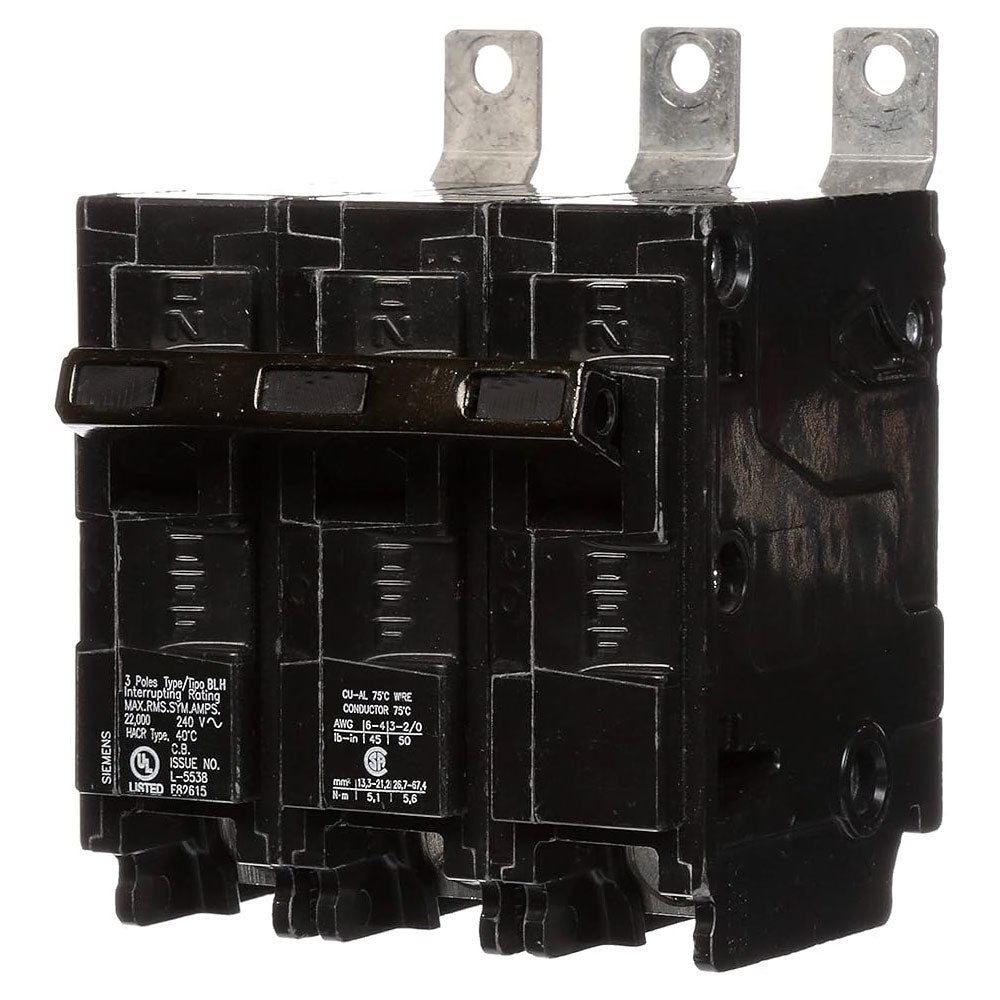

Siemens B350HH - 3-Pole Circuit Breaker 50A 240V 65kA
Siemens B350HH - 3-Pole Circuit Breaker 50A 240V 65kA

Siemens B350HH - 3-Pole Circuit Breaker 50A 240V 65kA

Siemens
Price
Save $1,364.62
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B350HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 50A current rating and a 240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.563" x 3.00" x 3.122" and weighing 0.948 lb. This thermal-magnetic breaker is CSA, UL, HACR, and NOM certified, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial applications.

Key Features & Specifications
  • Type: HBL Standard Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 50A
  • Frame Size: 125A/HBL
  • Poles: 3
  • AIC Rating: 65kA @ 240V
  • Connection: Bolt-on with Lug Terminal
  • Functions: Long Time and Instantaneous Trip
  • Phase: 3
  • Panel Type: Siemens P1 Panelboards
  • Dimensions: 2.563" x 3.00" x 3.122"
  • Weight: 0.948 lb
  • MCM Size: Min. 8 AWG, Max. 2 AWG (Al) / 4 AWG (Cu)
  • Standards/Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Country of Origin: Mexico
  • Family: BL Series


Product Identification
  • UPC: 783643264243
  • GTIN: 00783643264243
