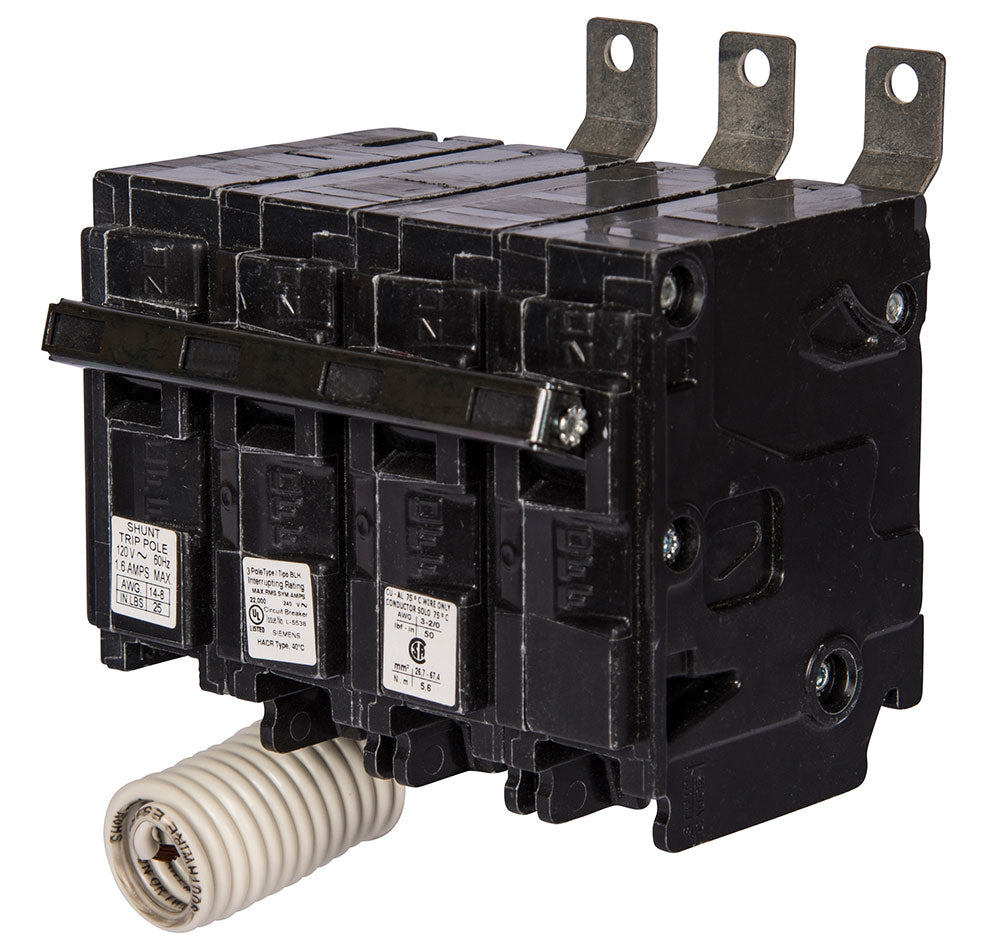

Siemens B35000S01 - Molded Case Circuit Breaker 50A 3P (240V, 10kA AIC)
Siemens B35000S01 - Molded Case Circuit Breaker 50A 3P (240V, 10kA AIC)

Siemens B35000S01 - Molded Case Circuit Breaker 50A 3P (240V, 10kA AIC)

Siemens
Price
Save $917.04
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B35000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 50A current rating and a 240V AC voltage rating, housed within a compact, bolt-on design measuring 2.563" x 4.00" x 3.122" and weighing 1.257 lb. The breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for industrial and commercial applications. Its thermal-magnetic protection with long-time and instantaneous (LI) functions makes it suitable for use in Siemens P1 panelboards, protecting feeders and branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Shunt Trip, Thermal Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 50A
  • Dimensions: 2.563" H x 4.00" W x 3.122" D
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Industrial and commercial feeder/branch circuit protection in three-phase systems
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on Connection
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/BL
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Shunt Trip
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu); Max. Wire Size 1/0 AWG
  • Weight: 1.257 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268562
  • GTIN: 00783643268562
