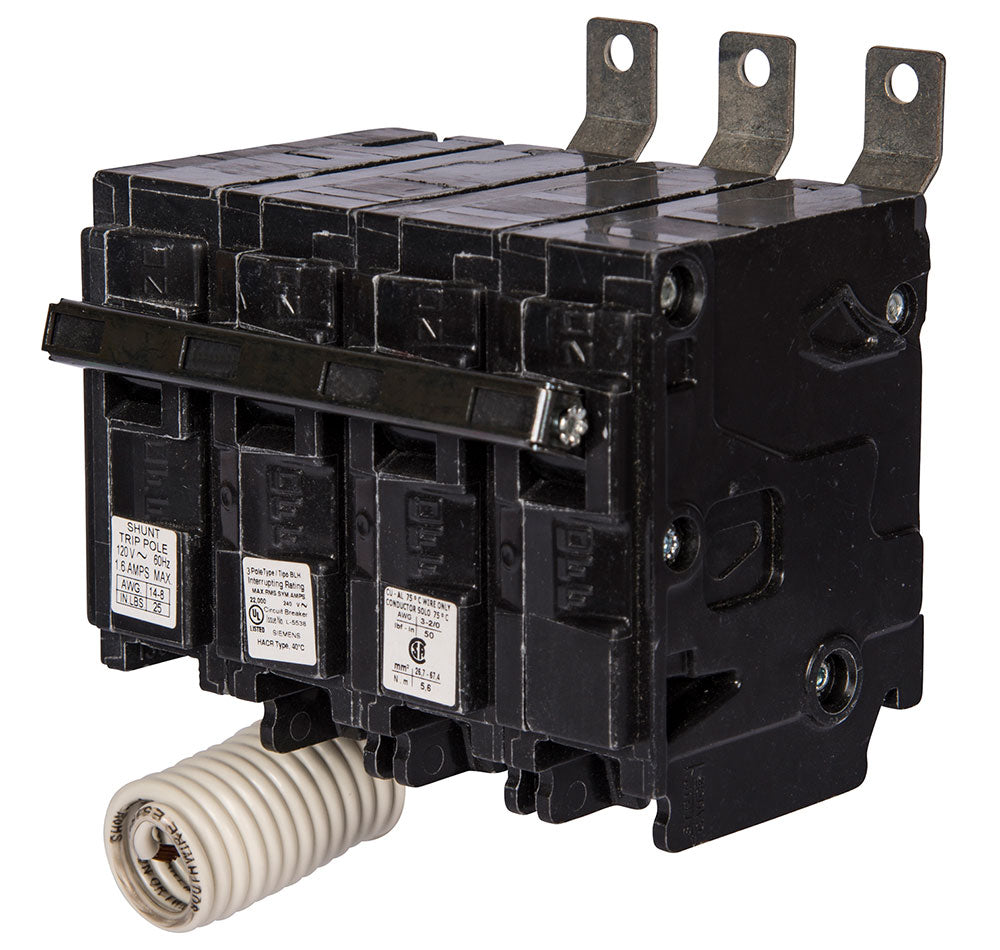

Siemens B34000S01 - Molded Case Circuit Breaker 40A 3P (240V, 10kA)
Siemens B34000S01 - Molded Case Circuit Breaker 40A 3P (240V, 10kA)

Siemens B34000S01 - Molded Case Circuit Breaker 40A 3P (240V, 10kA)

Siemens
Price
Save $917.04
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B34000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 40A current rating and a 240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.563" x 4.00" x 3.122" and weighing 1.257 lb. This thermal magnetic shunt trip breaker is constructed for compliance with UL, CSA, HACR, and NOM standards, offering a 10kA interrupting capacity. Its design is typically applied in Siemens P1 panelboards for safeguarding motor and feeder circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Thermal Magnetic Protection with Shunt Trip
  • Voltage Rating: 240V AC
  • Current Rating: 40A
  • Frame Size: 125A/BL
  • Poles: 3
  • Connection: Bolt-on with Lug Terminal
  • AIC Rating: 10kA @ 240V
  • Phase: 3
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • MCM Size / Wire Range: Min. 8 AWG, Max. 4 AWG (Al) or 6 AWG (Cu)
  • Dimensions: 2.563" H x 4.00" W x 3.122" D
  • Weight: 1.257 lb
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268548
  • GTIN: 00783643268548
