Siemens B335H - 35A 3-Pole Circuit Breaker (22kA AIC, 240V)
Siemens B335H - 35A 3-Pole Circuit Breaker (22kA AIC, 240V)

Siemens B335H - 35A 3-Pole Circuit Breaker (22kA AIC, 240V)

Siemens
Price
Save $664.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

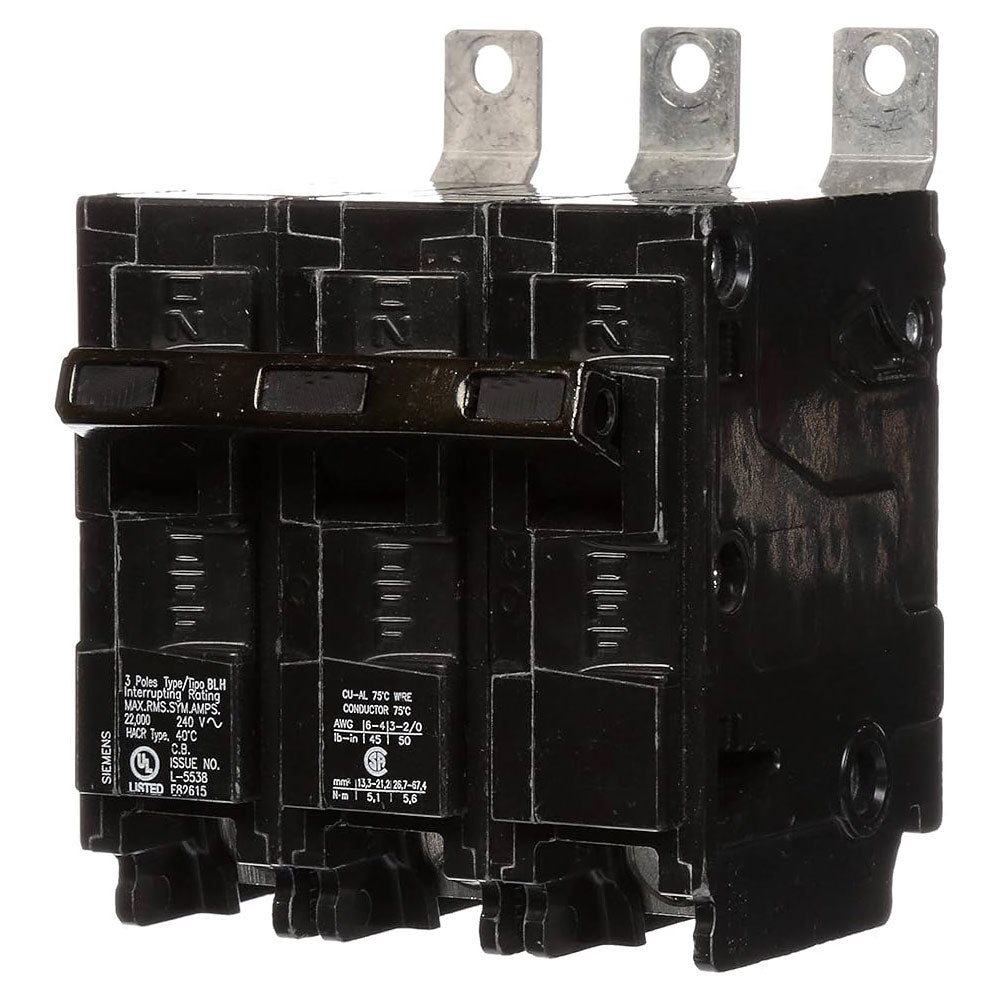

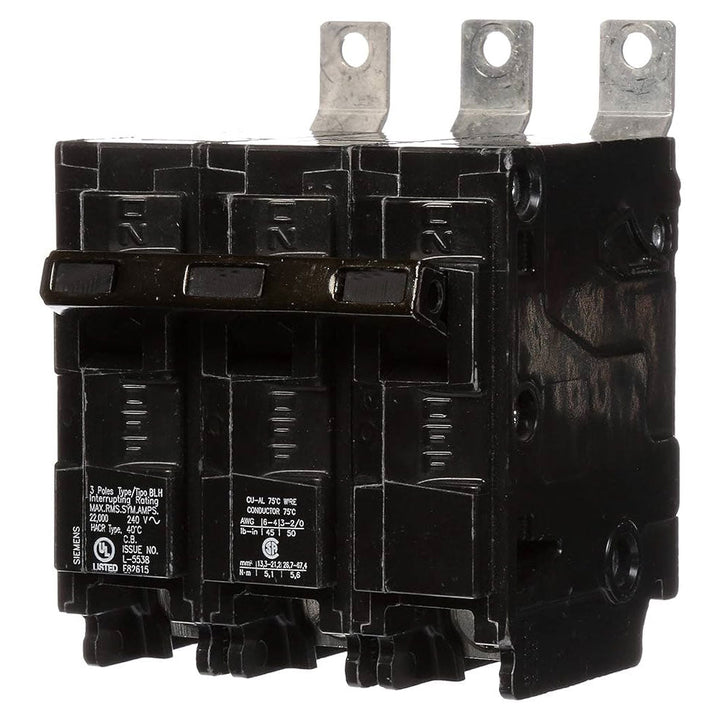

Siemens B335H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 35A current rating and a 240V voltage rating, housed within a compact 125A/BL frame measuring 2.563 x 3.00 x 3.122 inches and weighing 0.948 lb. This thermal-magnetic breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key industry standards for safety and performance. Its 22kA interrupting capacity at 240V and bolt-on lug connection make it suitable for installation in Siemens P1 panelboards within industrial and commercial environments.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, BLH Series
  • Voltage Rating: 240V AC
  • Current Rating: 35A
  • Dimensions: 2.563" W x 3.00" D x 3.122" H (65.1mm x 76.2mm x 79.3mm)
  • Weight: 0.948 lb
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Three-phase power distribution in industrial/commercial panelboards
  • Frame Size: 125A/BL
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size / Wire Range: Min. 8 AWG, Max. 4 AWG (Aluminum) or 6 AWG (Copper)
  • AIC Rating: 22kA @ 240V
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Functions: Long Time and Instantaneous Trip
  • Protection: Thermal Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Country of Origin: Mexico
  • Family: BL Series


Product Identification
  • UPC: 783643306332
  • GTIN: 00783643306332
