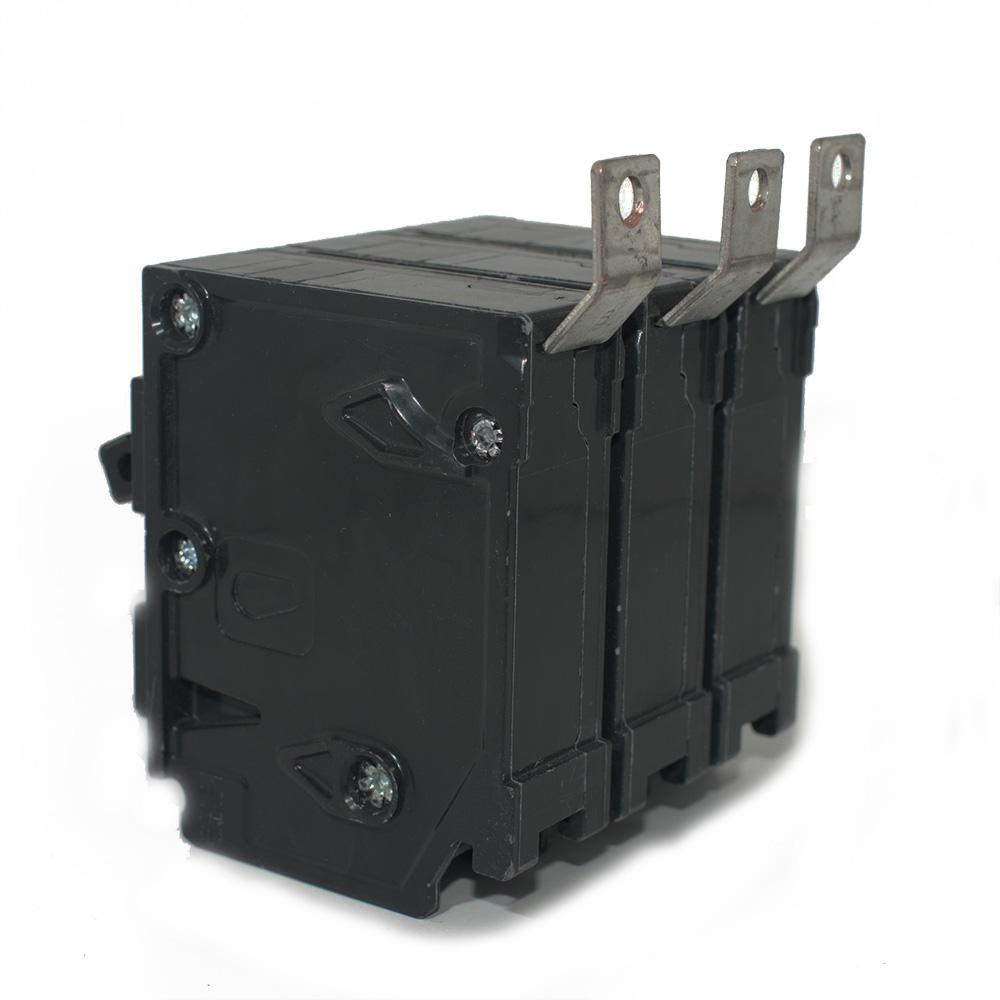

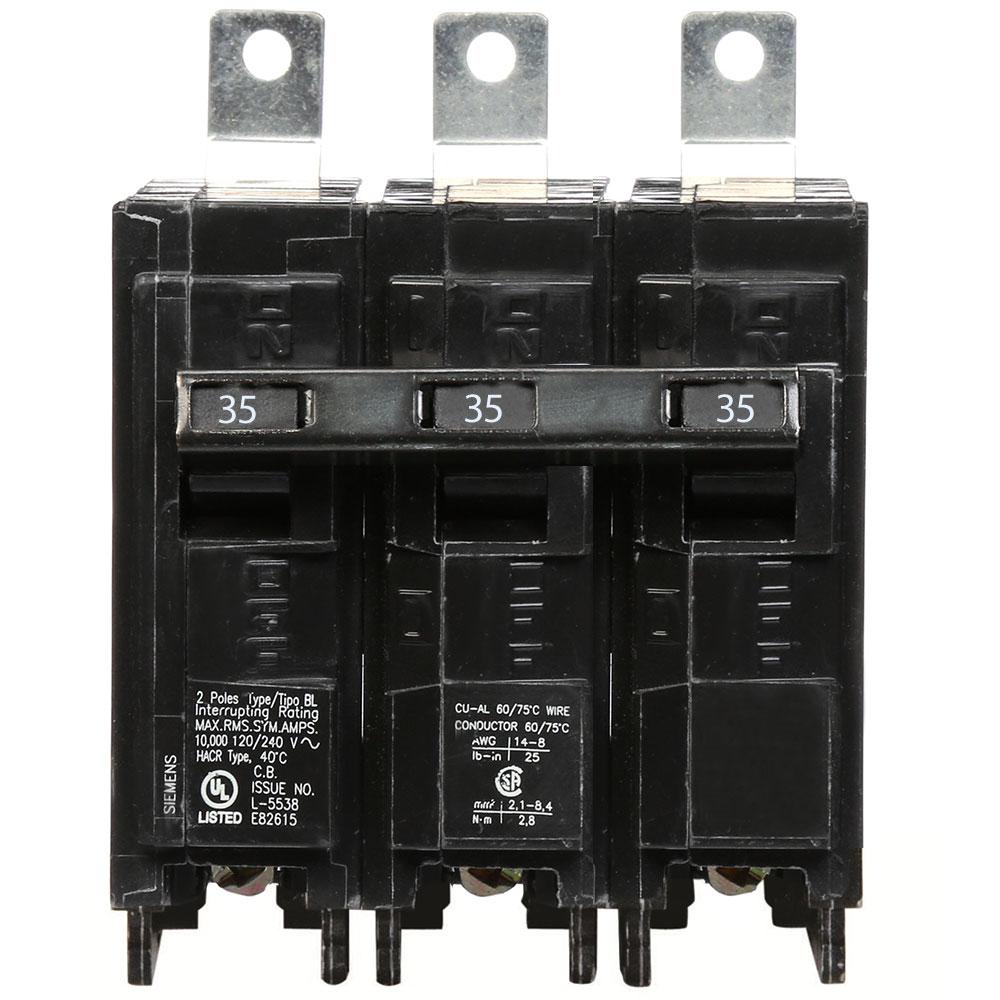

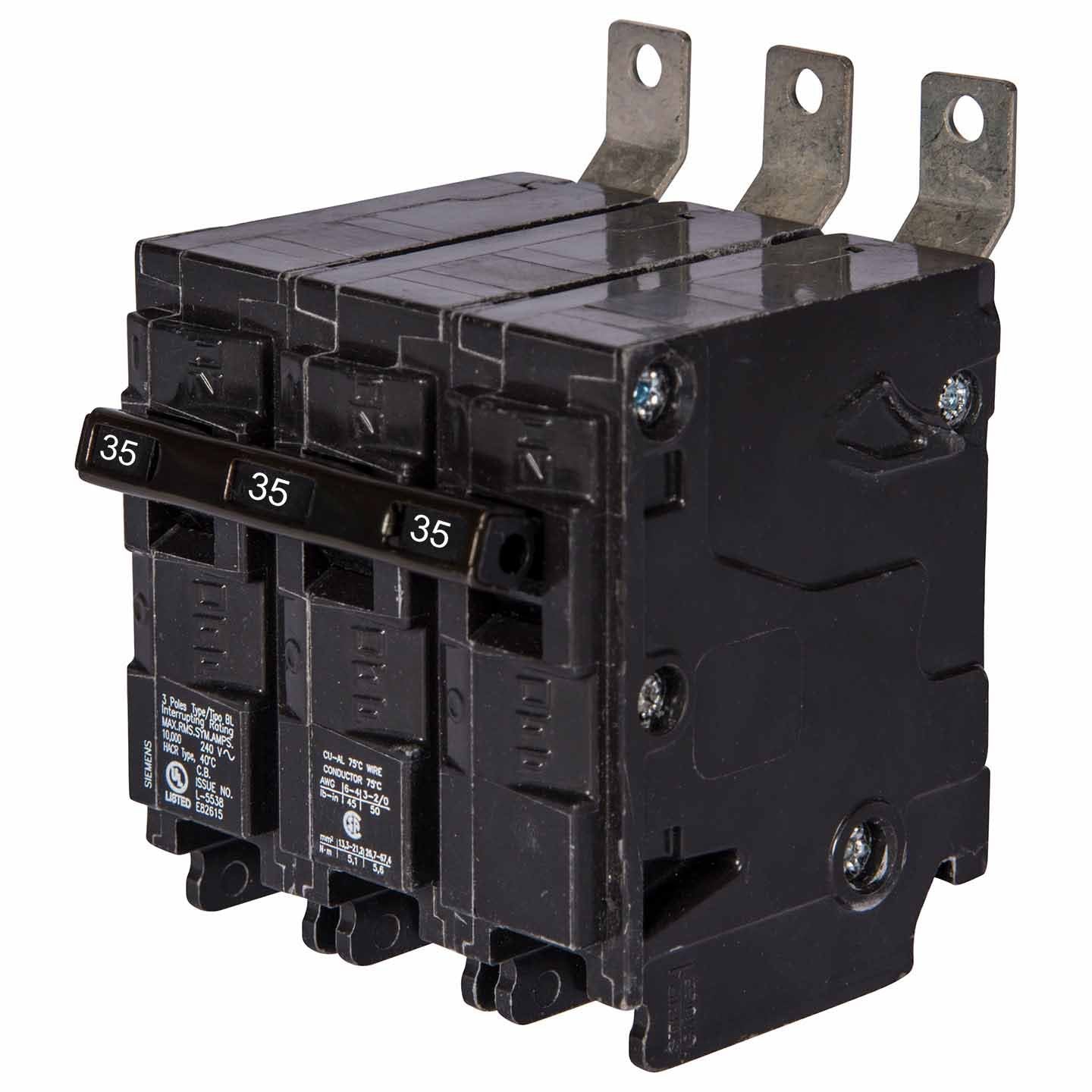

Siemens B335 - Molded Case Circuit Breaker 35A 3P (240V 10kA)
Siemens B335 - Molded Case Circuit Breaker 35A 3P (240V 10kA)
Siemens B335 - Molded Case Circuit Breaker 35A 3P (240V 10kA)
Siemens B335 - Molded Case Circuit Breaker 35A 3P (240V 10kA)
Siemens B335 - Molded Case Circuit Breaker 35A 3P (240V 10kA)
Siemens B335 - Molded Case Circuit Breaker 35A 3P (240V 10kA)

Siemens B335 - Molded Case Circuit Breaker 35A 3P (240V 10kA)

Siemens
Price
Save $641.79
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B335 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 35A current rating and a 240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.563" x 3.00" x 3.122" and weighing 0.948 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous protection, is CSA, HACR, NOM, and UL listed, and is typically applied in Siemens P1 panelboards for commercial and light industrial power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard, BL Series
  • Voltage Rating: 240V AC
  • Current Rating: 35A
  • Frame Size: 125A/BL
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Functions: Long Time and Instantaneous Trip
  • Phase: 3
  • Dimensions: 2.563" x 3.00" x 3.122" (65.1mm x 76.2mm x 79.3mm)
  • Weight: 0.948 lb (0.43 kg)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • MCM Size / Wire Range: Min. 8 AWG, Max. 2 AWG (Aluminum) or 4 AWG (Copper)
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Protection: Thermal Magnetic
  • Breaker Type: Standard
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263727
  • GTIN: 00783643263727
