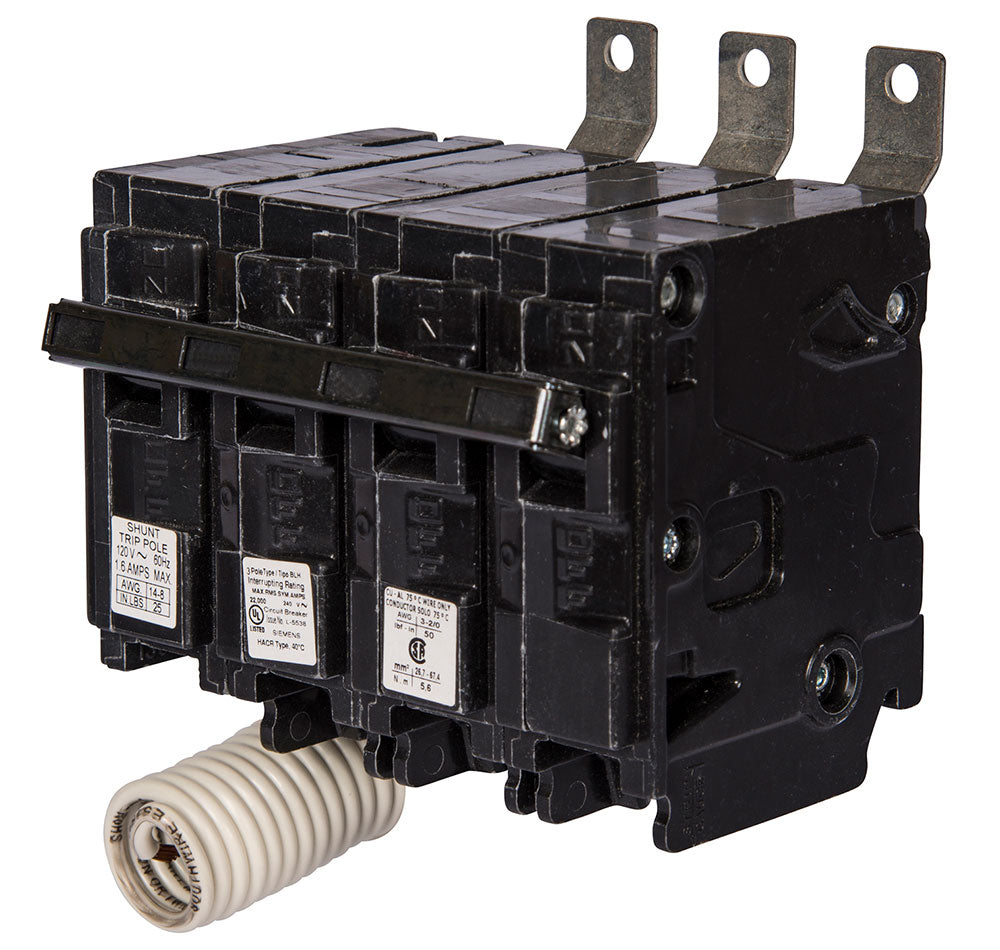

Siemens B33000S01 - Molded Case Breaker 30A 3P (10kA AIC)
Siemens B33000S01 - Molded Case Breaker 30A 3P (10kA AIC)

Siemens B33000S01 - Molded Case Breaker 30A 3P (10kA AIC)

Siemens
Price
Save $917.04
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B33000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 30A current rating and a 240V AC voltage rating, housed within a compact 125A frame with dimensions of 4.5 in x 3.8 in x 3.8 in and a weight of 1.06 lb. The breaker utilizes a thermal-magnetic trip mechanism for LI (Long-time and Instantaneous) protection and a bolt-on connection with lug terminals, accepting wire sizes from 6 AWG to 12 AWG (Al) or 14 AWG (Cu). It is CSA, HACR, NOM, and UL listed for compliance and is engineered for integration into Siemens P1 panelboards, offering a 10kA interrupting capacity at 240V for robust system safety.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Shunt Trip
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Frame Size: 125A/BL
  • Poles: 3
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time & Instantaneous)
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Panel Type: Siemens P1 Panelboards
  • Dimensions: 4.5 in x 3.8 in x 3.8 in
  • Weight: 1.06 lb
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268524
  • GTIN: 00783643268524
